Senzorová jednotka Axis 0913-001 interiérová kamera 1920x1080

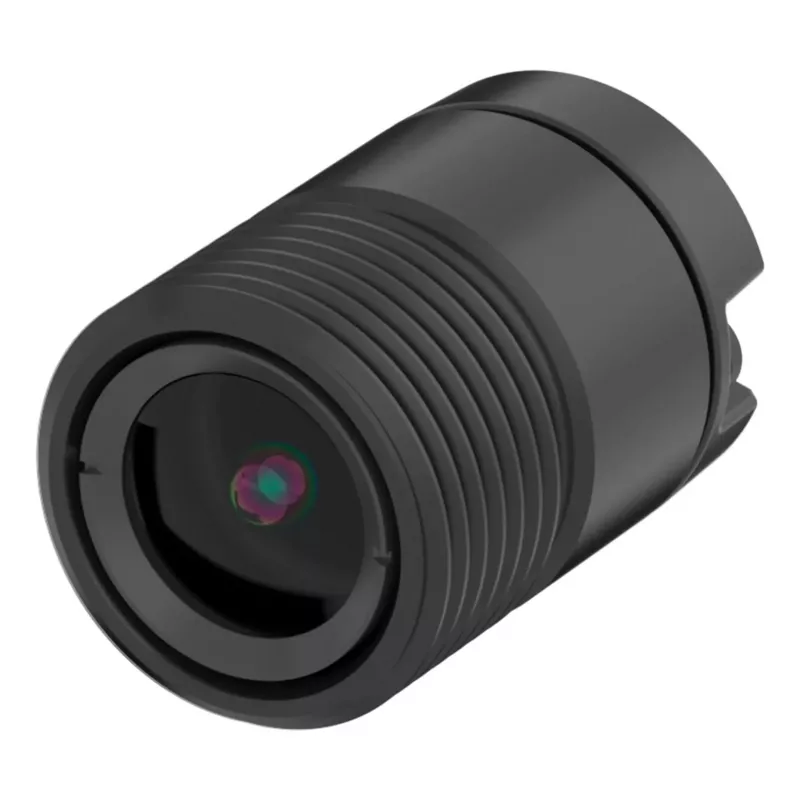

AXIS FA1105 is a compact sensor unit designed for discreet indoor surveillance. Intended for integration with an AXIS FA Main Unit, the sensor delivers 1080p (1920 x 1080) video from a CMOS sensor in a small 2 cm-diameter housing. With a wide 111° horizontal field of view and a sleek black finish, the unit fits flush into walls, ceilings or metal panels so only the lens opening is visible. The package includes a mounting bracket and an 8 m (26 ft) cable for connection to the main unit.

Advantages

The AXIS FA1105 offers high-resolution 1080p imaging in a very small and lightweight form factor (0.016 kg), enabling installation in tight or concealed locations. Forensic WDR tuned for motion improves image detail across scenes with varying lighting. Its wide 111° horizontal field of view captures broad indoor areas while the included 8 m cable and mounting bracket simplify integration with AXIS FA Main Units.

Suitable for

• Discreet indoor surveillance in retail stores
• Bank interiors and teller areas
• Integration inside machines or kiosks

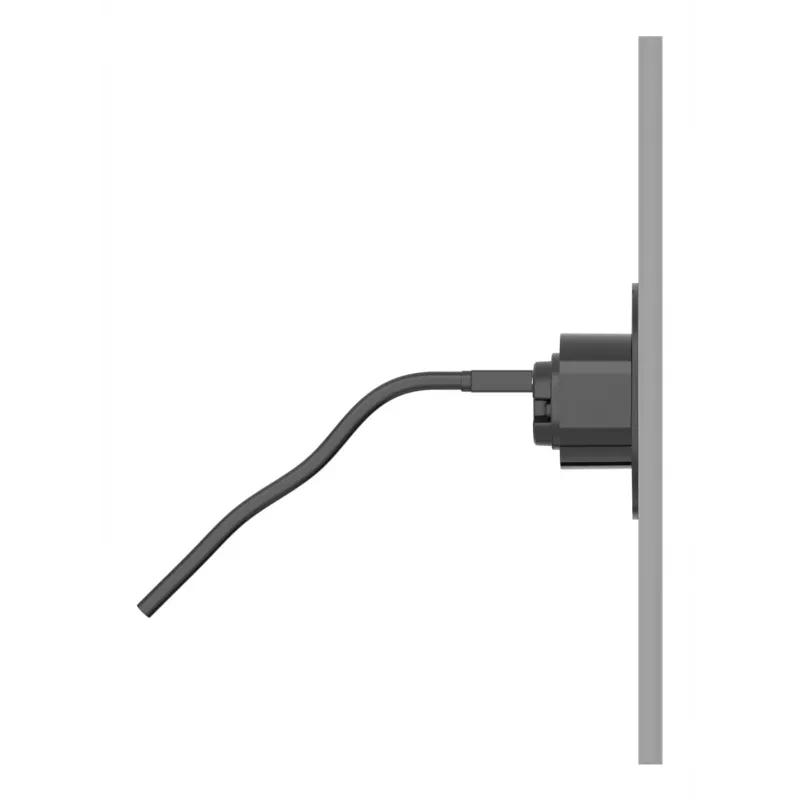

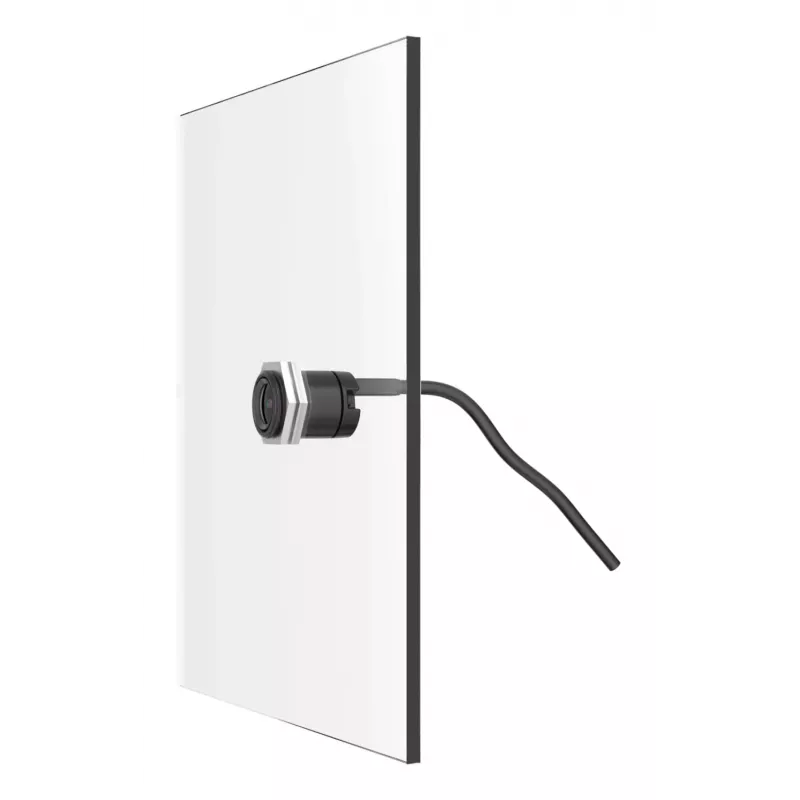

• Flush-mounted installations in ceilings, walls or metal panels

Key specifications

• Model: AXIS FA1105 (MPN 0913-001, EAN 7331021052307)
• Sensor type: CMOS
• Resolution: 1920 x 1080 (1080p)
• Horizontal field of view: 111°
• Placement: Indoor
• Colour: Black
• Weight: 0.016 kg

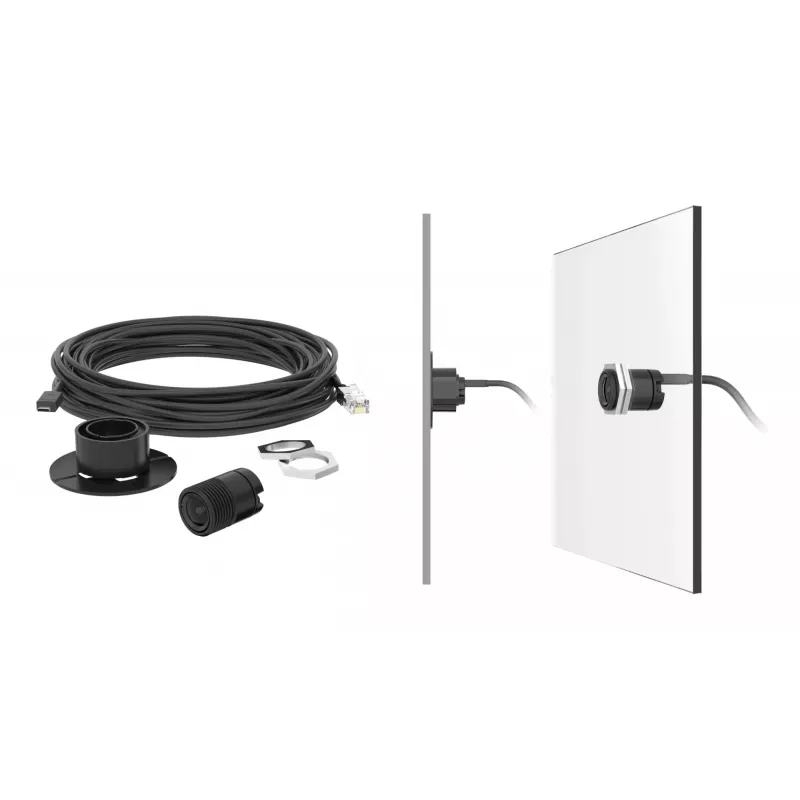

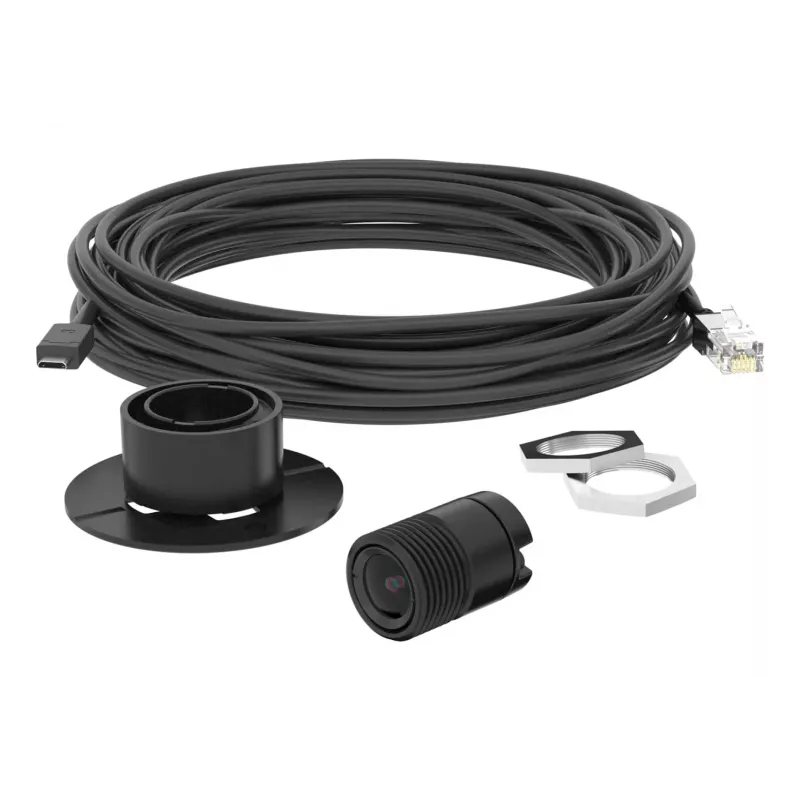

• Includes: mounting bracket and 8 m (26 ft) cable

How to use

Install the AXIS FA1105 sensor unit together with a compatible AXIS FA Main Unit. Prepare a small flush hole in the chosen wall, ceiling or metal panel and mount the sensor so that only the lens opening is visible. Connect the sensor to the FA Main Unit using the supplied 8 m cable and secure the unit with the included mounting bracket. Configure the main unit for 1080p output and enable Forensic WDR as needed to optimise motion-tuned wide dynamic range.

Recommendations

Mount the sensor at a height and angle that capture the intended area while avoiding direct light sources in the field of view; use the 8 m cable length for flexible placement relative to the FA Main Unit.
