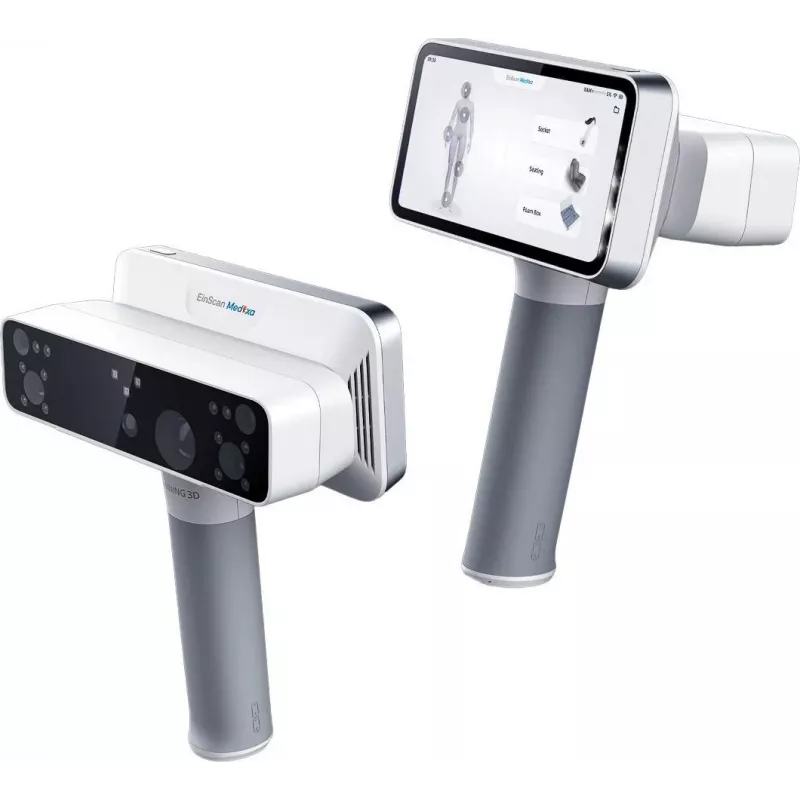

SHINING 3D EinScan Medixa bezdrôtový 3D skener pre ortopédiu a protetiku C011262

The EinScan Medixa redefines handheld 3D scanning for orthopedics and prosthetics by combining infrared structured light with wireless freedom. Unlike stationary desktop scanners, it moves around the patient, capturing accurate geometry without cables or external tracking.

Highlights

• Infrared VCSEL structured light for safe, speckle-free scanning
• Wireless operation via Wi-Fi 6 with up to 6 hours battery life
• High accuracy up to 0.1 mm and scan speed up to 15 fps
• Automatic calibration and wide depth of field (100–400 mm)
• Outputs to OBJ, STL, PLY, ASC, 3MF, and P3 formats

In daily use

Designed for clinical environments, the Medixa scans objects from 50 mm to 1000 mm with a point distance between 0.25 mm and 2 mm. It pairs with EinScan Medixa Software on Windows 10/11 (64-bit) for streamlined workflows in orthotics, prosthetics, custom footwear, and body scanning.

Full specifications

• Scan Technology: Infrared Structured Light (VCSEL)
• Light Source: Infrared VCSEL
• Accuracy: Up to 0.1 mm
• Scan Speed: Up to 15 fps
• Point Distance: 0.25 mm – 2 mm
• Depth of Field: 100 mm – 400 mm
• Working Distance: 100 mm – 400 mm
• Wireless Connectivity: Wi-Fi 6 (802.11ax)
• Battery Life: Up to 6 hours
• Data Output Formats: OBJ, STL, PLY, ASC, 3MF, P3
• Software: EinScan Medixa Software
• Operating System Compatibility: Windows 10/11 (64-bit)
• Calibration: Automatic Calibration
• Recommended Object Size: 50 mm to 1000 mm
• Color Texture Scan: No (Monochrome geometry)
• Scan Modes: Handheld Rapid Scan

Final note

With its wireless design and medical-grade accuracy, the EinScan Medixa is a practical tool for professionals who need reliable 3D data at the point of care.
