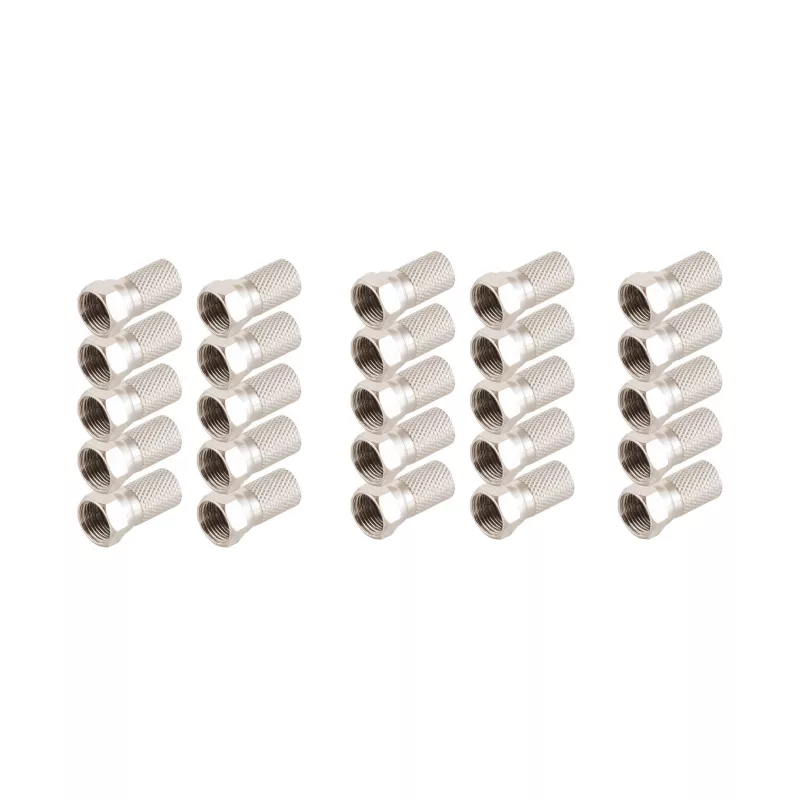

SHIVERPEAKS F konektor 6,7 mm s veľkou maticou, balenie 25 ks (BS85009-A-SET25)

RF coaxial F-connector with a large nut for secure, tool-free installation on 6.7 mm coaxial cables. The screw-on design ensures a reliable connection for satellite, cable TV, and DVB-T/T2 signals.

Advantages

Nickel-plated brass construction provides corrosion resistance and durability. The large nut allows easy hand-tightening without special tools, and the 75 Ohm impedance supports frequencies up to 2400 MHz for clear digital and analog signals.

Suitable for

• Satellite TV installations
• Cable TV and DVB-T/T2 reception
• Radio antenna connections
• Coaxial cables with 6.7 mm diameter (e.g., RG6)

Key specifications

• Connector type: F-connector, male
• Compatible cable diameter: 6.7 mm
• Impedance: 75 Ohm
• Frequency range: 0 - 2400 MHz
• Material: Nickel-plated brass
• Pack size: 25 pieces

Recommendations

For best results, ensure the cable is cut cleanly and the connector is fully screwed onto the cable until snug. Avoid overtightening to prevent damage to the cable.
