Siemens SIMATIC ET 200M PROFIBUS DP rozhranie modul 6ES7158-0AD01-0XA0

With data transfer rates up to 12 Mbit/s, this Siemens interface module connects the SIMATIC ET 200M distributed I/O system to a PROFIBUS DP network, supporting up to 12 S7-300 modules for flexible automation.

Overview

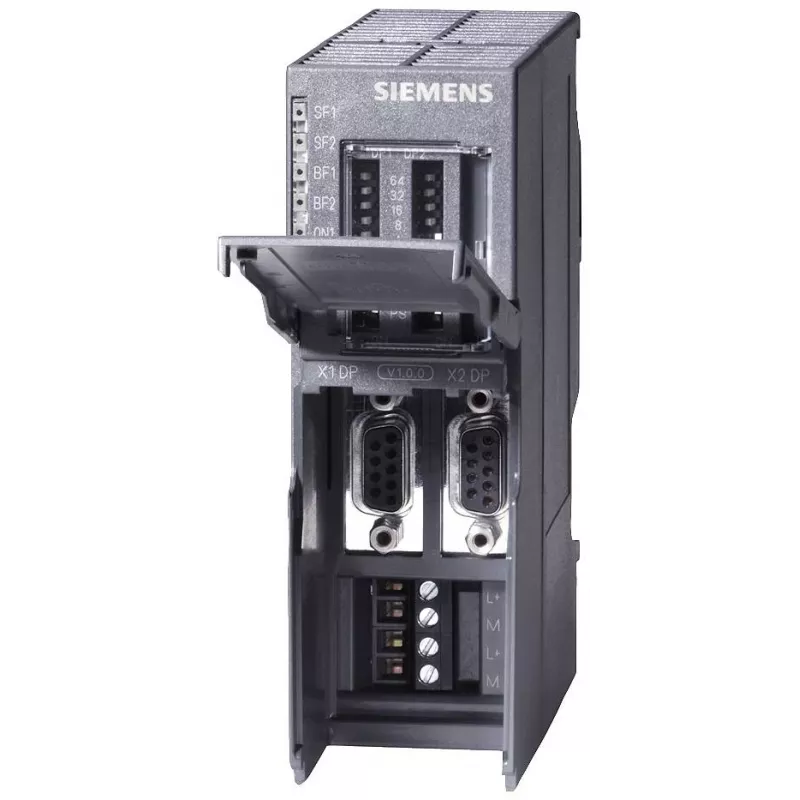

The Siemens 6ES7158-0AD01-0XA0 is a PROFIBUS DP interface module for the SIMATIC ET 200M distributed I/O system. It serves as the communication link between the PROFIBUS DP fieldbus and the S7-300 backplane bus, enabling decentralized peripheral integration in industrial automation environments.

What stands out

• Supports data transfer rates from 9.6 kbit/s to 12 Mbit/s, adapting to various network speeds.
• Connects up to 12 S7-300 modules, providing scalability for diverse I/O configurations.
• Electrical isolation between PROFIBUS DP and backplane bus enhances system reliability.
• LED status indicators (SF, BF, DP, DC5V) offer quick diagnostics at a glance.
• Configured via SIMATIC STEP 7, ensuring seamless integration into existing Siemens automation projects.

Technical details

• System Compatibility: SIMATIC ET 200M
• Communication Protocol: PROFIBUS DP
• Function: Interface Module for Distributed I/O
• Max. I/O Modules Supported: 12 (S7-300 modules)
• Data Transfer Rate: 9.6 kbit/s to 12 Mbit/s
• Power Supply: 24 V DC
• Current Consumption (typ.): 300 mA
• Bus Connection: PROFIBUS DP (9-pin D-sub)
• Backplane Bus: S7-300 bus
• Mounting Type: DIN rail
• Operating Temperature: 0 to 60 °C
• Protection Class: IP20
• Diagnostics Function: Yes
• Configuration Software: SIMATIC STEP 7
• Electrical Isolation: Yes (PROFIBUS DP to backplane bus)
• Status Indicators: LEDs (SF, BF, DP, DC5V)

Our verdict

A robust and reliable interface module for ET 200M distributed I/O systems, offering high-speed PROFIBUS DP communication and straightforward diagnostics for industrial applications.
