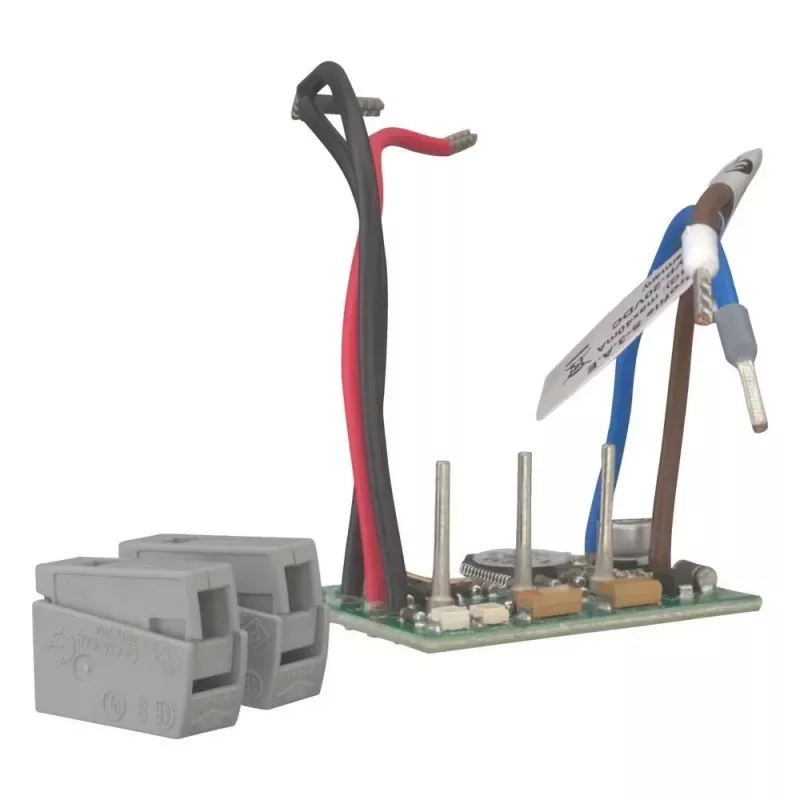

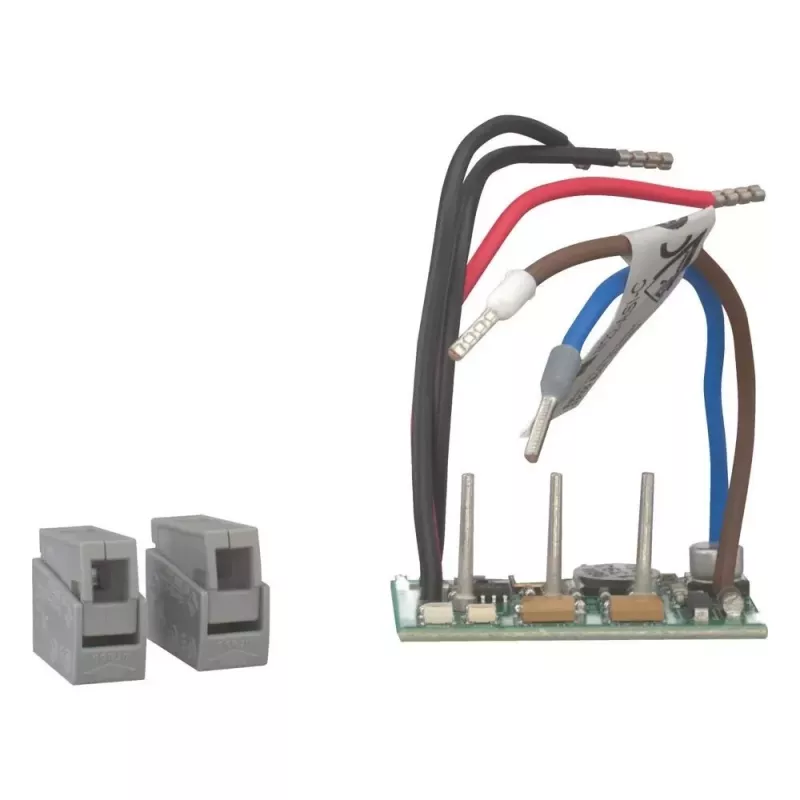

Eaton RMQ-M1C-AS AS-Interface pripojovací modul pre RMQ22 riadiace jednotky 032314

For control panels that rely on the RMQ22 series, this AS-Interface connection module eliminates the need for complex parallel wiring. The RMQ-M1C-AS integrates two digital inputs and one digital output directly onto the AS-i bus, reducing installation time and potential wiring errors. Its rear-mounting design snaps onto the back of RMQ22 operators, creating a compact and tidy solution for industrial automation systems.

Highlights

• AS-Interface standard slave with profile S-0.A.0 for broad compatibility
• Two digital inputs and one digital output for flexible signal handling
• Integrated connector for RMQ22 devices – no additional adapters needed
• LED indicators for AS-i communication and I/O status at a glance
• IP20 protection, suitable for installation inside control cabinets

In daily use

Mount the module directly onto the rear of an RMQ22 pushbutton, selector switch, or indicator light. The screw terminals provide a secure connection to the AS-i bus, while the module draws its power directly from the bus (26.5–31.6 V DC). With a maximum current consumption of only 40 mA (without load), it adds minimal load to the network. The operating temperature range of -25°C to +70°C ensures reliable performance in demanding environments. The high-grade plastic housing is robust and resistant to mechanical stress, making it a dependable choice for machine building and process control applications.

Full specifications

• Brand: Eaton
• Model: RMQ-M1C-AS
• MPN: 032314
• EAN: 4015080323143
• Product Type: AS-Interface Connection Module
• Series Compatibility: Eaton RMQ22 Control Devices
• Bus System: AS-Interface (AS-i)
• AS-i Slave Type: Standard Slave
• AS-i Profile: S-0.A.0
• Number of Digital Inputs: 2
• Number of Digital Outputs: 1
• Supply Voltage: 26.5 - 31.6 V DC (via AS-i bus)
• Current Consumption (max.): 40 mA (without load)
• AS-i Connection Type: Screw Terminals
• Device Connection Type: Integrated Connector for RMQ22
• Protection Degree (IEC 60529): IP20
• Operating Temperature: -25°C to +70°C
• Mounting Type: Rear mounting for RMQ22 operator
• Housing Material: High-grade Plastic
• Approvals: CE, cULus
• Status Indicators: LEDs for AS-i communication and I/O status
• Application: Industrial Automation, Machine Building, Process Control

Final note

The Eaton RMQ-M1C-AS is a reliable and efficient way to connect RMQ22 control devices to an AS-i network, simplifying installation and reducing wiring costs.
