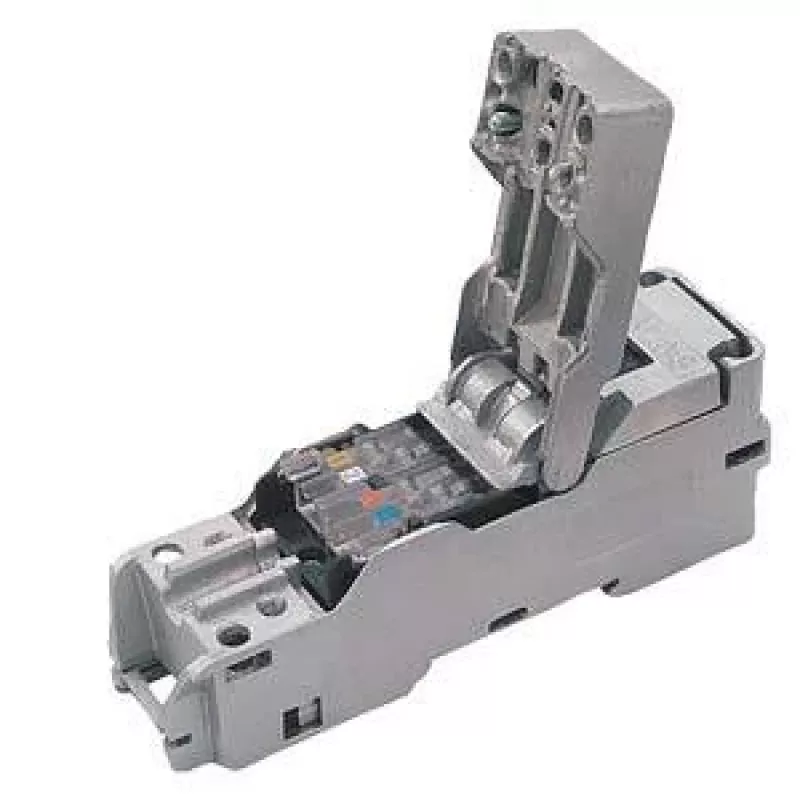

Siemens Simatic Net IE FC Outlet RJ45 6GK1901-1FC00 (6GK19011FC000AA0)

The Siemens Simatic Net IE FC Outlet RJ45 provides a robust FastConnect termination point for industrial Ethernet networks. Unlike standard RJ45 jacks, this outlet is engineered for direct insulation displacement connection of Siemens IE FC TP cables, eliminating the need for special tools and ensuring reliable, vibration-resistant links in demanding automation environments.

Highlights

• FastConnect (FC) insulation displacement technology for quick, tool-free installation
• Shielded metal housing for electromagnetic compatibility and mechanical robustness
• Supports data rates up to 100 Mbit/s (Fast Ethernet)
• Compact design for panel or wall mounting
• Compatible with Siemens IE FC TP cable (4x2, AWG22-24)

In daily use

This outlet is intended for fixed installation in control cabinets or on machine frames. The IDC contacts accept solid or stranded conductors from 4.5 mm to 8 mm outer cable diameter, and the metal housing provides a secure ground connection. With over 500 mating cycles, it withstands repeated plugging in maintenance scenarios.

Full specifications

• Connector type: RJ45, 8-pole, shielded
• Transmission rate: 10/100 Mbit/s
• Termination: Insulation displacement (IDC)
• Mounting: Panel/wall, screw fixing
• Housing material: Zinc die-cast
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Relative humidity: 5% to 95% non-condensing
• Mating cycles: >500
• Colour: Silver/metallic

Final note

For use with Siemens IE FC TP cable only; other cable types may not achieve reliable IDC termination.
