Sieťová zásuvka Digitus CAT 6A trieda EA DN-9007-S-1

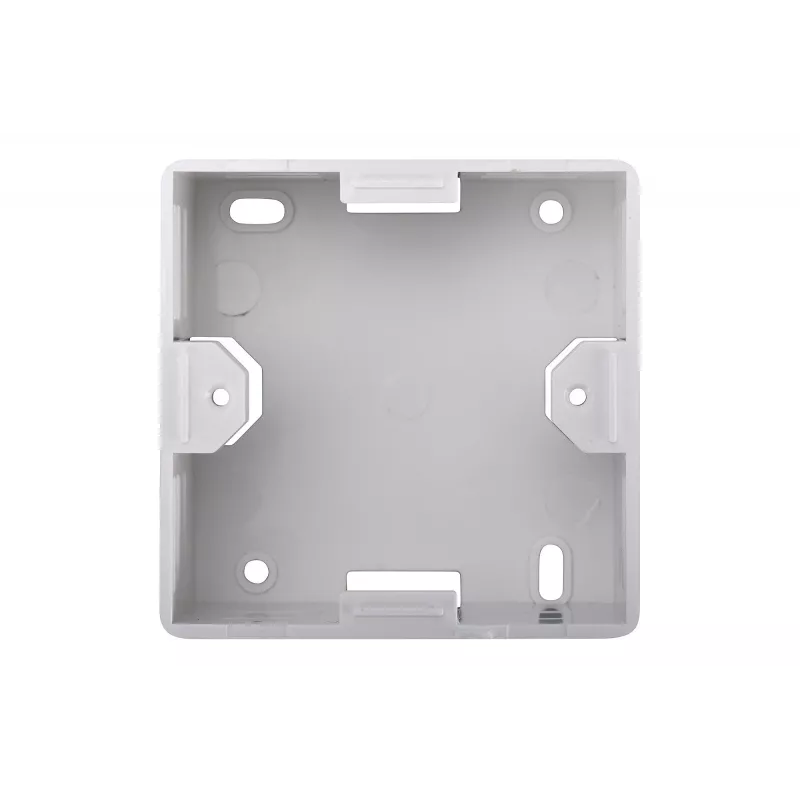

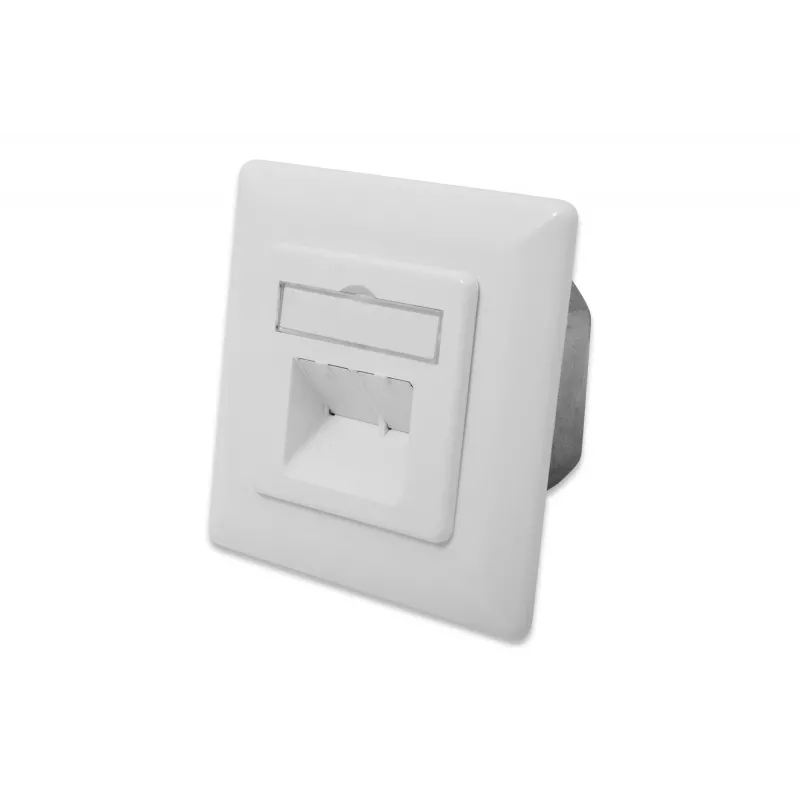

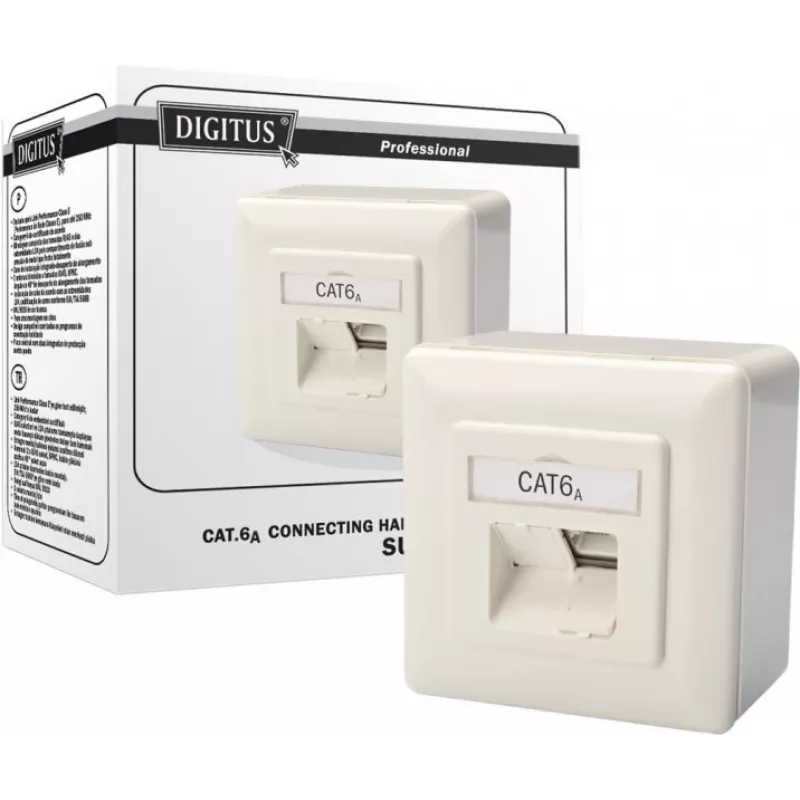

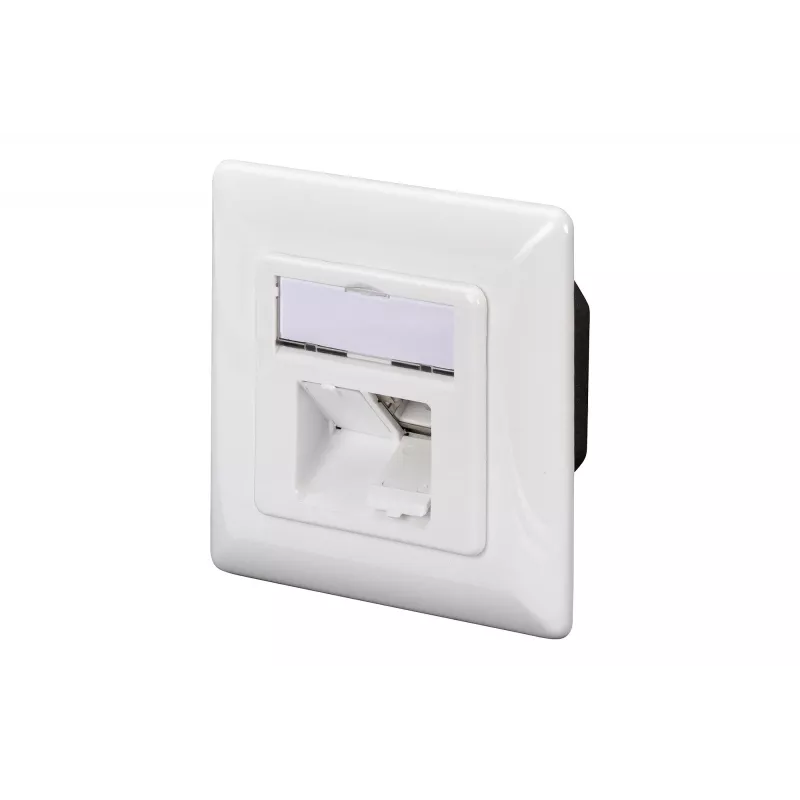

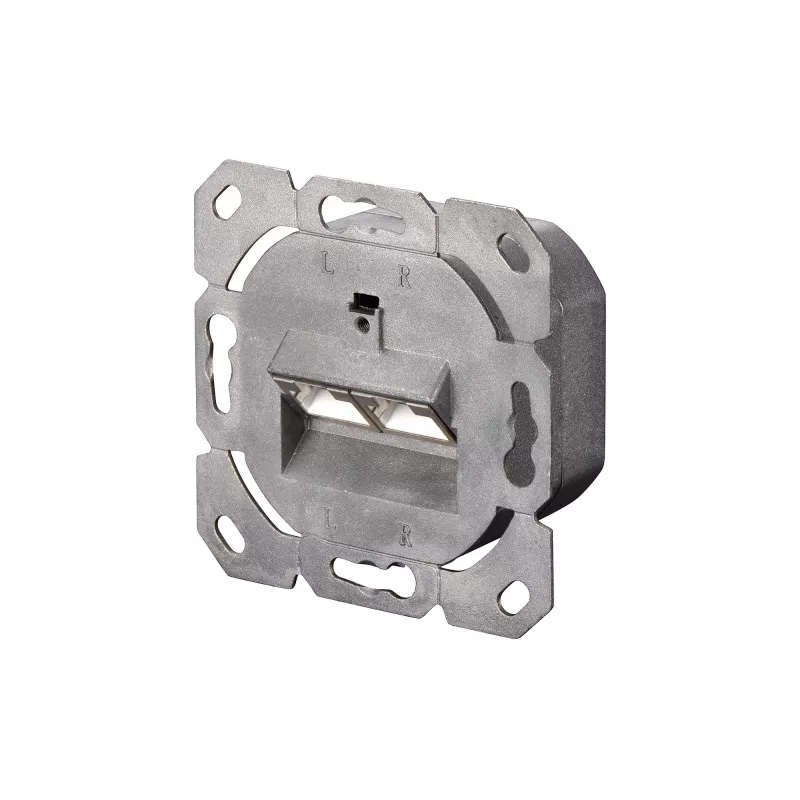

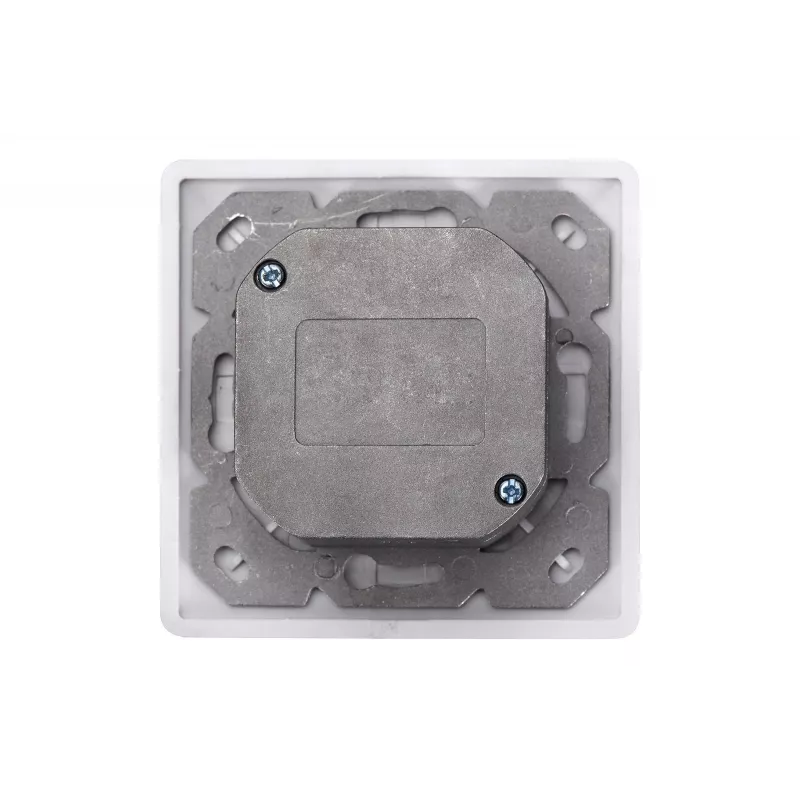

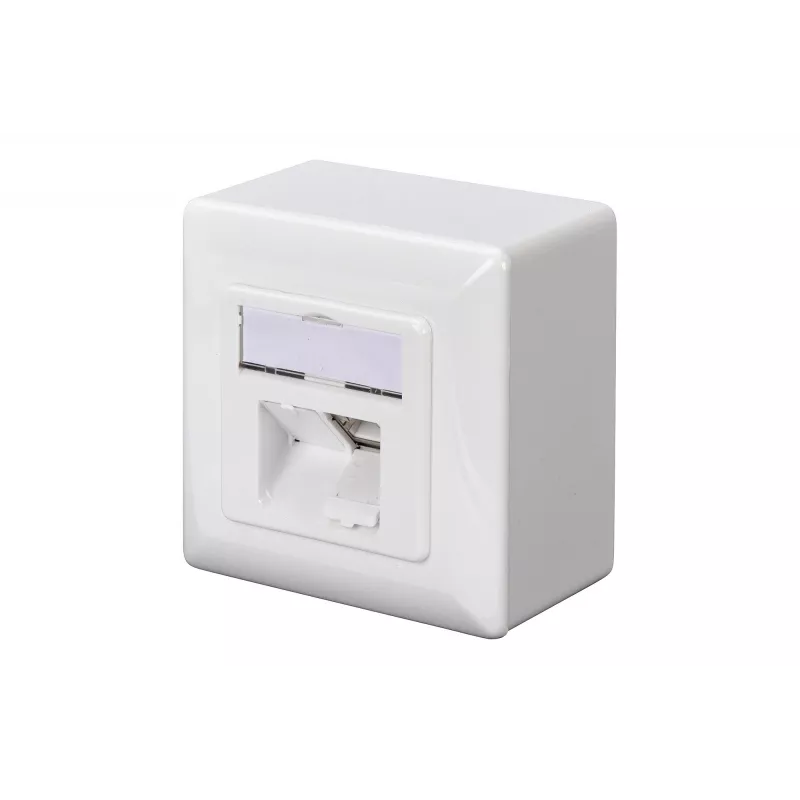

The Digitus CAT 6A Class EA DN-9007-S-1 network outlet is a shielded surface-mount socket designed for structured cabling and high-speed Ethernet. It provides two shielded RJ45 ports in a compact ABS housing (80 x 38.5 x 80 mm) and is compatible with common switch programme designs. The outlet is certificated to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and supports installation using LSA strips with color coding according to EIA/TIA 568 A & B.

Advantages

The outlet offers shielded connections for reduced electromagnetic interference and supports CAT 6A performance for high data rates. Its design matches common switch systems for easy visual integration and the LSA strip termination enables reliable, tool-friendly cable installation. The compact ABS enclosure ensures durable, unobtrusive surface mounting and the product is supplied in white.

Suitable for

• Structured cabling in offices and commercial buildings
• High-speed Ethernet applications up to CAT 6A/Class EA
• Surface-mounted installations where compact, durable outlets are required
• Environments requiring shielded RJ45 connections

Key specifications

• Manufacturer: DIGITUS
• Model: DN-9007-S-1
• Standard: CAT 6A (Class EA), ANSI/TIA 568, ISO/IEC 11801, EN 50173
• Ports: 2 × shielded RJ45 sockets

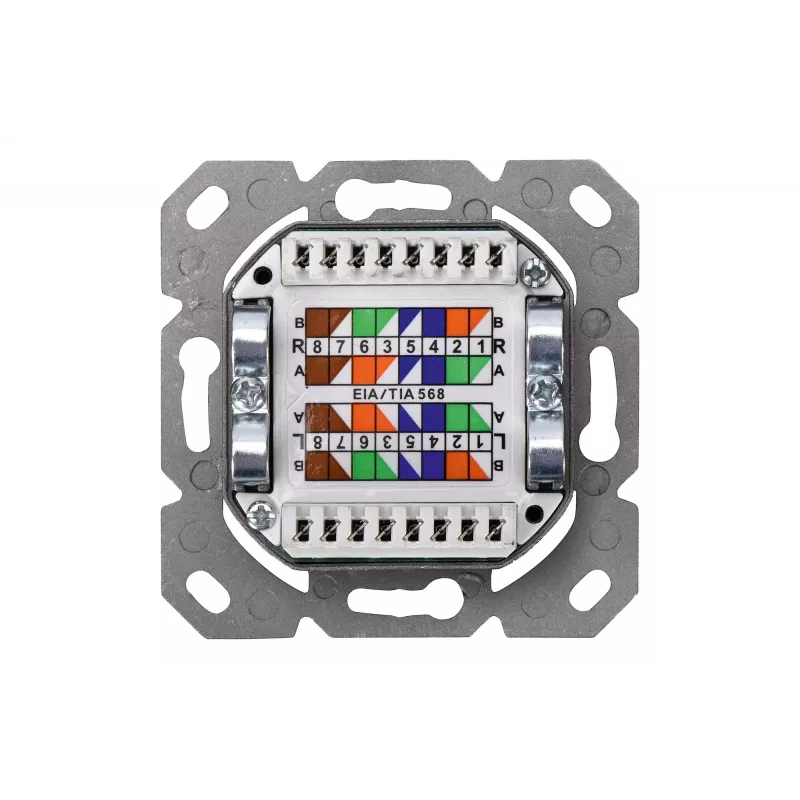

• Termination: LSA strips, color coded EIA/TIA 568 A & B
• Housing material: ABS synthetics
• Colour: White
• Dimensions: 80 mm × 38.5 mm × 80 mm
• MPN: DN-9007-S-1
• EAN: 4016032320203

How to use

Mount the surface outlet at the chosen location and route network cables to the housing. Strip cable jackets and terminate each conductor pair on the LSA strips following the color code for EIA/TIA 568 A or 568 B. Verify that the shield is properly connected to maintain the outlet's screened performance, then secure the cover and test each RJ45 port with appropriate network test equipment.

Recommendations

For reliable CAT 6A performance, use shielded CAT 6A cabling and ensure correct termination of the shield. Test installed links after termination to confirm compliance with required category performance.
