Sieťový kábel EFB Elektronik K8051.30 RJ-45 Cat6a 30 m sivý

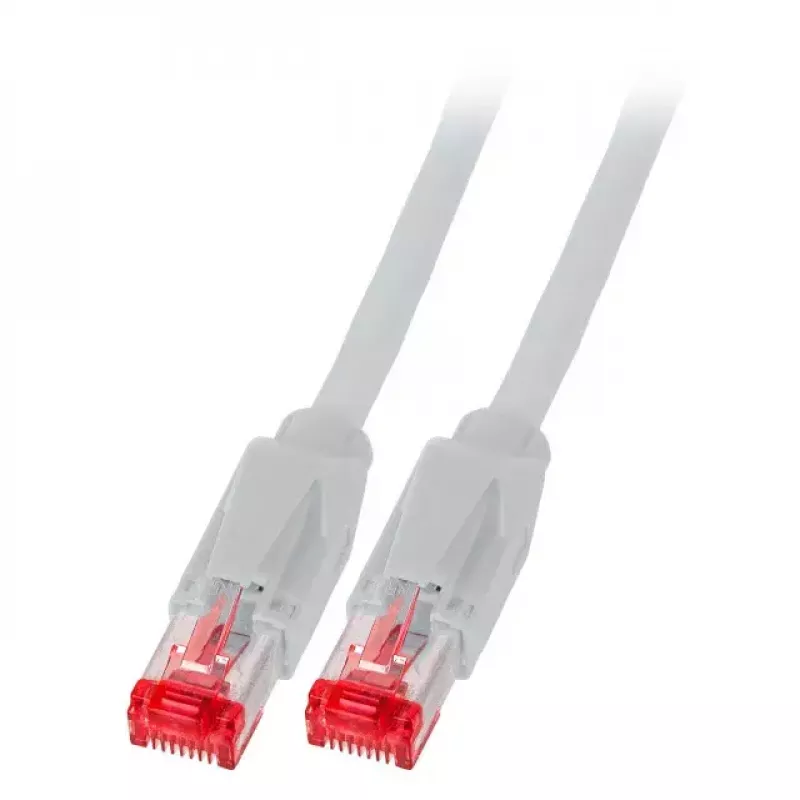

The EFB Elektronik K8051.30 is a 30 m Cat6A networking cable with RJ-45 connectors designed for 10 Gigabit Ethernet. It uses a shielded S/FTP (S/ STP) construction with 4 pairs of AWG27/7 PiMF conductors, supports up to 500 MHz and is TIA/EIA 568B coded. The cable meets flame retardant and low-smoke halogen-free standards and includes a mounted strain relief boot with latch protection. Class EA link certification by GHMT confirms its performance for high-speed data transmission.

Advantages

This Cat6A patch cable provides 10 Gigabit Ethernet capability with reduced electromagnetic interference thanks to S/FTP shielding and Hirose TM21 RJ45 STP plugs. Its low-smoke, halogen-free LSZH jacket and compliance with flame retardant standards improve safety for indoor installations. The mounted strain relief boot with latch protection increases connector durability during repeated use.

Suitable for

• High-speed LAN backbones and server connections
• Data center and network cabinet patching
• Office networks requiring shielded cabling to reduce interference
• Environments where low-smoke, halogen-free cables are preferred

Key specifications

• Length: 30 m
• Standard: Cat6A / Class EA, 500 MHz
• Ethernet: 10 Gigabit Ethernet
• Conductor: 4 x 2 x AWG27/7 PiMF
• Configuration: S/FTP (shielded foil with overall braid), TIA/EIA 568B coded
• Connectors: 2 x Hirose TM21 RJ45 plug STP (IEC 60603-7-5)
• Jacket: LSZH (low smoke, halogen-free), Ø = 5.9 mm
• Fire and smoke standards: IEC 60332-1, IEC 60754-2, IEC 61034
• Additional: Mounted strain relief boot with latch protection; Class EA link certified by GHMT

How to use

Connect each RJ-45 plug to the corresponding network ports on devices such as switches, routers or network interface cards. Ensure that ports support the desired network speed and that both ends are securely latched. For permanent installations, route the cable avoiding sharp bends and maintain appropriate bend radius. Verify link speed and stability after connection.

Recommendations

The cable is intended for indoor networking use where shielded Cat6A performance and low-smoke, halogen-free materials are required. Avoid outdoor exposure and direct sunlight; do not exceed manufacturer-recommended pull tensions during installation to maintain cable integrity and certification performance.
