Sieťový kábel Lanview LV-6AFTP-FLEX-ANG-0025W-S — tienený FTP, zahnutý konektor, 0,25 m

Lanview LV-6AFTP-FLEX-ANG-0025W-S is a shielded FTP Cat6A networking cable designed for short connections in confined spaces. With a 0.25 m length and an angled, flexible plug that can be positioned up to 90° in all four directions, this cable fits closely spaced ports, patch panels and network switches without stressing the connector or jacket. The cable uses pairwise shielding to reduce electromagnetic interference and is made with a slim, halogen-free (LSZH) jacket for installations that require lower smoke and toxic gas emissions.

Advantages

The slim AWG 30 conductor profile and a bending radius of 4x outer diameter allow tight routing and neat cable management behind racks and in wall-mounted outlets. The flexible angled plug prevents strain on adjacent connectors and enables secure insertion in shallow or recessed RJ45 jacks. FTP shielding improves signal integrity in environments with potential EMI from nearby electrical equipment. The LSZH jacket reduces halogen release in the event of fire and supports safer indoor deployment.

Suitable for

• Patching between closely spaced switch ports in data cabinets and patch panels
• Connections in shallow or recessed RJ45 sockets where a straight plug would not fit
• Short horizontal links inside racks, wall outlets or behind equipment
• Office and structured-cabling environments requiring shielded links to mitigate EMI

Key specifications

• Cable category: Cat6A (shielded FTP)
• Length: 0.25 m

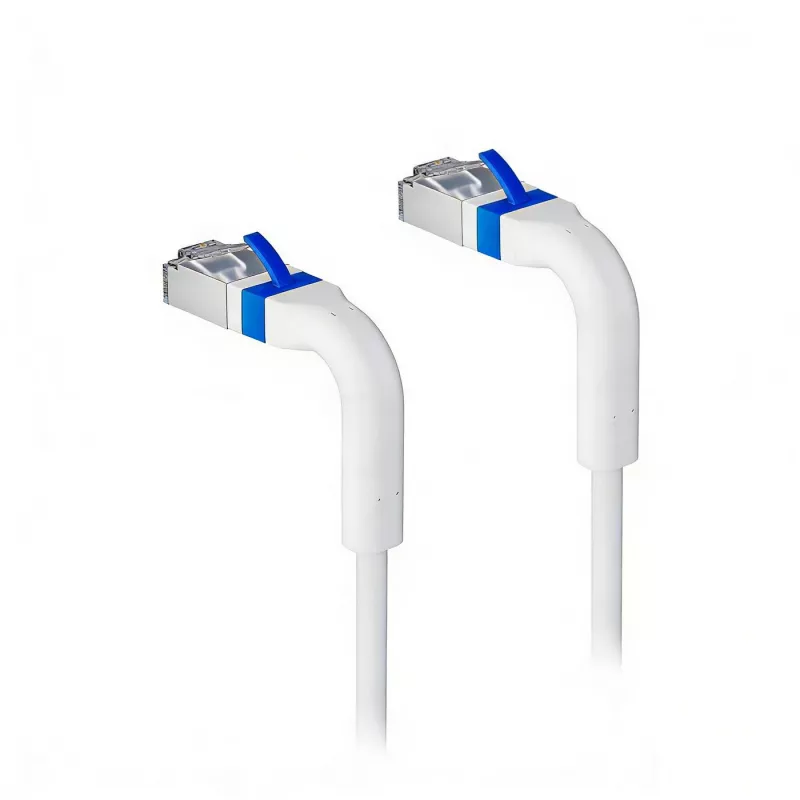

• Connector: RJ45 with flexible angled plug (adjustable up to 90° in four directions)
• Conductor size: slim AWG 30 (8 wires, 4 pairs)
• Shielding: foil shield over pairs with overall drain/ground conductor for FTP performance
• Jacket material: LSZH (halogen-free)
• Bending radius: 4 x outer diameter
• Suitable temperature and operating environment: designed for indoor structured cabling (follow local installation standards)

How to use

Adjust the flexible angled plug to the required orientation before inserting into the RJ45 jack to avoid mechanical stress. Route the cable following recommended bend radii and avoid tight kinks; maintain the 4x outer diameter minimum bend radius for reliable performance. Connect one end to the device or patch panel and the other end to the corresponding network port. Ensure the cable drain wire is properly grounded at the shielded patch panel or switch if the installation requires bonded shielding.

Recommendations

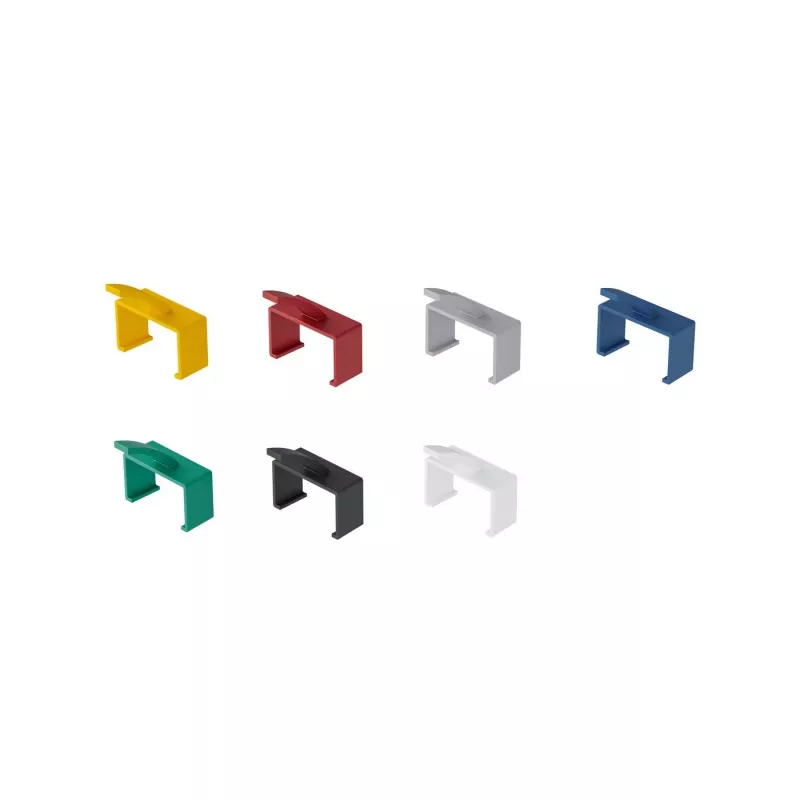

For organized installations, consider using color identification clips (sold separately) and plan cable runs to minimize connector stress. Use shielded patch panels or switches when deploying FTP cables to preserve shielding effectiveness. Do not over-bend the cable or force the plug while angled; set the plug position first and then insert to prevent connector damage.
