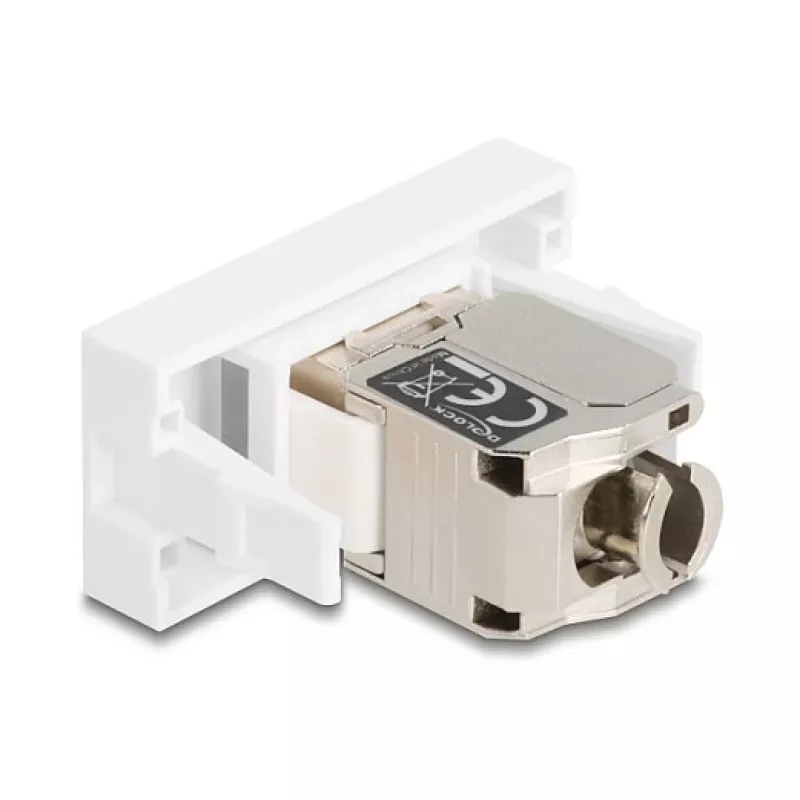

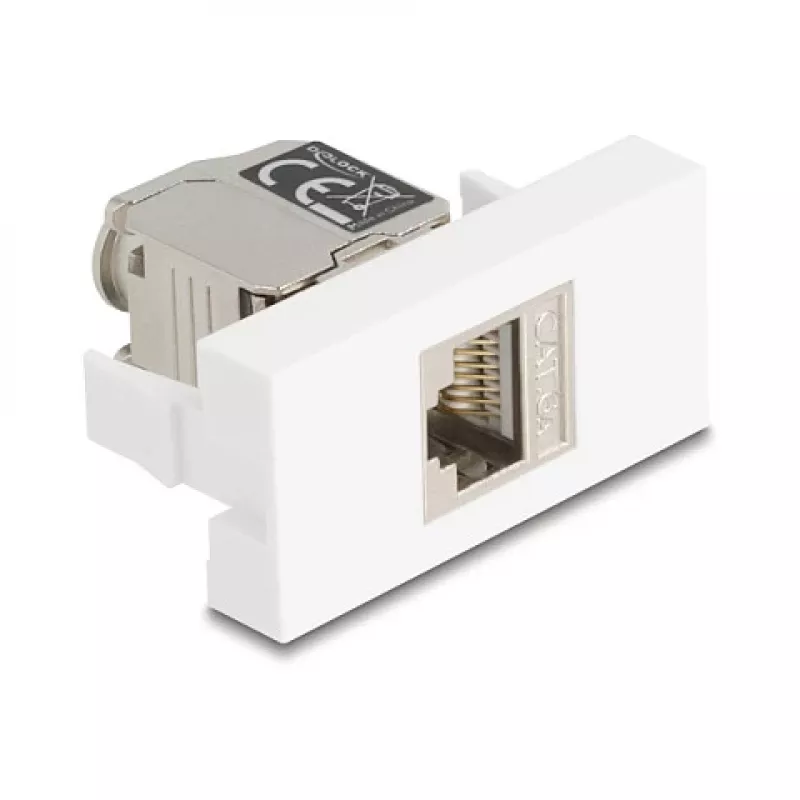

Sieťový RJ45 modul DELOCK 90904 Cat.6A s LED pre Keystone panely a patch panely

DELOCK RJ45 module 90904 Cat.6A with LED is a keystone-style network insert designed for installation in keystone panels and patch panels. The module supports Cat.6A performance for high-speed Ethernet and provides a standard RJ45 port with integrated LED indication for link and activity status. The snap-in form factor allows fast assembly into structured cabling panels while maintaining compatibility with common keystone openings.

Advantages

The module combines Cat.6A signal fidelity with a compact keystone format and an integrated LED that shows link and traffic activity, simplifying troubleshooting and monitoring. Its robust contact design and shielded housing contribute to reliable connections in dense rack environments. Snap-in mounting streamlines installation and replacement without special tools.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible keystone opening on a patch panel or keystone wall plate until it snaps into place. Terminate the incoming twisted-pair cable to the back of the module following the T568A or T568B wiring scheme and ensure proper pair alignment and insulation displacement contact seating. Connect the network device to the front RJ45 port; the integrated LED will indicate link and activity status once link partners and power are present. For replacement, depress the module latch and pull it out, then insert a new module in the same manner.

Recommendations

Use Cat.6A-rated patch cords and follow structured cabling standards to preserve end-to-end performance. Avoid excessive cable bending radius near the module and maintain correct pair untwisting limits during termination. Verify LED behavior during commissioning to confirm link speed and activity.
