Sieťový transceiver modul BlueOptics BO29X854S1D-BO QSFP-DD optický 400000 Mbit/s strieborný kov

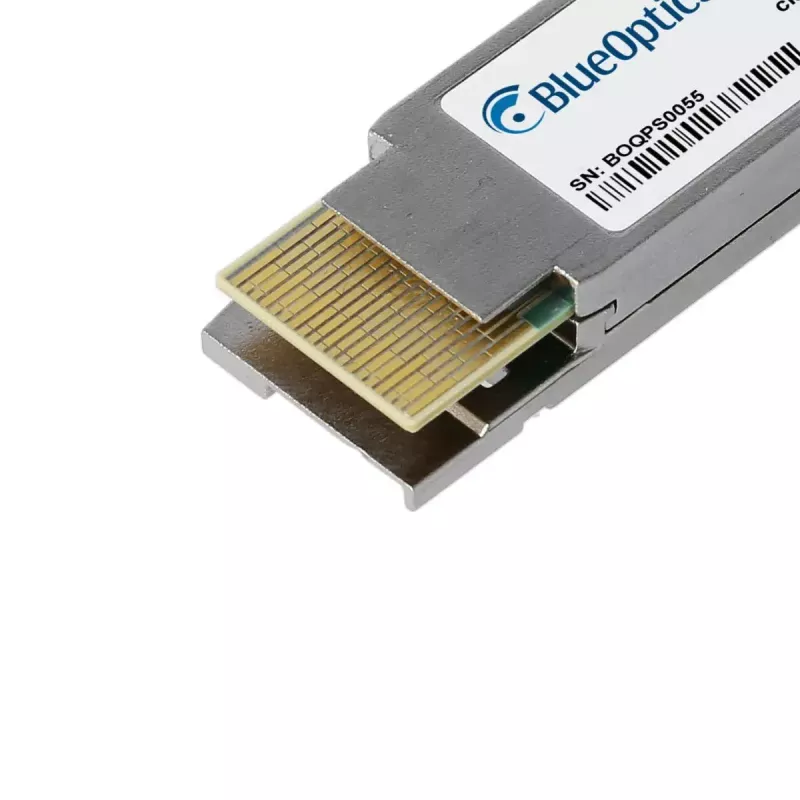

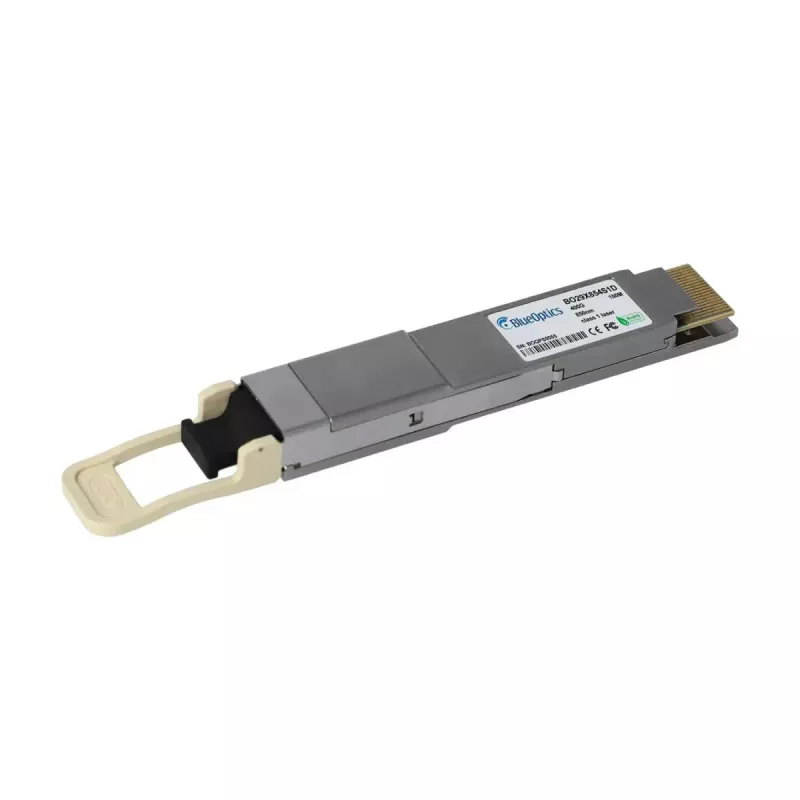

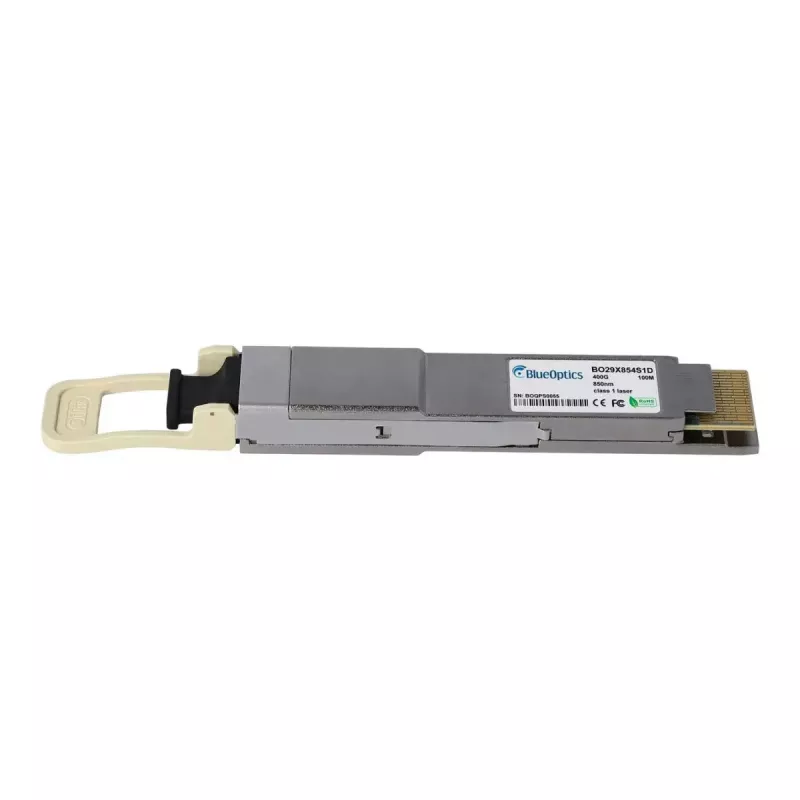

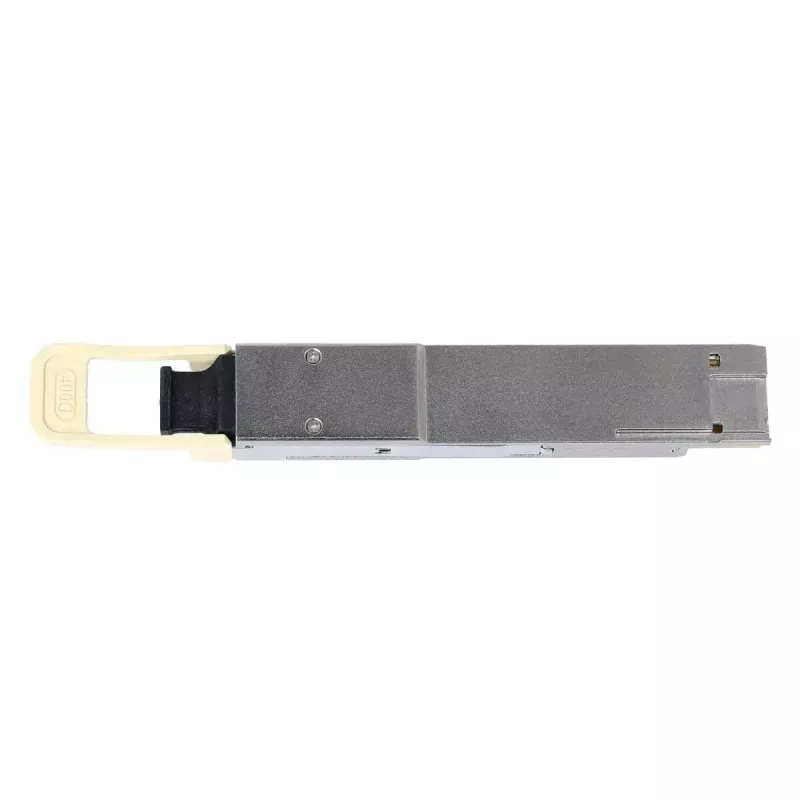

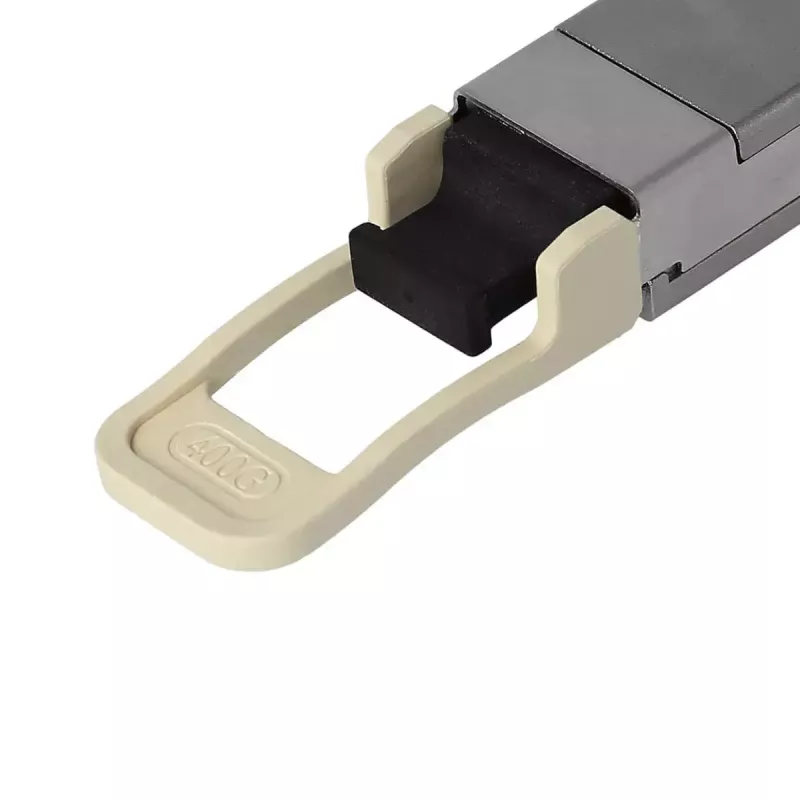

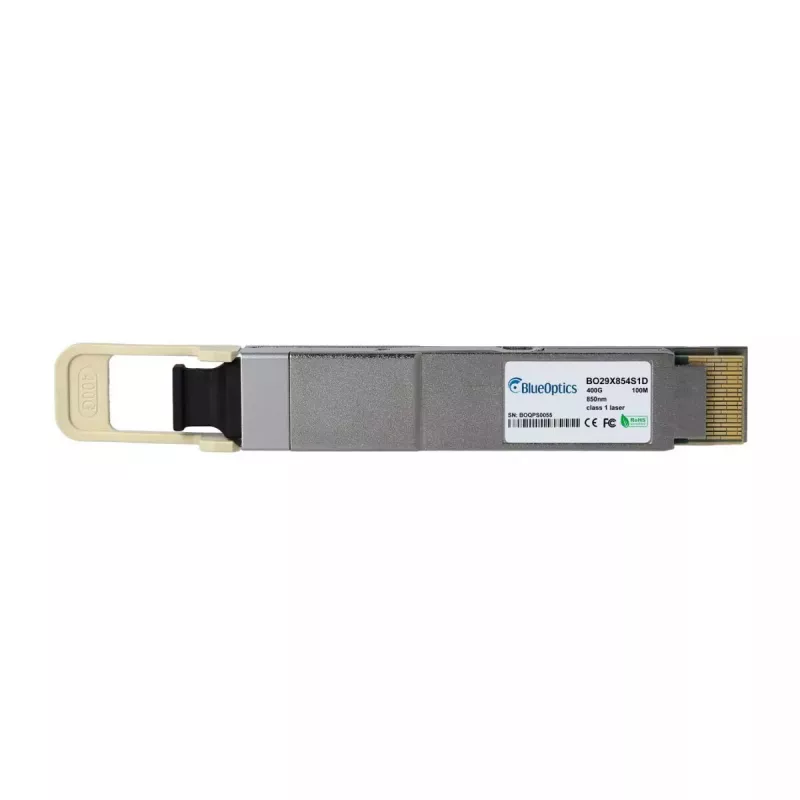

BlueOptics BO29X854S1D-BO is a QSFP-DD fiber optic network transceiver module designed for multi-lane 400GbE links. The module supports a maximum data transfer rate of 400000 Mbit/s and uses a QSFP-DD interface in a metal silver housing. With a compact weight of 0.04 kg and a high MTBF of 1,000,000 hours, the unit is intended for use in high-density data center and carrier network environments where interoperable optical connectivity and long service life are required.

Advantages

The transceiver provides a QSFP-DD interface that enables multi-lane 400G connectivity in compatible switches, routers and storage systems. Its metal casing and silver finish offer physical durability and electromagnetic shielding. The product is engineered to meet MSA-defined mechanical and electrical interoperability expectations for QSFP-DD modules and includes diagnostics capability for remote monitoring when supported by host hardware. The module’s high MTBF supports reduced maintenance cycles and extended operating life.

Suitable for

• High-density data center spine and leaf networks
• Carrier Ethernet and service provider aggregation links
• High-performance computing clusters and storage interconnects
• Switch and router uplinks requiring 400G QSFP-DD modules

Key specifications

• Interface type: QSFP-DD
• Maximum data transfer rate: 400000 Mbit/s
• Product colour: Silver
• Housing material: Metal
• Weight: 0.04 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the BlueOptics QSFP-DD transceiver into a compatible QSFP-DD port on the host device following the host manufacturer’s hot-plugging and electrostatic discharge (ESD) precautions. Connect the appropriate MPO-16/MTP-16 multimode fiber patch cord or patch panel to the module’s optical interface. If the host system supports digital diagnostics (DDM/DOM), enable and monitor the module’s optical and electrical parameters through the management interface to confirm proper link performance.

Recommendations

Verify compatibility with the target switch or router model and the host firmware version before deployment. Use multimode fiber and MPO-16/MTP-16 cabling rated for the intended link distance and bandwidth. Maintain proper ESD protection during handling and ensure clean fiber endfaces to achieve optimal optical performance.
