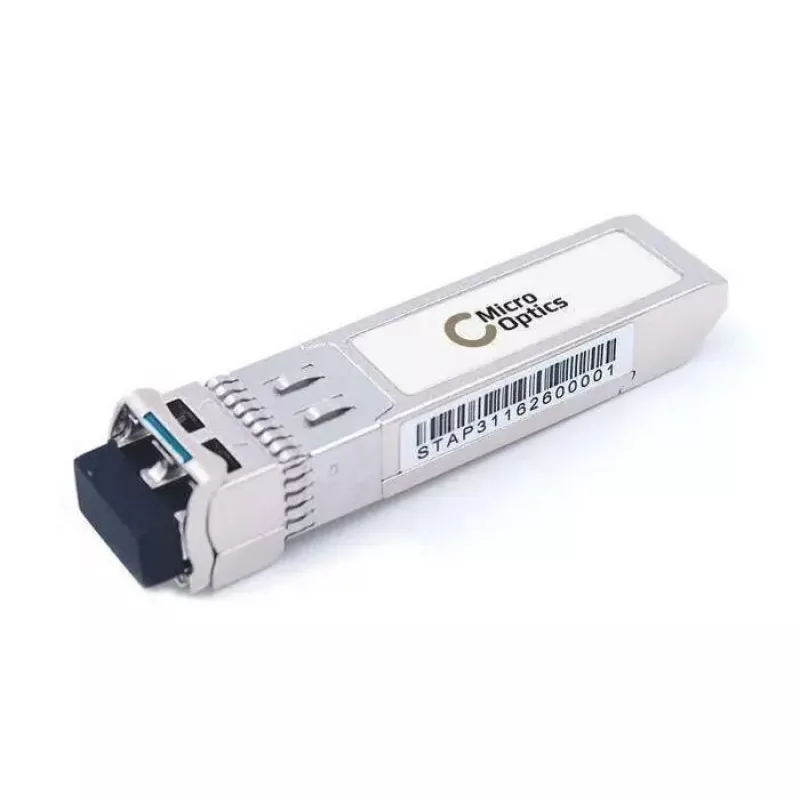

Sieťový transceiver modul Lanview MO-AXM763 SFP+ 10000 Mbit/s 1310 nm LRM

Lanview MO-AXM763 SFP+ 10000 Mbit/s 1310 nm LRM is a hot-pluggable optical transceiver module designed for short- to medium-range fiber links and data center uplinks. The module follows the SFP+ form factor and the LRM (Long Reach Multimode) transceiver standard, supporting a maximum data transfer rate of 10,000 Mbit/s and operating at a wavelength of 1310 nm. It is intended for use in switches, routers and media converters where reliable multimode fiber connectivity is required.

Advantages

The module provides a compact SFP+ footprint with hot-swappable installation, enabling quick upgrades or replacements without powering down equipment. Compliance with the LRM standard ensures compatibility with multimode fibers for short- to medium-range connections. With support for 10 Gbit/s class throughput, the transceiver is suitable for uplink, aggregation and server connectivity scenarios where higher bandwidth and low-latency links are required.

Suitable for

• Data center uplinks and top-of-rack switch connections
• Short- to medium-range multimode fiber links within campus or enterprise networks
• Server uplinks, aggregation links and switch-to-switch connections
• Replacement or compatibility options for Netgear AMX763 compatible ports

Key specifications

• Form factor: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1310 nm
• Transceiver standard: LRM (Long Reach Multimode)
• Hot-pluggable design for in-service installation

How to use

Insert the Lanview MO-AXM763 SFP+ module into an available SFP+ port on a compatible switch, router or media converter until it clicks into place. Connect the appropriate multimode fiber cable to the transceiver, ensuring correct connector type and secure connection. The device should be detected by the host equipment and negotiate link parameters at the supported data rate. For removal, depress the module retention tab and pull the module straight out while the system is powered down or following the host equipment's hot-swap procedures if supported.

Recommendations

Use quality multimode optical fiber and appropriate LC connectors, verify compatibility with your host device for Netgear AMX763 compatible ports, and follow manufacturer and network equipment guidelines for fiber handling, cleaning and ESD protection to maintain optimal performance.
