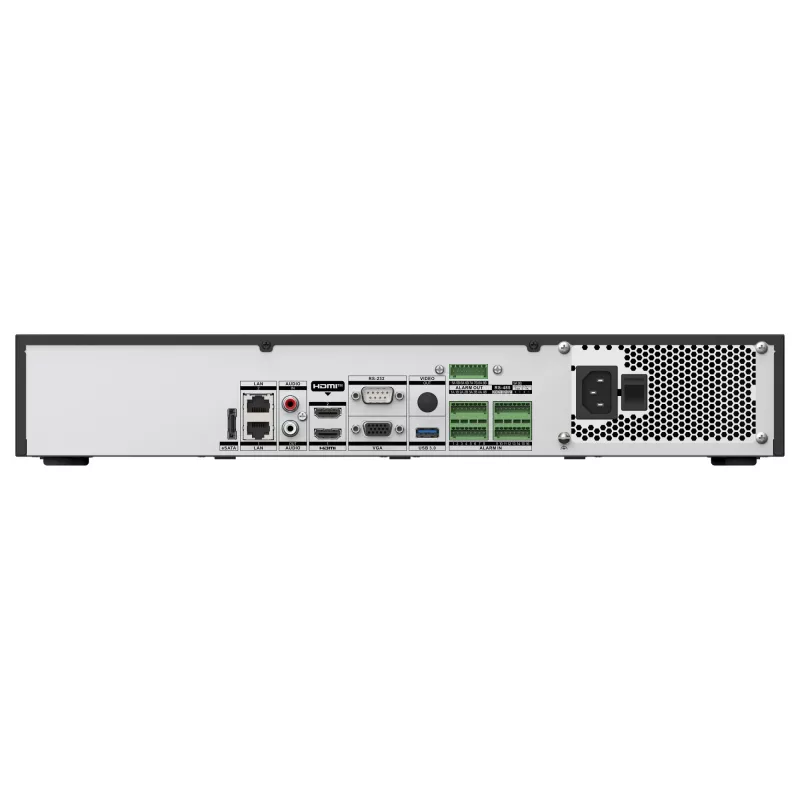

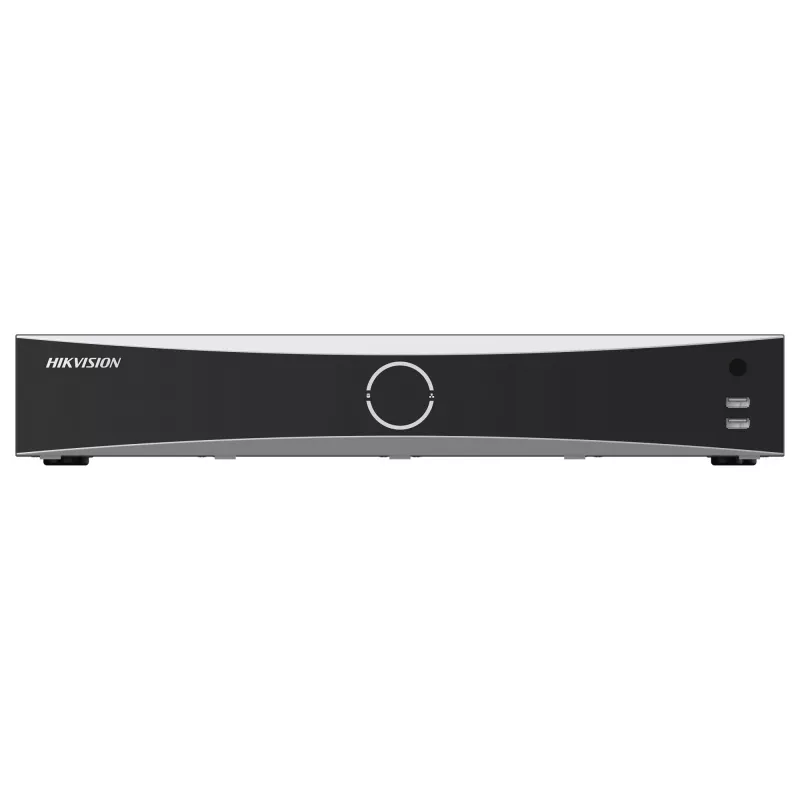

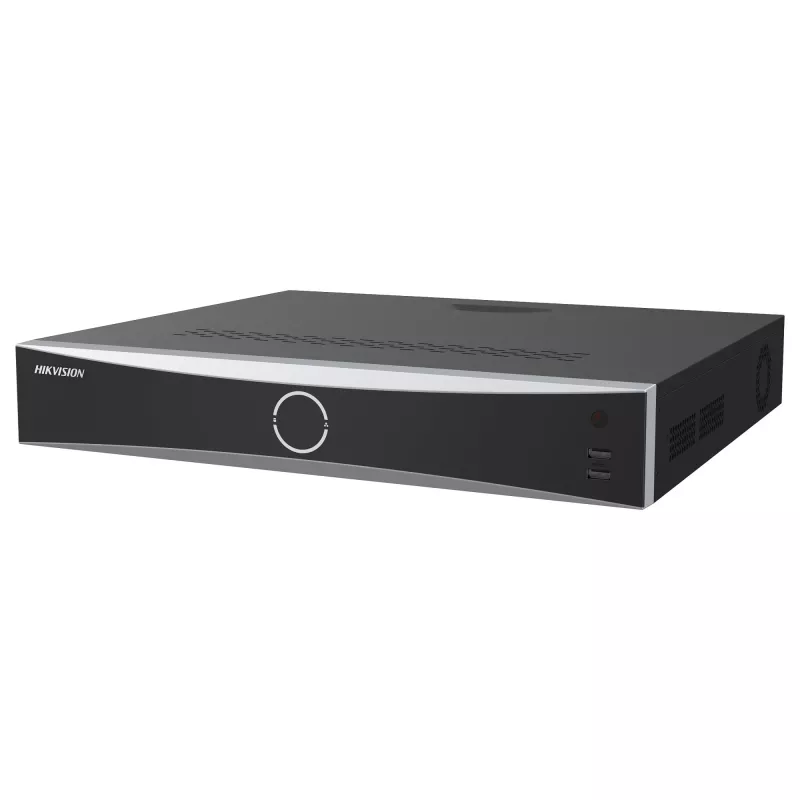

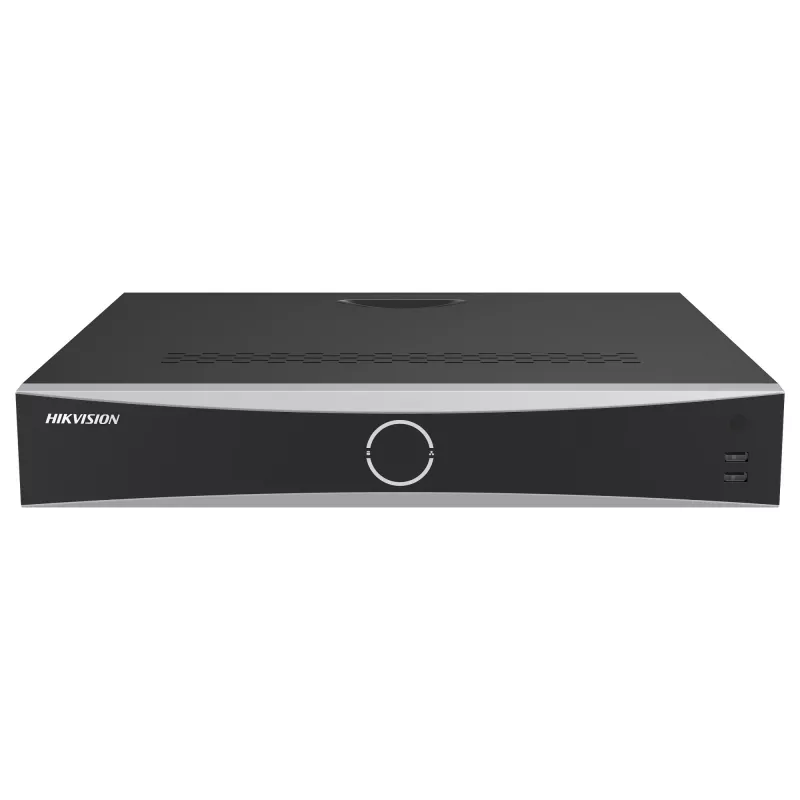

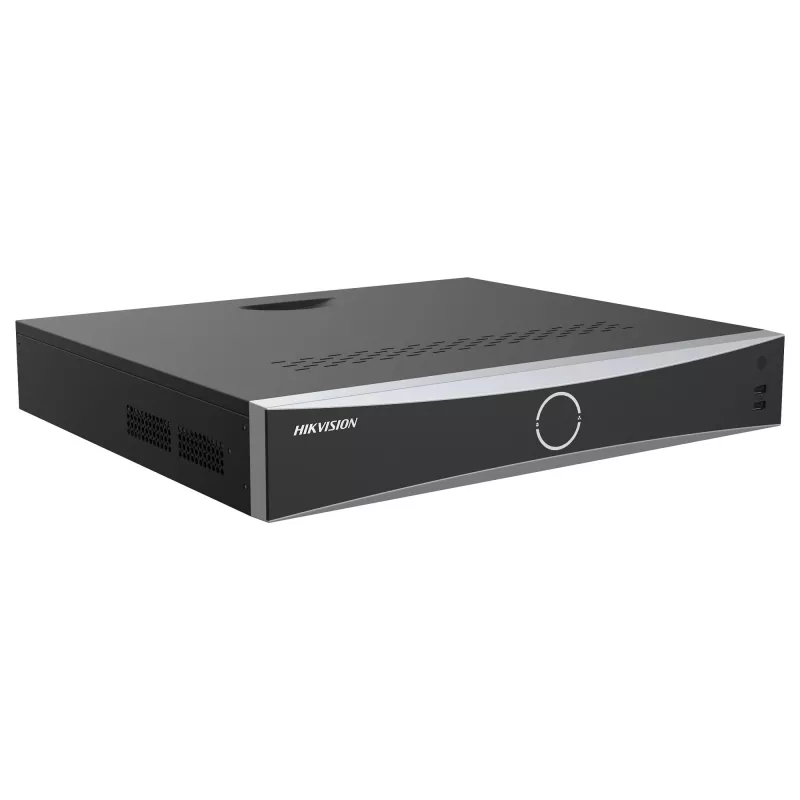

Hikvision DS-7716NXI-I4/VPRO 16-kanálový AcuSeek NVR, 1,5U

The Hikvision DS-7716NXI-I4/VPRO is a 16-channel AcuSeek NVR from the I/VPro series, featuring AI analytics based on Guanlan large-scale AI models. It supports up to 16 IP cameras and offers decoding up to 16 channels at 1080p.

Key features

• 16-channel AcuSeek and AcuSearch
• Face recognition from face pictures: up to 8 channels
• AI analytics: face recognition, perimeter protection, video structuring, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
• 2 engines (1 for face pictures and AcuSearch; 1 for AcuSeek)
• Face picture library: up to 16 libraries, total up to 50,000 pictures, each ≤ 512 KB, max 1 GB
• Face picture comparison: 8 channels
• Face capture performance: 4 channels (2MP ×4, 4MP ×2, 8MP ×1, H.264/H.265)
• AcuSearch performance: up to 300,000 objects per day
• AcuSeek performance: up to 300,000 objects per day
• Search language: English
• ANPR: by camera, all channels; vehicle features: plate number, plate color, plate type; plate attributes: vehicle brand, vehicle color, vehicle type
• Video formats: H.265+/H.265/H.264+/H.264
• Decoding formats: H.265, H.265+, H.264, H.264+
• Recording resolution: 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous playback: 16 channels
• Preview window division: 1/2/4/6/8/9/16
• Auxiliary output division: 1/2/4/6/8/9/16
• Decoding capability: AI ON: 20fps@1080p, AI OFF: 32ch@1080p
• Audio compression: G.711ulaw/alaw, G.722, G.726, AAC, MP2L2, PCM
• Dual-stream recording: yes
• Stream type: video or video+audio
• Network interface: 2× RJ-45 10/100/1000M
• Remote connections: 128
• Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP/HTTPS, ONVIF 2.2, OTAP
• API: ONVIF S/G, SDK, ISAPI
• Compatible browsers: IE11, Chrome 57+, Firefox 52+, Safari 12+, Edge 89+
• HDMI 1 output: 4K/30Hz, 2K/60Hz, 1080p/60Hz, 720p/60Hz
• HDMI 2 output: 1080p/60Hz, 720p/60Hz
• VGA output: 1080p/60Hz, 720p/60Hz
• Output mode: HDMI / VGA independent
• CVBS output: no
• Audio output: 1× RCA (linear, 1 kΩ)
• Two-way audio: 1× RCA (2.0 Vp-p, 1 kΩ)
• Alarm I/O: 4/5
• USB: 2× USB 2.0 (front), 1× USB 3.0 (rear)
• GUI languages: 40 languages including PL
• Power supply: 100–240 VAC, 50/60 Hz
• Power consumption: ≤ 50 W (without HDD)
• Operating temperature: -10°C to 55°C
• Humidity: 10%–90%
• Chassis: 1.5U
• Dimensions: 440 × 391 × 72 mm
• Weight: ≤ 5 kg (without HDD)
• Certifications: CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC

Specifications

• Brand: Hikvision
• MPN: DS-7716NXI-I4/VPro
• Product colour: Black
• Video input channels: 16 channels
• Max resolution: 3840 x 2160 pixels
• Number of simultaneously playback channels: 16 channels
• Max storage capacity: 20 TB
• HDD interface: SATA, SATA II, SATA III
• Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
• Supported network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP,....
• Rack capacity: 1.5U
• Power consumption (typical): 50 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
