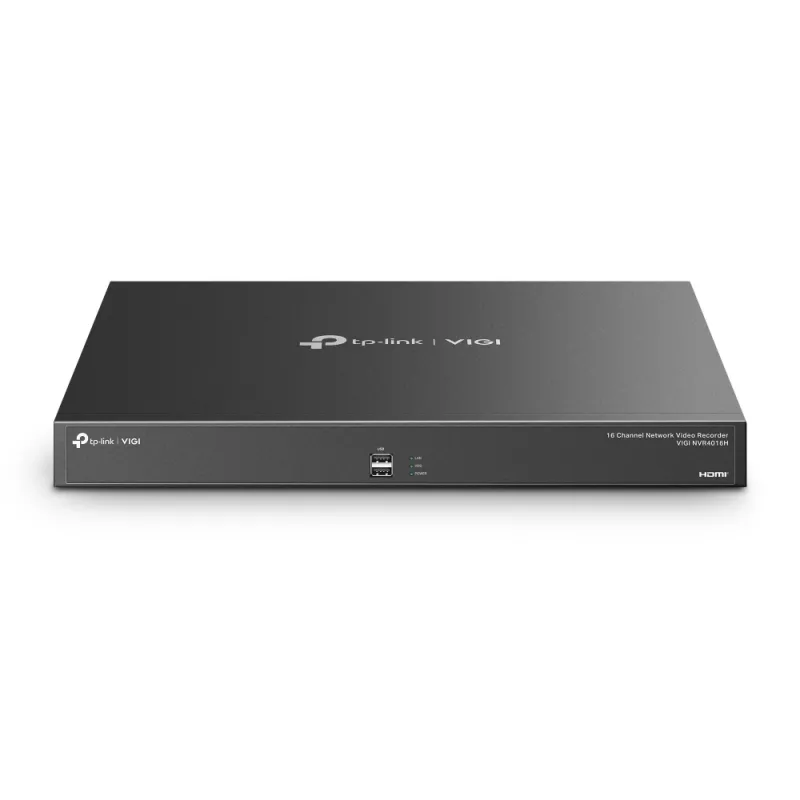

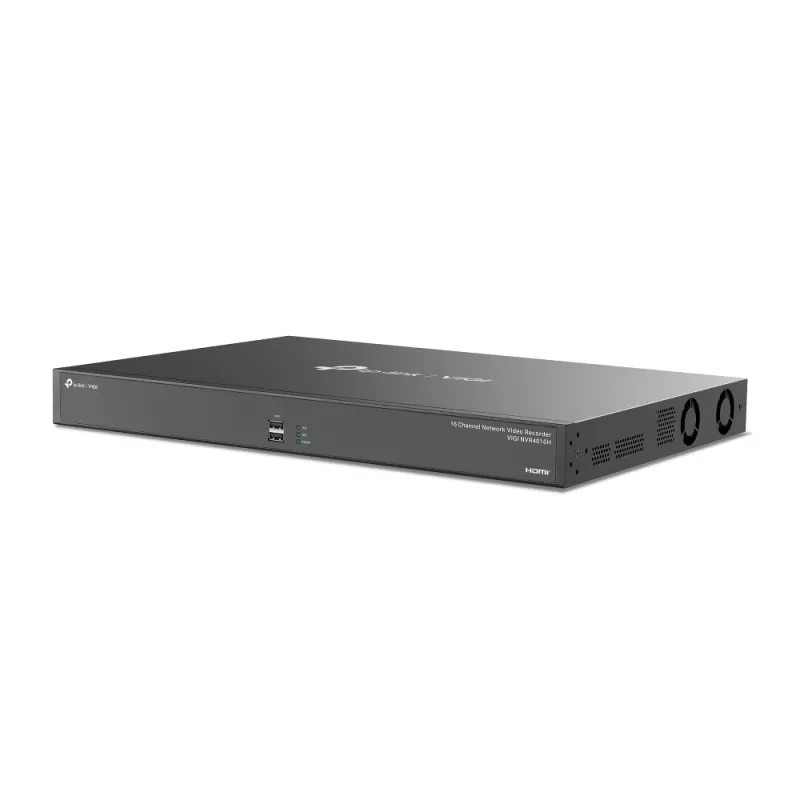

Sieťový videorekordér TP-Link VIGI NVR4016H 16 kanálov 4K čierny

The TP-Link VIGI NVR4016H is a 16-channel network video recorder supporting up to 4K resolution and designed for SMB surveillance installations. It offers dual Ethernet ports, port aggregation, multi-address mode and network fault-tolerance to ensure continuous recording and reliable data transmission. With a maximum supported storage capacity of 64 TB and SATA HDD interface, the unit is suitable for systems that require high-definition video capture and extensive local storage.

Advantages

The dual Ethernet ports design enables simultaneous connections and redundancy, while port aggregation increases available bandwidth and provides mutual backup. Multi-address mode allows the implementation of two different gateways for flexible network routing. Network fault-tolerance creates safeguards for data continuity in case of link failures. The Auto Initialize function speeds up initial setup by automatically configuring basic IP camera and hard disk parameters.

Suitable for

• Small and medium business surveillance systems
• High-resolution monitoring up to 4K
• Installations requiring extensive local storage (up to 64 TB)
• Environments where network redundancy and uptime are important

Key specifications

• Channels: 16
• Maximum resolution: 4K
• HDD interface: SATA, maximum supported capacity up to 64 TB

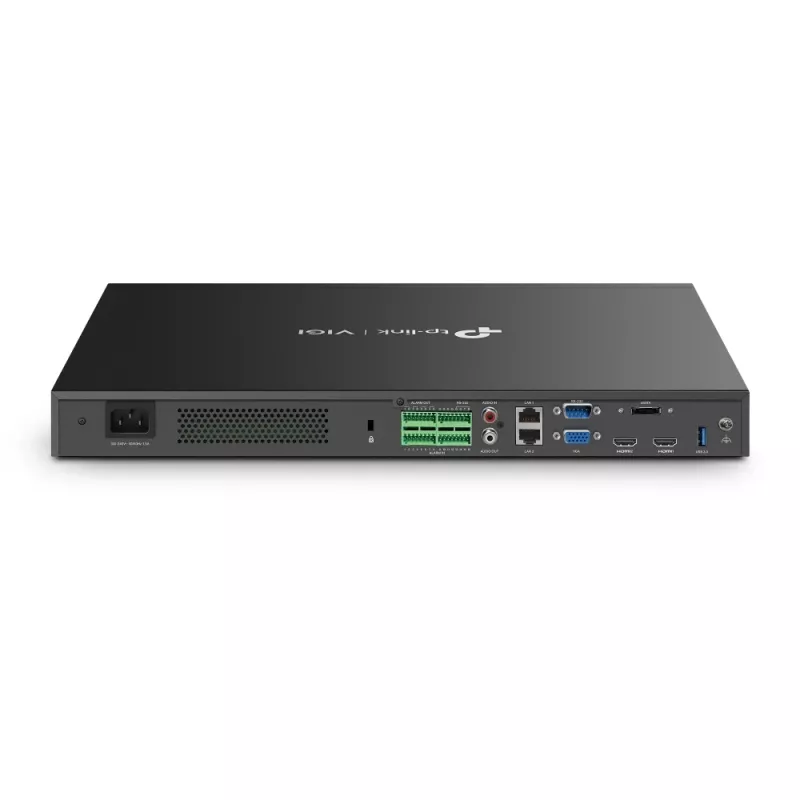

• Ethernet ports: 2 x RJ-45
• USB ports: 1 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
• Product colour: Black
• Weight: 4 kg

How to use

Mount the NVR in a suitable rack or shelf and connect the unit to power. Attach SATA hard drives according to the manufacturer’s instructions and connect network cameras and network uplink(s) to the Ethernet ports. Use the web interface or the VIGI management software to configure camera channels and recording schedules. To shorten setup time, use the Auto Initialize feature to automatically configure basic IPC and hard disk parameters, then adjust recording quality, retention and network settings as needed.

Recommendations

For reliable operation, use quality SATA HDDs intended for surveillance with sufficient capacity to meet retention requirements, configure redundant network paths where available, and perform periodic backups of critical footage. Keep firmware up to date and follow TP-Link’s installation guidelines for ventilation and ambient temperature limits.
