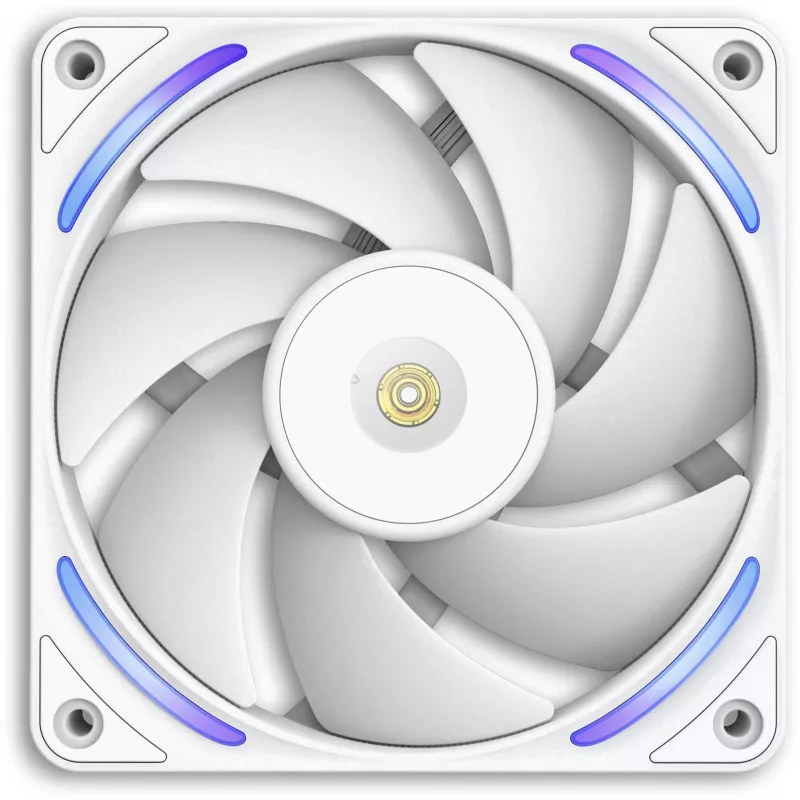

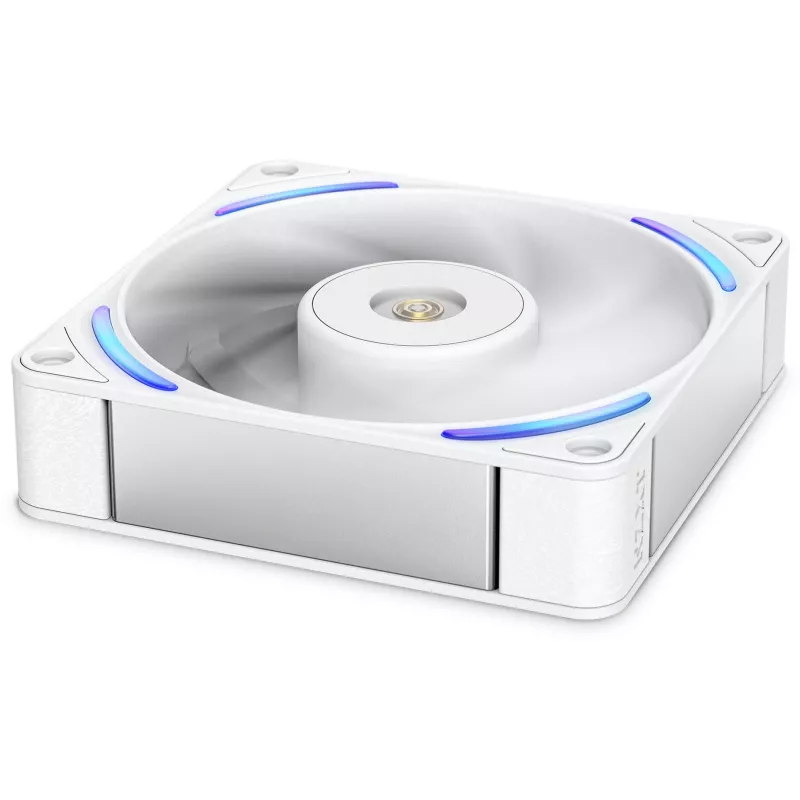

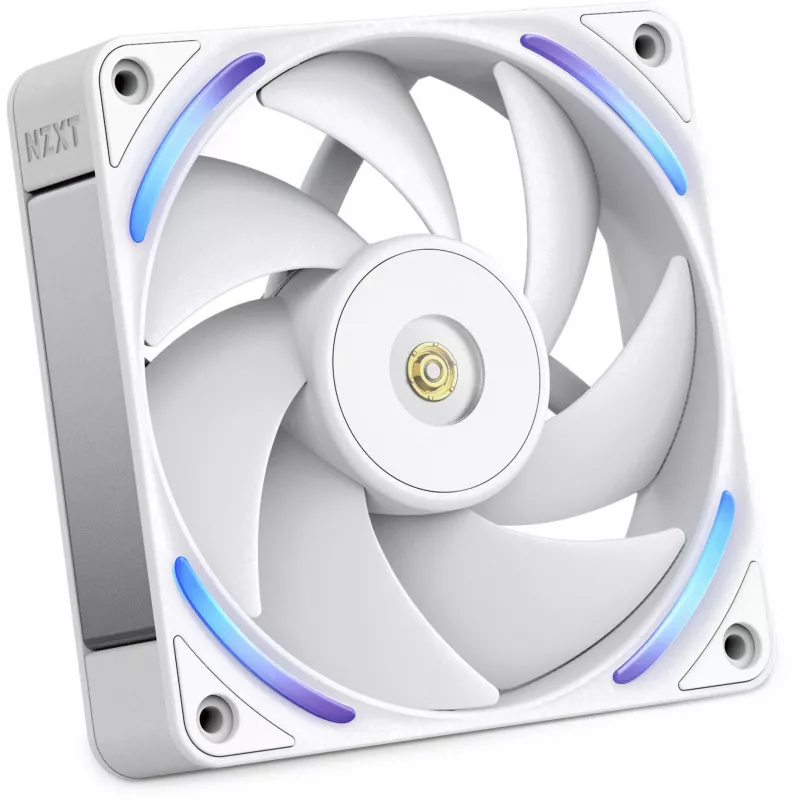

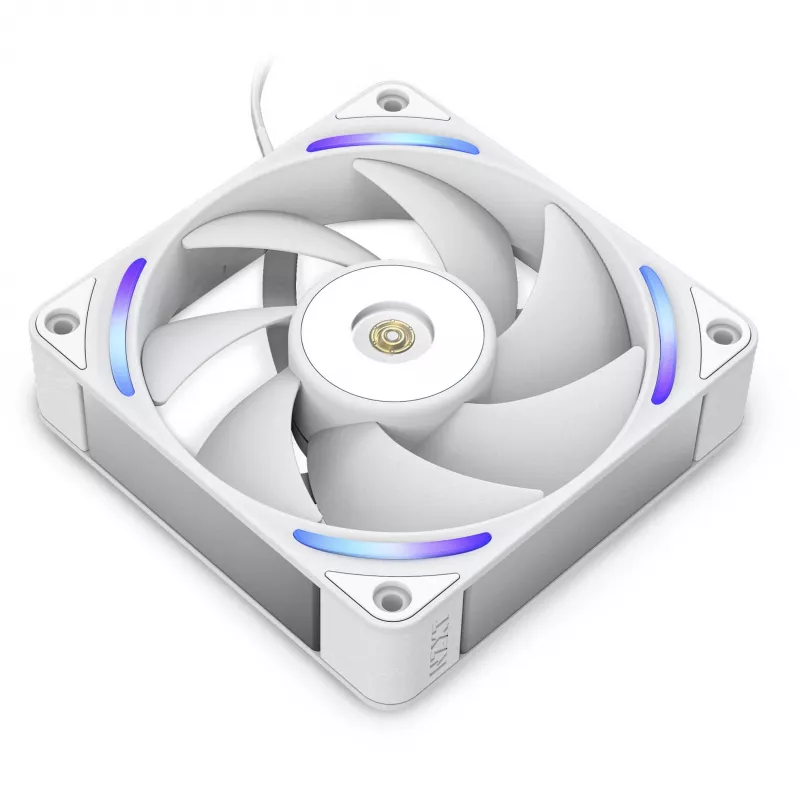

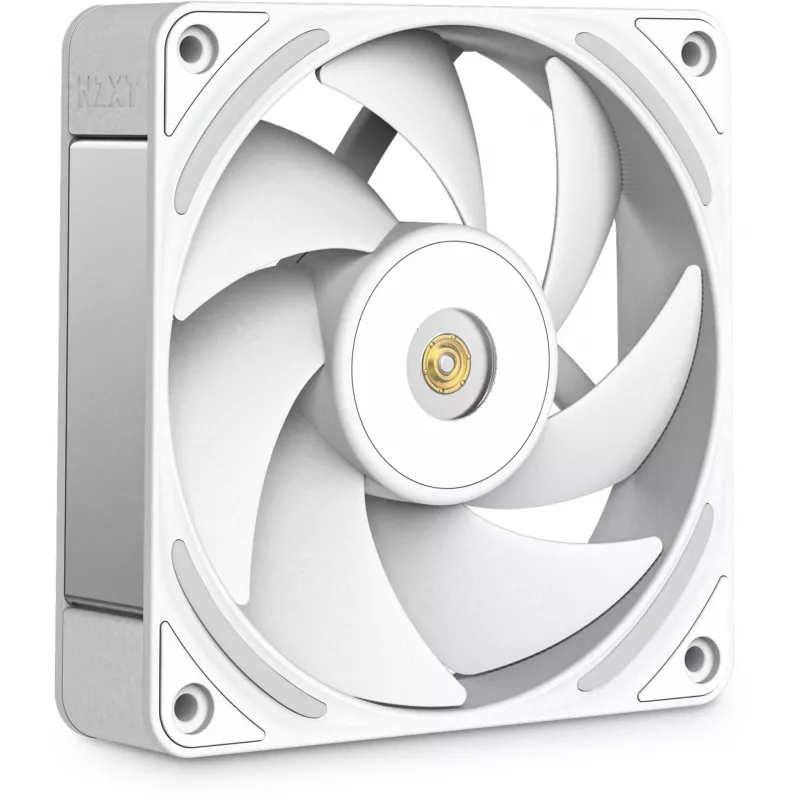

Skriňový ventilátor NZXT Performance Fan F120X, 120 mm, biely

The NZXT F120X 120 mm White case fan is a single 30 mm-thick cooling fan designed for PC chassis ventilation and component temperature management. Built with liquid-crystal polymer (LCP) construction, optimized blades and a hybrid bearing system, this fan is intended to provide a balance of high airflow, static pressure and quiet operation. The unit includes brushed aluminum accents and subtle RGB lighting and can be controlled digitally when used with compatible NZXT hardware or motherboard software.

Advantages

LCP construction keeps the blades and frame rigid at high speeds to reduce flex and vibration, contributing to more consistent airflow. The optimized blade geometry with minimal tip-to-frame clearance reduces turbulence and leakage to maximize airflow and static pressure. A custom hybrid bearing uses magnetic levitation and fluid dynamic lubrication for reduced friction, quieter operation and longer life. The reinforced metal core and a 3-phase, 6-pole motor provide structural stability and precise speed control for efficient cooling across a wide RPM range.

Suitable for

• Case intake or exhaust in desktop PC systems
• Cooling radiators for AIO liquid coolers
• Supplementary airflow for GPU or CPU heatsinks
• System builds seeking a balance of high airflow and moderate noise

Key specifications

• Fan diameter: 120 mm
• Thickness: 30 mm
• Operating speed range: 345–3,100 RPM
• Maximum airflow: 104.0 CFM
• Maximum static pressure: 7.53 mmH2O
• Maximum noise level: 41.0 dBA
• Bearing type: Hybrid (magnetic levitation + fluid dynamic lubrication)
• Construction: Liquid-crystal polymer (LCP) blades and frame
• Motor: 3-phase, 6-pole design
• Lighting: Subtle RGB accents (requires compatible controller or motherboard for control)
• Colour: White
• Unit quantity: 1 piece
• Weight: 0.28 kg

How to use

Install the NZXT F120X in a standard 120 mm fan mounting location in your PC case, aligning the airflow direction indicated on the fan housing with the intended intake or exhaust path. Secure the fan with appropriate screws or mounting hardware and connect the fan header to a compatible PWM header on the motherboard or to a controller that supports the required minimum fan header rating. If digital RGB control is required, connect to an NZXT Control Hub or a compatible RGB header and use NZXT CAM or motherboard software to adjust lighting and fan curves. Ensure cables are routed to avoid contact with the blades and verify that the fan spins freely before powering the system.

Recommendations

For optimal performance, use the F120X where a combination of airflow and static pressure is beneficial — for example, as a radiator fan or as a case exhaust. Configure fan speed profiles in software to balance cooling and noise, and periodically check mounting and dust accumulation to maintain efficiency and longevity.
