Spelsberg Abox Pro 040-2,5² IP66 odbočná krabica, 5-pólová, sivá 40243001

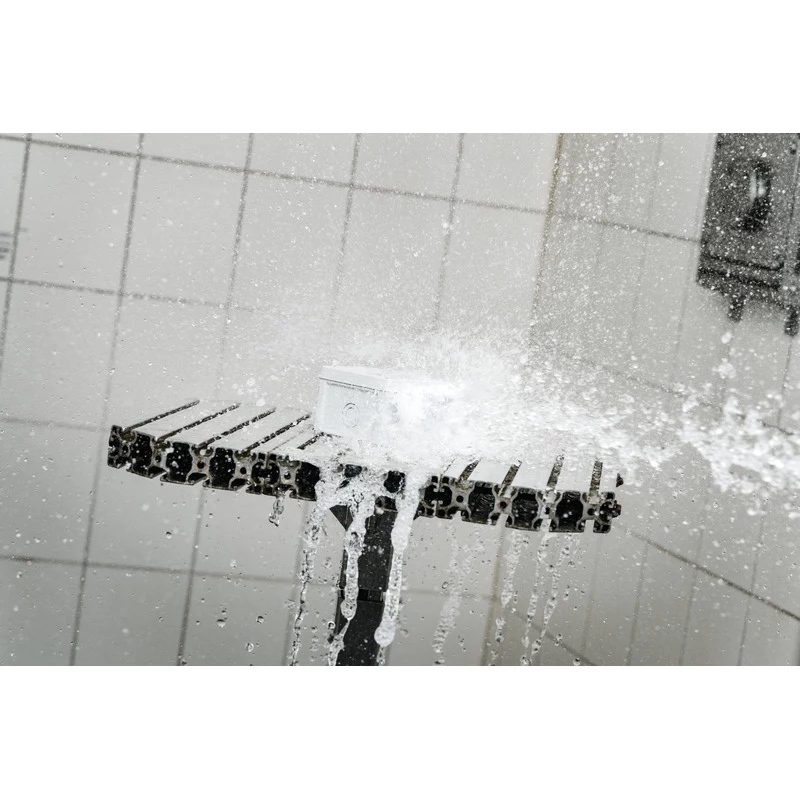

The Spelsberg Abox Pro 040-2.5² stands out as a robust and reliable junction box for demanding electrical installations. Its IP66 rating ensures complete protection against dust and powerful water jets, making it suitable for both indoor and outdoor use. The box accommodates conductors up to 4 mm² and features a 5-pole screw terminal block for secure connections.

Highlights

• High protection class: IP66
• Durable polypropylene housing
• 5-pole screw terminals for conductors up to 2.5 mm²
• Eight elastic cable entries (M20/M25)
• Quick-release lid fasteners for easy access
• Halogen-free and UV-resistant

In daily use

Ideal for surface-mounted distribution and connection tasks in industrial, commercial, and residential settings. The grey (RAL 7035) housing blends seamlessly with standard installation environments. The elastic entries provide strain relief and maintain the IP66 seal even with varying cable diameters. The quick-release lid allows fast access during installation and maintenance, while the robust IK08 impact resistance ensures long-term reliability.

Full specifications

• Ingress protection: IP66
• Rated insulation voltage: 690 V
• Terminal conductor cross-section: 2.5 mm²
• Maximum conductor cross-section: 4 mm²
• Number of poles: 5
• Terminal type: Screw terminals
• Housing material: Polypropylene (PP)
• Seal material: TPE
• Colour: Grey (RAL 7035)

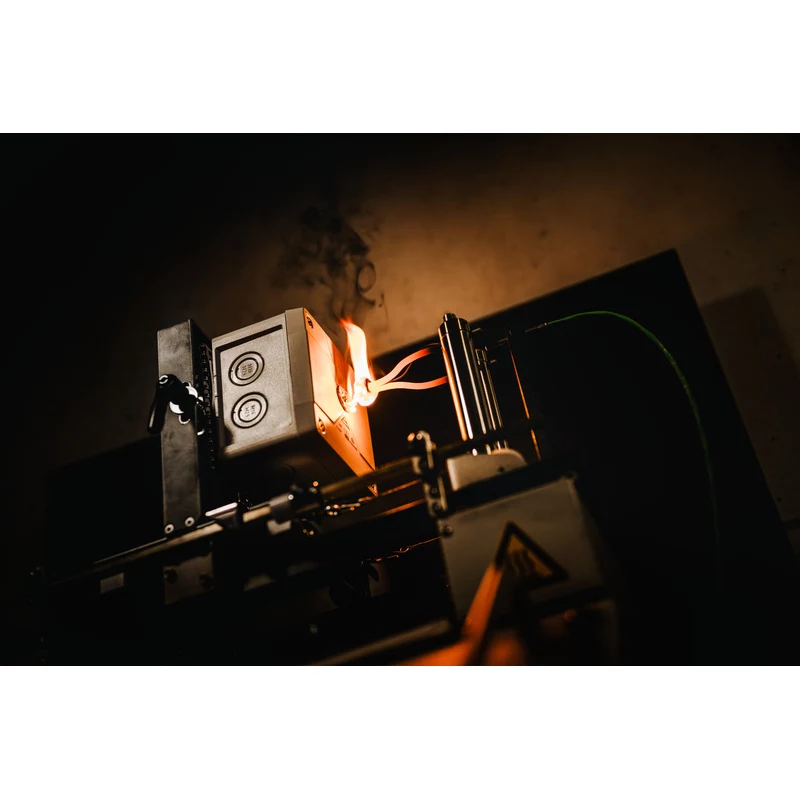

• Glow wire test: 750 °C
• Impact resistance: IK08
• Halogen-free: Yes
• UV-resistant: Yes
• Cable entries: 8 elastic entries (M20/M25)
• Mounting type: Surface mounted
• Operating temperature range: -35 °C to +80 °C
• Standards: DIN EN 60670-22
• Lid fastening: Quick-release fasteners

Final note

Engineered for durability and ease of use, the Abox Pro 040-2.5² is a dependable choice for professional electricians.
