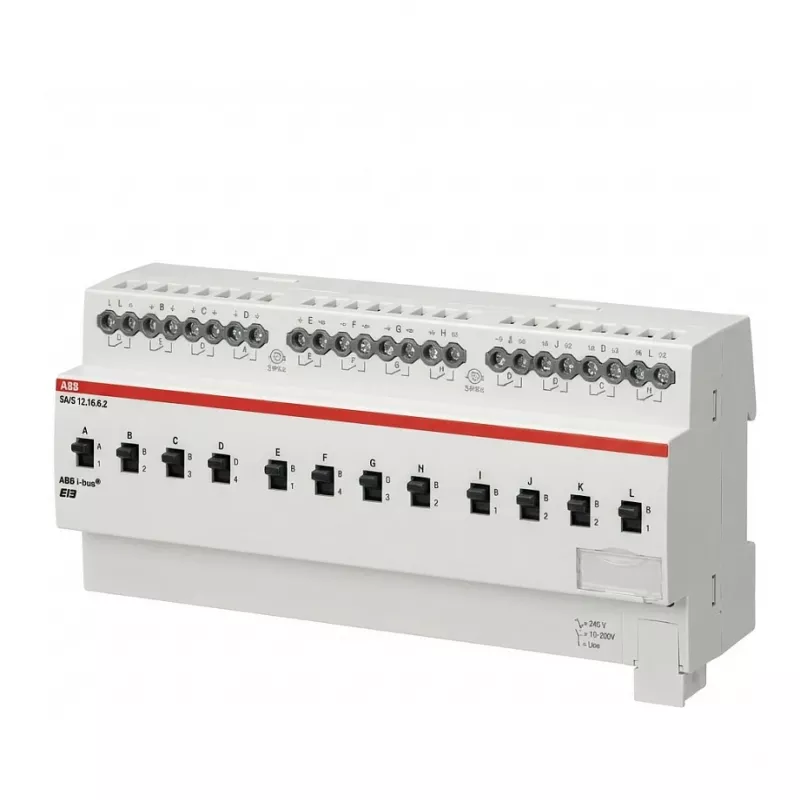

Spínací aktor ABB SA/S12.16.5.2 12-násobný, 16 A, C-záťaž (2CDG110268R0011)

ABB Stotz S&J Schaltaktor 12fach SA/S12.16.5.2 (MPN 2CDG110268R0011, EAN 4016779066518) is a 12-channel switching actuator designed for control of C-type loads up to 16 A per channel. The device is intended for DIN-rail installation in electrical distribution boards and provides centralized switching of multiple circuits in building automation and electrical installations.

Advantages

The 12-channel configuration allows compact installation of multiple switching outputs in one module. Each channel supports up to 16 A for C-type loads, enabling reliable control of lighting circuits and similar consumers. The unit is designed for DIN-rail mounting and bears ABB quality standards and the listed MPN and EAN identifiers for accurate product identification.

Suitable for

• Centralized switching of lighting circuits
• Control of C-type resistive or inductive loads up to 16 A
• Installation in residential or commercial distribution boards (DIN-rail)

Key specifications

• Brand: ABB (Stotz S&J)
• Model / MPN: 2CDG110268R0011
• EAN: 4016779066518
• Channels: 12 switching outputs
• Rated current per channel: 16 A
• Load type: C-load (C-type)
• Mounting: DIN-rail

How to use

Mount the Schaltaktor on a standard DIN rail inside the distribution board and connect supply and load conductors following local electrical regulations and ABB wiring diagrams. Ensure each channel's load does not exceed 16 A and select appropriate protective devices in the distribution board. Integrate the actuator with the respective control system or manual switches as required by the installation.

Recommendations

Verify compatibility of connected loads with C-type switching characteristics and confirm proper overcurrent protection. Installation and wiring should be performed by a qualified electrician in accordance with national standards and ABB documentation for the SA/S12.16.5.2 model.
