Spínací aktor JUNG FM AS 10 UP — podomietkový, 868 MHz, 230 V, 2300 W, 53×28 mm

JUNG FM AS 10 UP is a compact flush-mounted switching actuator that operates on the 868 MHz eNet radio frequency for wireless control of lighting and other electrical loads. Designed for installation in standard appliance boxes or suitable surface-mounted housings, it is powered from 230 V AC and provides a switching output with a maximum rated load of 2300 W. The unit measures 53×28 mm, allowing placement behind wall switches or inside distribution boxes. The device supports manual switch or push-button operation and can also be parameterised and managed via an eNet Server for expanded functionality.

Advantages

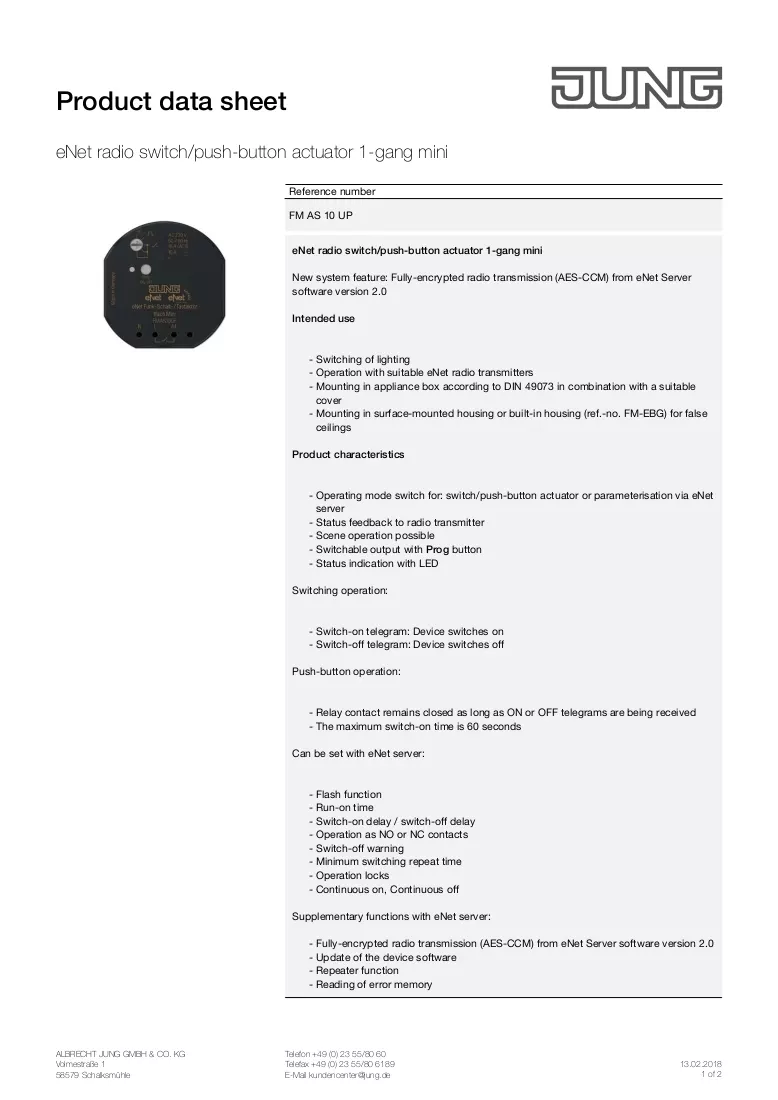

The actuator offers status feedback to paired radio transmitters and includes an LED status indicator and a Prog button for local switching and commissioning. It supports scene operation and push-button modes where the relay follows received ON/OFF telegrams, with a maximum push-button run time of 60 seconds. When integrated with an eNet Server, additional functions become available, including flash, run-on time, delays, NO/NC contact configuration, switch-off warning and continuous on/off modes. From eNet Server software version 2.0 the device also supports fully-encrypted radio transmission (AES-CCM), firmware updates, repeater function and error memory reading.

Suitable for

Key specifications

How to use

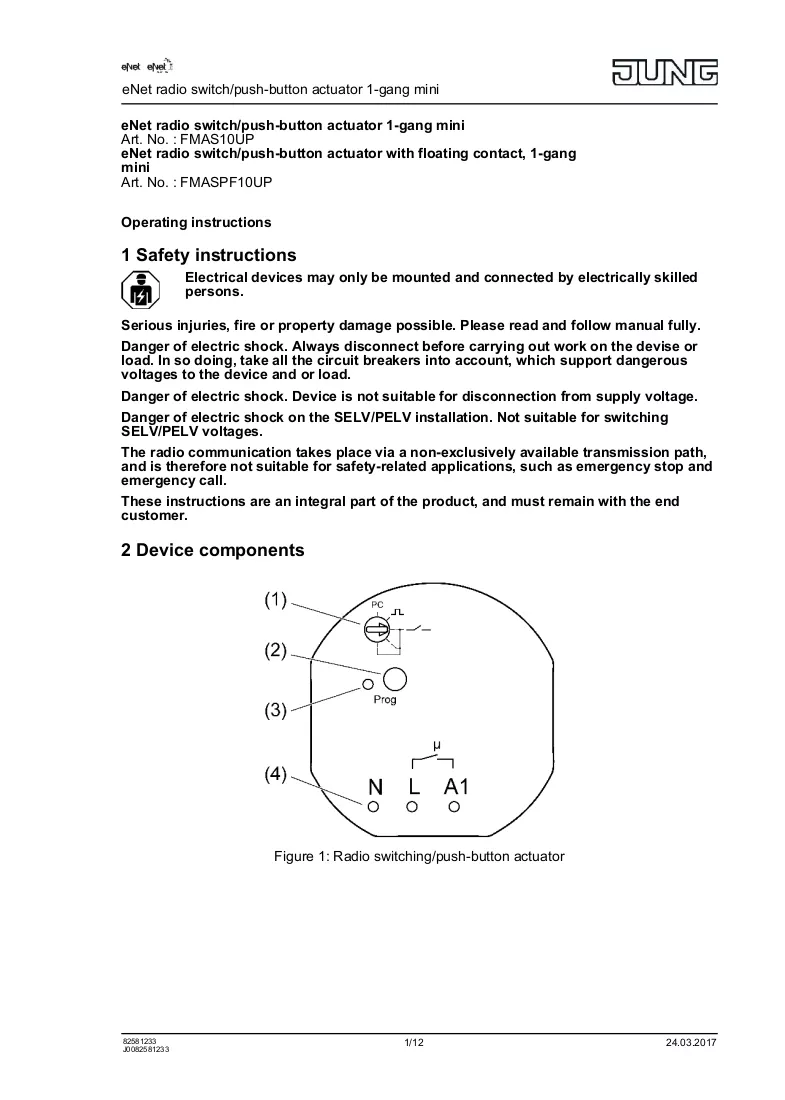

Install the FM AS 10 UP in an appliance box according to DIN 49073 or in a compatible surface-mounted housing, ensuring the supply is isolated before connection. Connect the device to the 230 V AC supply and the load following local wiring regulations. For basic operation use a wall switch or push-button paired with the actuator; the relay will switch according to received ON/OFF telegrams. For advanced configuration and to enable features such as flash, run-on time, contact mode (NO/NC), switch-off warning, or locking functions, register and configure the device with an eNet Server. When required, use the Prog button and LED to perform local commissioning steps and initial association with transmitters.

Recommendations

Use the actuator within the specified voltage and power limits and install it in suitable enclosures to ensure adequate ventilation and protection. For secure and extended functionality — including encrypted communication, firmware updates and repeater mode — manage the device via a compatible eNet Server (software version 2.0 or later). Follow applicable electrical codes and, where necessary, have installation and configuration performed by a qualified electrician.
