Spojka LED pásu, EUROLITE 50530067, 3-pólová, pre 10 mm LED pás

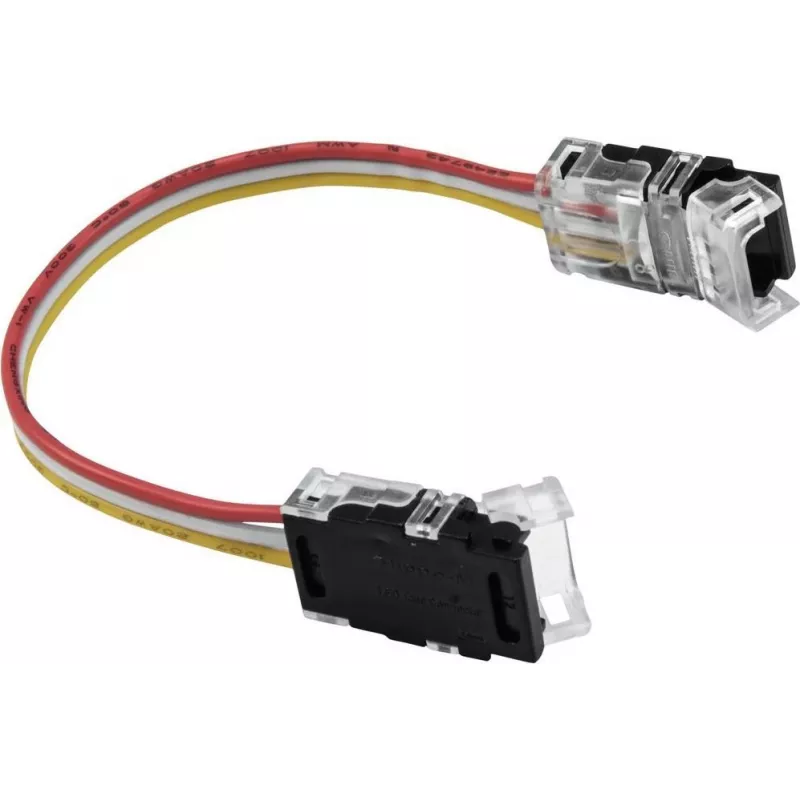

EUROLITE 50530067 is a 3-pin connector for 10 mm LED strips that enables a tool-free electrical and mechanical connection. Designed for RGB or any 3-conductor LED strips with a 10 mm width, this connector provides a fast alternative to soldering when joining short strip sections, repairing damaged segments, or linking a strip to external wiring in lighting installations. The compact plastic housing and integrated contact pins give a reliable contact suitable for low-voltage LED applications.

Advantages

The connector offers a quick, solderless connection that reduces installation time and the need for additional tools. Its three-pin design ensures proper alignment of the three conductors used in RGB or three-wire LED strips. The compact form factor allows connections in confined spaces while maintaining stable contact pressure. The plastic housing provides basic mechanical protection for the contact area and simplifies repeated assembly and disassembly when adjustments are required.

Suitable for

Key specifications

How to use

Trim the 10 mm LED strip cleanly so that the copper pads are exposed and aligned with the connector contacts. Open the connector if it has a hinged cover, insert the strip so each conductor pad aligns with the corresponding pin, and close the housing to engage the contact pins. If connecting to external wiring, insert the wires into the connector side according to polarity or color coding and secure them with the same closing action. Verify secure mechanical fit and test the circuit at low voltage before final installation.

Recommendations

Ensure the LED strip pads are clean and undamaged for reliable contact. Use the connector only with compatible 10 mm, three-conductor LED strips and in low-voltage LED circuits. Avoid exposing the connector to direct moisture or outdoor conditions unless placed inside a suitable protective enclosure. For long runs or permanent outdoor installations, consider soldered joints or IP-rated connectors for improved durability.
