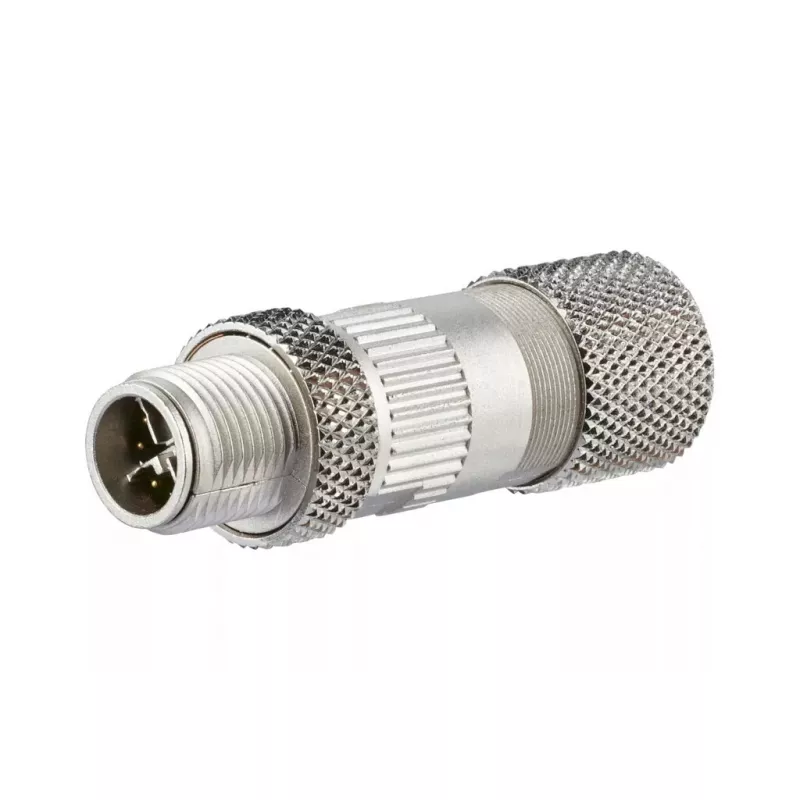

Spojka vodičov METZ CONNECT MNF881A315-0001

The METZ CONNECT MNF881A315-0001 is a metallic M12 male wire connector designed for reliable electrical and signal connections in industrial environments. The compact metallic housing provides mechanical robustness while the halogen-free materials ensure reduced risk in case of fire. Packaged in quantities of ten, this connector is suitable for projects requiring multiple identical terminations and straightforward installation.

Advantages

The metallic construction offers enhanced durability and shielding compared with non-metallic alternatives, supporting stable signal transmission in electrically noisy environments. Compliance with RoHS and cUL standards confirms adherence to established safety and material requirements. The connector's compact dimensions make it suitable for tight installations where space is limited, and the pack quantity simplifies procurement for larger jobs.

Suitable for

• Industrial sensor and actuator connections
• Automation equipment and control cabinets
• Fieldbus and industrial Ethernet cabling
• Machine retrofits and maintenance tasks

Key specifications

• Connector type: M12 male, metallic housing
• Material properties: halogen-free construction
• Safety and compliance: RoHS and cUL compliant
• Dimensions: approximately 16.8 mm (width) × 16.8 mm (height) × 52 mm (depth)
• Pack size: 10 pieces per pack

How to use

Prepare the cable end according to the wire gauge and insulation stripping requirements for M12 terminations. Insert conductors into the mating terminals following the connector's pin assignment and tighten the coupling nut or fastening mechanism to secure the connection. Ensure that the mating equipment uses the corresponding M12 pin configuration and that any sealing or strain-relief measures are applied if the installation requires environmental protection. Verify continuity and correct wiring before powering the system.

Recommendations

For durable performance, use this metallic M12 connector in conjunction with compatible mating connectors and maintain recommended torque values on the coupling nut. Apply appropriate cable glands or sealing compounds when installing in wet or dusty environments, and follow local wiring and safety standards during installation.
