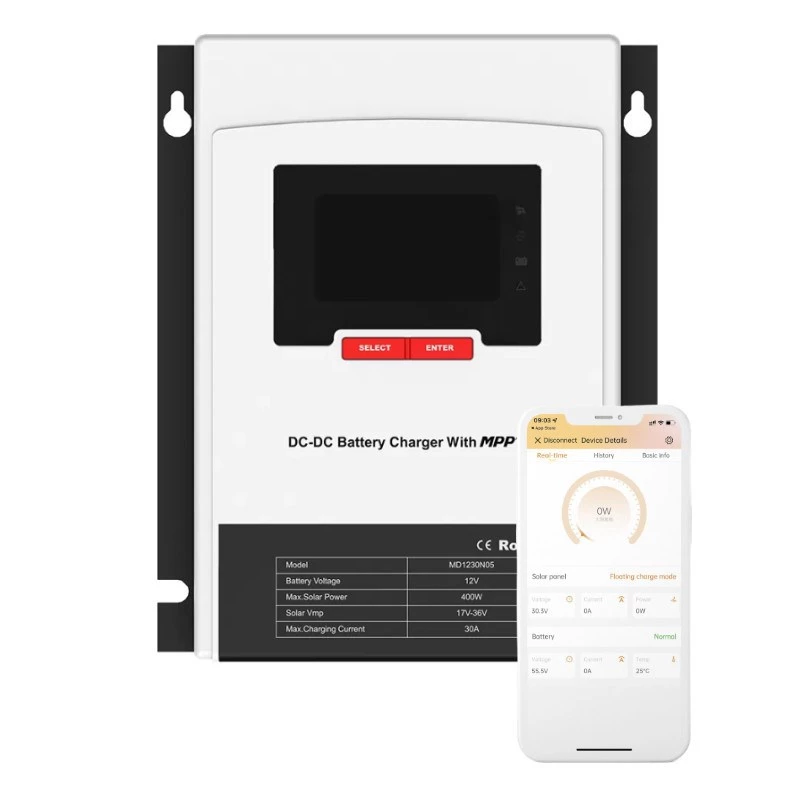

SRNE MPPT 30A DC-DC solárny regulátor nabíjania MD1230N05

The SRNE MPPT 30A DC-DC Solar Charge Controller (model MD1230N05) is a high-efficiency MPPT regulator designed for off-grid solar systems. It automatically adapts to 12V/24V/36V/48V battery banks and supports a maximum PV input voltage of 150V. With a maximum charge current of 30A and conversion efficiency up to 98%, it ensures optimal energy harvesting from solar panels.

Advantages

Advanced MPPT technology with tracking efficiency >99.5% maximizes solar power output. Multi-stage charging algorithm (Bulk, Absorption, Float, Equalization) extends battery life. Common negative grounding design enhances safety and compatibility with various battery types including lead-acid (Sealed, Gel, Flooded) and lithium (LiFePO4, Li-ion, User-defined). LCD display provides real-time system monitoring. RS485 communication interface allows remote monitoring and configuration.

Suitable for

• Off-grid solar power systems
• RV, marine, and caravan applications
• Remote telecom and monitoring stations
• Backup power systems

Key specifications

• Max. Charge Current: 30A
• System Voltage: 12V/24V/36V/48V Auto
• Max. PV Input Voltage (VOC): 150V
• Max. PV Input Power: 390W (12V), 780W (24V), 1560W (48V)
• MPPT Tracking Efficiency: >99.5%
• Conversion Efficiency: Up to 98%
• Battery Compatibility: Lead-acid (Sealed, Gel, Flooded), Lithium (LiFePO4, Li-ion, User-defined)
• Charging Algorithm: Multi-stage (Bulk, Absorption, Float, Equalization)
• Communication Interface: RS485
• Display: LCD
• Grounding: Common Negative
• Enclosure Protection: IP32
• Operating Temperature: -35°C to +45°C
• Self-consumption: <20mA (12V)
• Max. Battery Voltage: 60V
• Protection: PV overcurrent/short circuit, PV reverse polarity, Battery reverse polarity, Overcharge/discharge, Over-temperature

Recommendations

For optimal performance, use with solar panels whose Voc does not exceed 150V. Ensure proper ventilation and mounting in a dry location. Compatible with 12V, 24V, 36V, or 48V battery systems. Always follow manufacturer's wiring instructions.
