Stolová zásuvka typ F Kindermann 7492000151 ušľachtilá oceľ biela

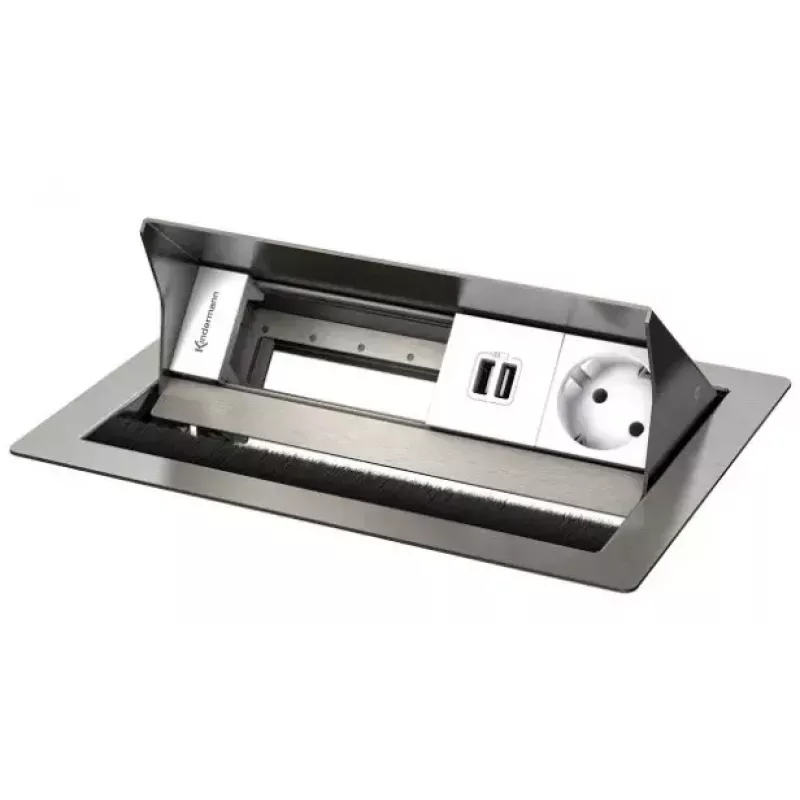

The Kindermann 7492000151 outlet box is a stainless steel desktop enclosure for four insets, pre-mounted with one mains socket (Schuko) and a USB charging adapter with two USB ports. The unit includes two empty modules and can be individually configured with adapter plates from the Konnect flex 45 series. It is intended for installation into desks up to 12–48 mm thick and provides level-mounted integration for a uniform appearance.

Advantages

Quick click-mechanism mounting simplifies installation from above. Level-mounted interfaces create a homogeneous appearance on the desktop. The casing is compatible with media control modules and EnOcean components. Compact installation depth of 65 mm allows integration into typical desk constructions while the stainless steel construction with white finish offers durable protection and neat looks.

Suitable for

Key specifications

How to use

Cut an installation opening in the desktop compatible with the box dimensions and the specified desk thickness (12–48 mm). Connect the mains supply using the included 3-pin GST 18 plug. Snap the unit into place using the click mounting mechanism for tool-free fixation from above. Install Konnect flex 45 adapter plates or additional modules into the empty insets as required. Ensure the USB charging adapter and mains socket are accessible on the desktop surface and verify electrical connections before use.

Recommendations

Install the unit following local electrical codes and, if necessary, have the mains connection performed by a qualified electrician. Verify desk material and thickness before cutting the opening. For optimal appearance, use level-mounted adapter plates from the Konnect flex 45 series.
