Stropný držiak Kindermann Premium 100

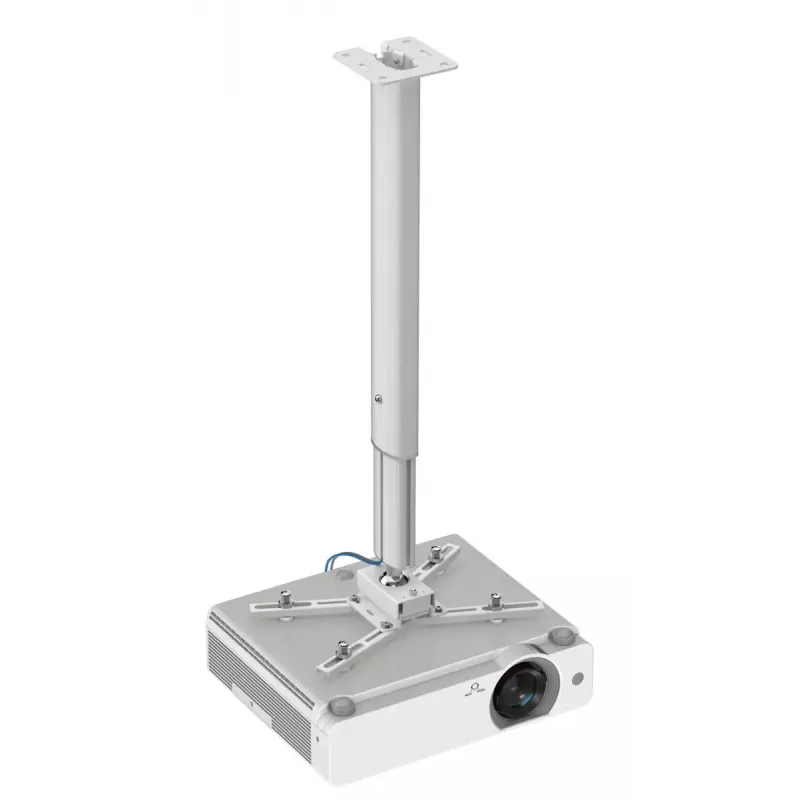

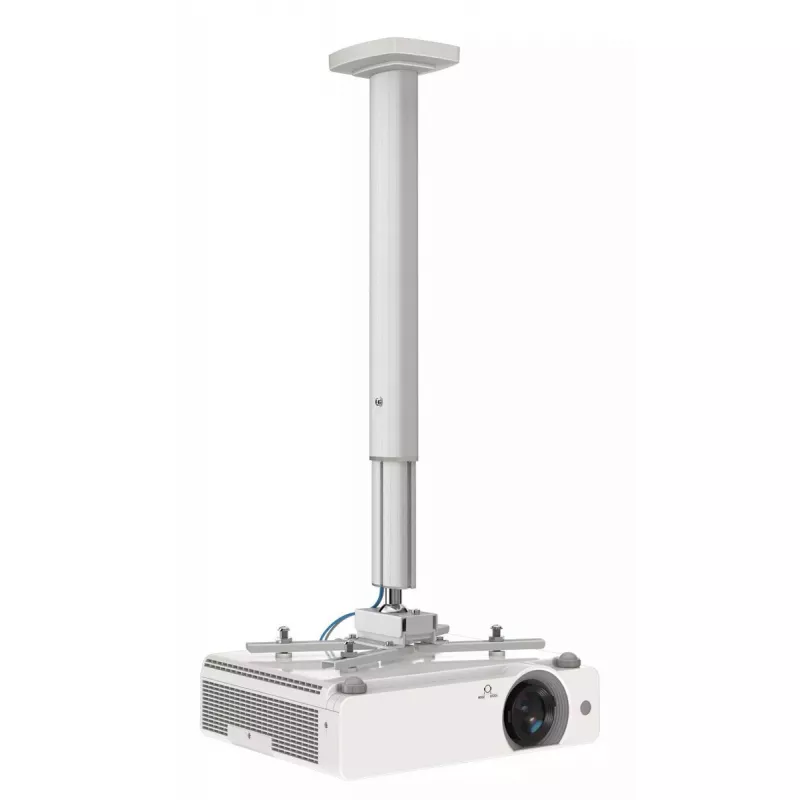

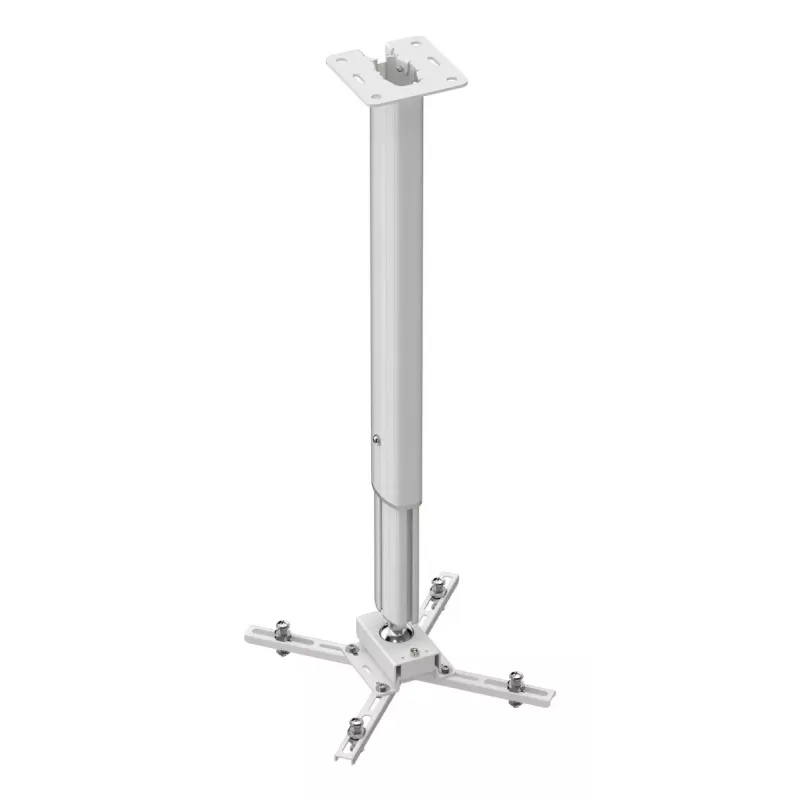

The Kindermann Premium 100 ceiling mount is a high-quality mounting solution for data and video projectors. Finished in RAL9003 white, the mount offers a telescopic column with an adjustable installation distance from the ceiling of 61–100 cm and supports projectors up to 25 kg. The design includes an anodized aluminium profile with a fully covered interior cable channel and an aluminium ball-point joint for precise alignment.

Advantages

Pre-assembled components allow for quick mounting and the stepless telescopic height adjustment simplifies positioning. The aluminium ball-point joint with a quick-change system enables tilting of ±20° in all directions and rotation of ±180°. The interior cable channel keeps cables concealed and the mount is TÜV/GS certified. Custom-made columns up to 300 cm are available on request.

Suitable for

Key specifications

How to use

Mount the pre-assembled column to a suitable ceiling anchor following the fixing point spacing of 138–378 mm. Route the projector cables through the covered interior channel of the anodized aluminium profile. Attach the projector using the supplied screw set (M3, M4, M5, M6) and height-adjustable distance elements. Adjust the column height steplessly within the 61–100 cm range and use the aluminium ball-point joint to set the required tilt (±20°) and rotation (±180°) for precise projector alignment.

Recommendations

For safe installation, ensure the ceiling structure and chosen anchors support the projector weight plus safety margin. Use the supplied screw set and check all fastenings after initial operation. For custom lengths up to 300 cm or special mounting needs, request a tailored solution from the manufacturer or an authorized dealer.
