Strešný ventilátor Digitus DN-19 FAN-2-WM-T-SW

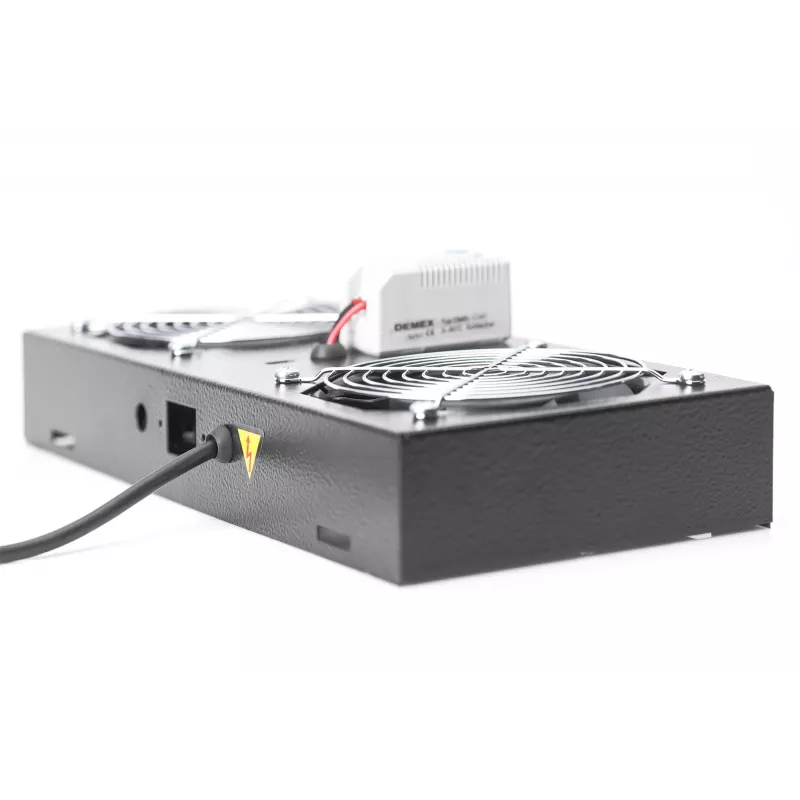

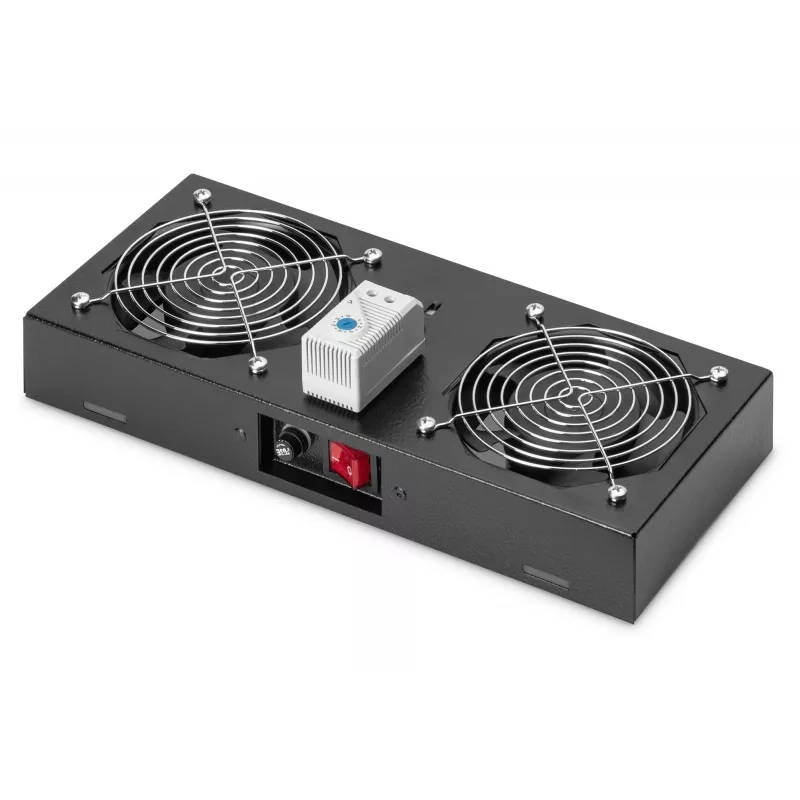

The DIGITUS 483 mm (19") roof ventilator DN-19 FAN-2-WM-T-SW is designed for wall-mounted 19" cabinets and network or server cabinets. The unit has a sturdy steel housing, two fans and is available in grey (RAL 7035) or black (RAL 9005). It is intended for installation in the roof module of compatible cabinets and connects to AC mains with a Type F plug. With a width of 345 mm and a depth of 150 mm it provides forced ventilation to maintain optimal equipment operating conditions.

Advantages

The roof ventilator is built to German standards with a robust steel sheet housing and dual-fan design for effective air circulation. An integrated switch and adjustable thermostat allow straightforward control of operation. Compact external dimensions and standard 483 mm (19") form factor enable easy installation into compatible wall-mount and unmounted cabinets. Available in two standard colours to match cabinet finishes.

Suitable for (tasks / use cases)

• Wall-mounted 19" network and server cabinets
• Uninstalled (EC) network and server cabinets with compatible roof module
• Applications requiring controlled ventilation and temperature regulation

Key specifications

• Model: DN-19 FAN-2-WM-T-SW
• Type: Roof ventilator for 483 mm (19") cabinets
• Housing: Sturdy steel sheet
• Fans: 2 fans (dual-fan design)

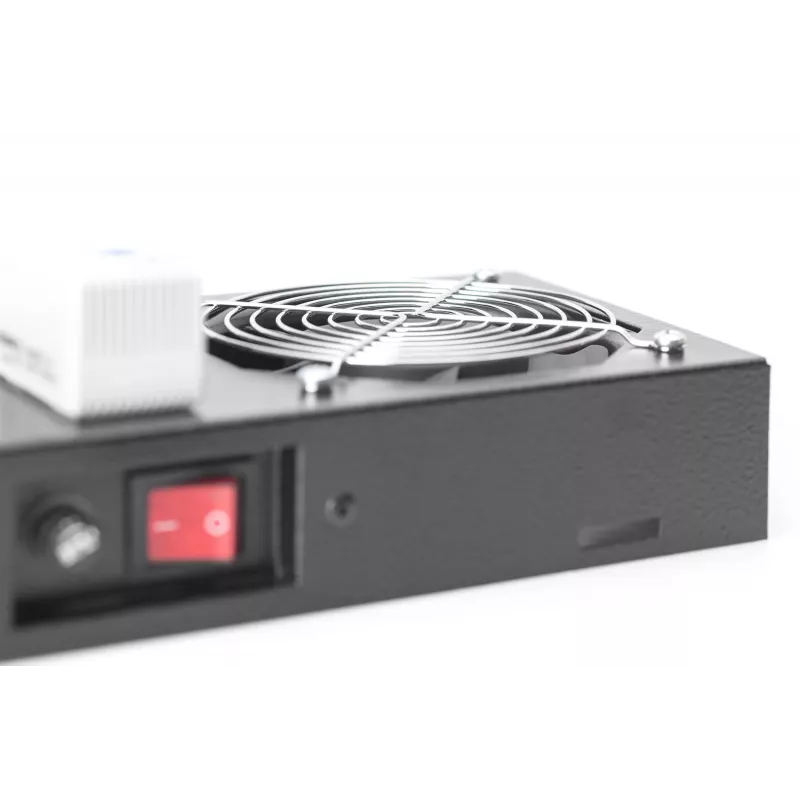

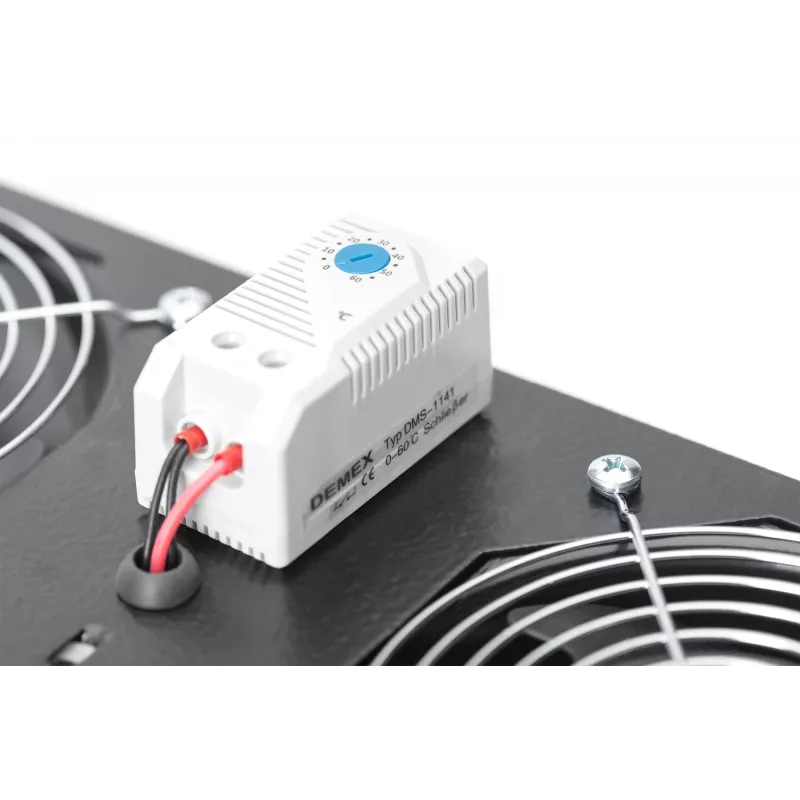

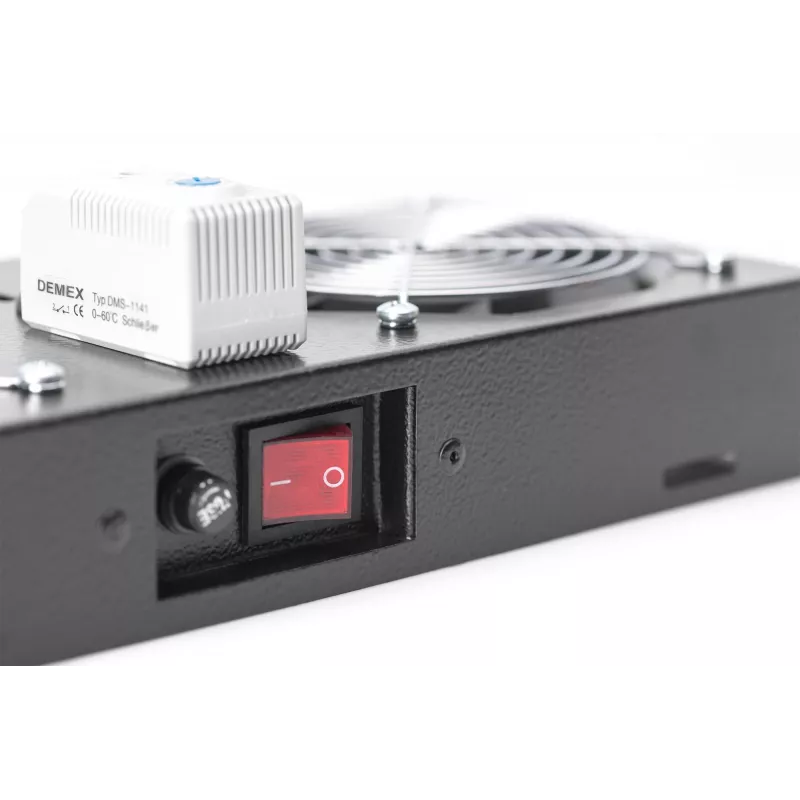

• Controls: On/off switch and adjustable thermostat
• Power connection: AC with Type F plug
• Colour: Grey (RAL 7035) or Black (RAL 9005)
• Dimensions (unit): 345 mm (W) x 150 mm (D)

How to use

Install the roof ventilator into the roof module of a compatible 19" wall-mount or unmounted cabinet following the cabinet manufacturer's instructions. Secure the unit using the provided fixing points. Connect the unit to an appropriate AC mains outlet using the Type F plug. Use the on/off switch to start the fans and set the desired activation threshold with the adjustable thermostat to control when the fans run based on internal cabinet temperature.

Recommendations

Mount the ventilator only in compatible 483 mm (19") cabinets and ensure adequate clearance for airflow. Set the thermostat to activate the fans before equipment reaches high operating temperatures and perform periodic checks of fan operation and dust filters to maintain airflow efficiency.
