Stropný držiak Vision TM-TELE

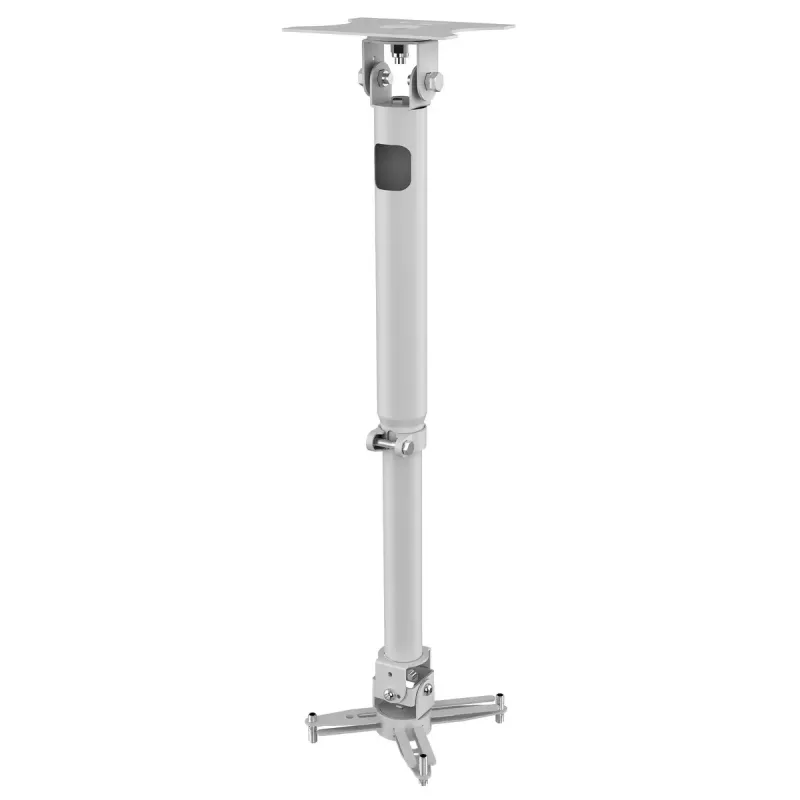

The Vision TM-TELE is a universal ceiling mount for projectors, featuring a telescopic pole with an overall adjustable length from 440 mm to 735 mm. It provides full adjustment: a tilt at the top for sloping ceilings and pitch and roll adjustments at the bottom. The pole can be removed for a flush mount close to the ceiling. The mount is designed for ceiling installation, supports a recommended maximum safe working load of 10 kg, and comes in white to blend with most interiors.

Advantages

The telescopic design allows fast deployment and depth adjustment without cutting or drilling the pole. A one-handed length adjustment clamp simplifies installation by a single person. The top tilt mechanism permits up to 90° tilt for sloping ceilings or boom-style positioning. A mechanical stop and a fall-arrest tether add safety, and multiple screw options and a spider-style arm layout fit a wide range of projector threaded inserts. Cable access is unobstructed thanks to the chute-through system. Basic tools and a drill bit for the hex key are included.

Suitable for

• Ceiling mounting data projectors in meeting rooms and classrooms
• Homes or offices requiring a white, low-profile mount
• Installations where a single installer performs the fit
• Setups needing tilt adjustment for sloping ceilings or precise alignment

Key specifications

• Model: Vision TM-TELE
• Mounting type: Ceiling
• Overall length (adjustable): 440–735 mm
• Recommended maximum safe working load: 10 kg
• Colour: White
• Adjustments: Top tilt (up to 90°), pitch and roll at bottom
• Safety features: Fall-arrest tether, mechanical pole stop, security bolts

How to use

Position the ceiling plate and secure the mount to a suitable structural ceiling anchor. Adjust the telescopic pole to the required length using the one-handed clamp, or remove the pole for flush mounting. Fit the spider arms over the projector’s threaded inserts and choose the appropriate screws supplied to attach the projector. Route cables through the chute-through channel to maintain unobstructed access for connectors. Use the tilt, pitch and roll adjustments to align the projected image.

Recommendations

Follow local building and installation standards when fastening the mount; Vision recommends not exceeding the 10 kg safe working load. Use appropriate ceiling fixings for the substrate and check all fastenings and the fall-arrest tether after installation and periodically thereafter.
