Switch DAHUA SF1005-EUR 5-portový 10/100 Mbit/s unmanaged switch

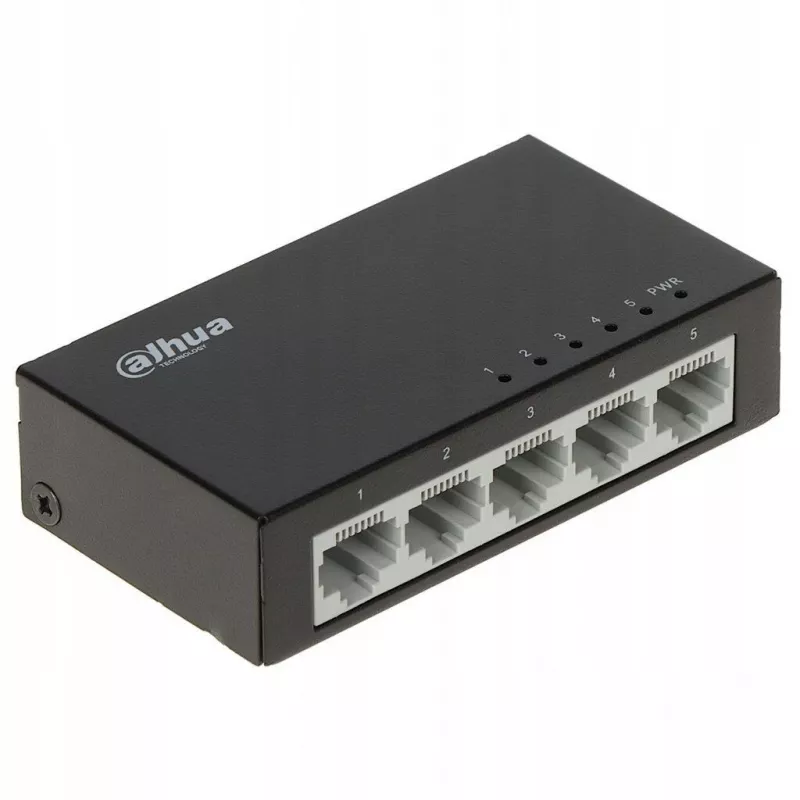

DAHUA NET SWITCH SF1005-EUR is a compact unmanaged network switch with five 10/100 Mbps Fast Ethernet ports. The plug-and-play device expands wired Ethernet connectivity for cameras, NVRs, computers and other network devices without requiring configuration. Its small footprint and lightweight design make it suitable for small offices, retail environments and home networks where additional ports and simple cabling are needed.

Advantages

The SF1005-EUR provides five Fast Ethernet ports in a compact housing, supporting a switching capacity of 1 Gbps and a forwarding rate of 0.744 Mpps. As an unmanaged switch it requires no setup or management, ensuring immediate operation after connection. Its compact dimensions (87 x 47 x 22 mm) and low net weight (0.09 kg) allow flexible placement in constrained spaces.

Suitable for

• Expanding wired connections for IP cameras and NVRs
• Small office desktop networking
• Home networks needing additional Ethernet ports
• Retail or point-of-sale network expansions

Key specifications

• Model: DAHUA SF1005-EUR (MPN: SF1005-EUR)
• Ports: 5 × 10/100 Mbps Fast Ethernet
• Switching capacity: 1 Gbps
• Forwarding rate: 0.744 Mpps
• Dimensions: 87 × 47 × 22 mm
• Net weight: 0.09 kg
• Type: Unmanaged switch
• EAN: 6923172590411

How to use

Place the SF1005-EUR on a stable surface near your network devices and connect its power adapter if required. Use standard Ethernet cables to connect cameras, NVRs, computers or other devices to any of the five RJ‑45 ports. The switch operates in plug-and-play mode without configuration; connected devices will communicate through the switch automatically. Verify link/activity LEDs for connection status and ensure connected equipment uses compatible 10/100 Mbps Ethernet settings.

Recommendations

Install the switch in a well-ventilated, dry location away from heat sources and direct sunlight. For optimal performance, avoid overloading the switch with sustained traffic at or above its maximum forwarding capacity and use quality Ethernet cables appropriate for Fast Ethernet.
