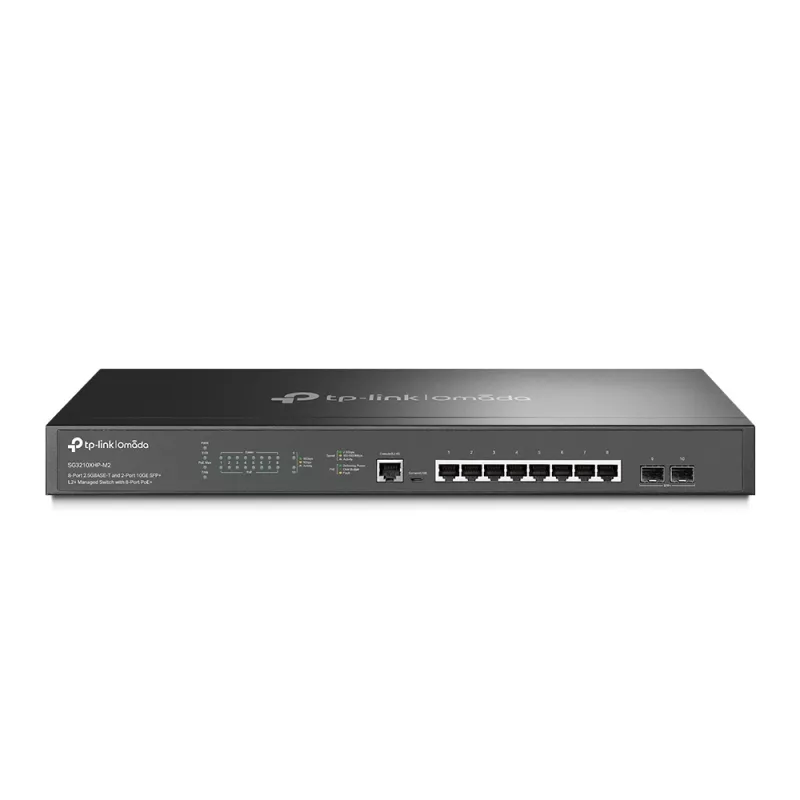

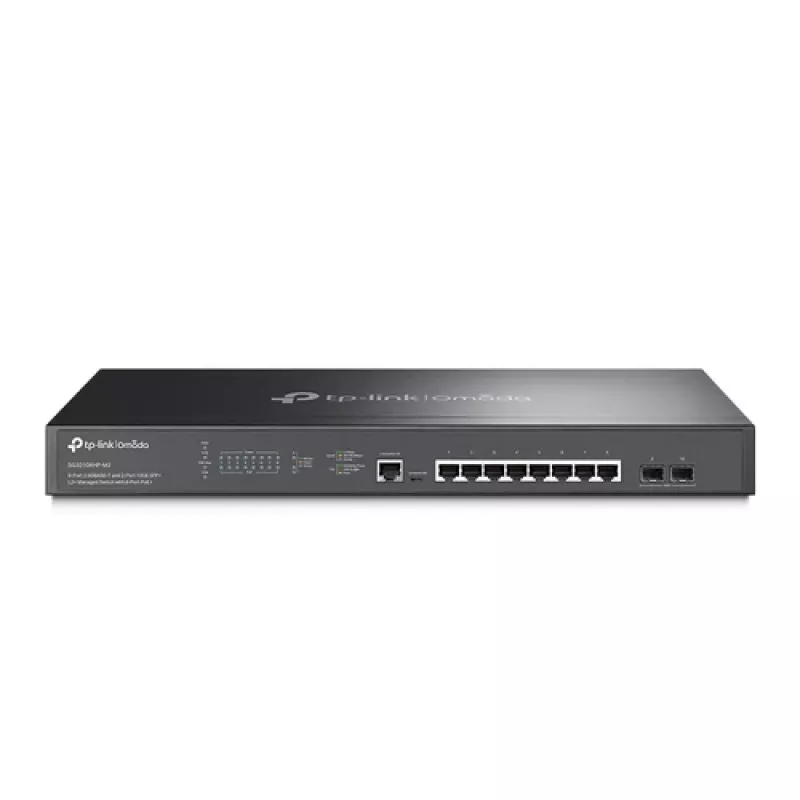

TP-Link Omada SG3210XHP-M2 8-portový 2,5G PoE+ managed switch s 2x 10G SFP+ SG3210XHP-M2(UN)

Modern businesses demand more from their network infrastructure than ever before. The TP-Link Omada SG3210XHP-M2 answers the call for high-bandwidth connectivity and reliable power delivery in a single, rack-mountable unit. With eight 2.5 Gigabit RJ45 ports, each capable of PoE+ output, and two 10 Gigabit SFP+ uplink slots, this L2+ managed switch eliminates bottlenecks and simplifies deployment for access points, IP cameras, and high-performance workstations.

Who is it for

This switch is ideal for small and medium-sized businesses, branch offices, or advanced home users who need to power multiple PoE devices while ensuring high-speed wired connectivity. It suits network administrators who require robust management features, VLAN segmentation, and seamless integration with the Omada SDN platform for centralized control.

Main features

• 8x 2.5 Gigabit RJ45 ports with IEEE 802.3af/at PoE+ support and a total power budget of 240 W.
• 2x 10 Gigabit SFP+ slots for high-speed uplinks to core switches or servers.
• 80 Gbps switching capacity and 59.52 Mpps packet forwarding rate for smooth traffic handling.
• Comprehensive L2+ features: 802.1Q VLAN, port-based VLAN, GVRP, QoS, ACL, and 802.1X authentication.
• Flexible management via web GUI, CLI (console, Telnet, SSH), SNMP, and Omada SDN Controller.
• Rack-mountable 1U form factor with two smart fans for efficient cooling.

Specifications

• Ports: 8x 2.5G RJ45, 2x 10G SFP+
• PoE Standard: IEEE 802.3af/at (PoE+) on all RJ45 ports
• PoE Power Budget: 240 W
• Switching Capacity: 80 Gbps
• Packet Forwarding Rate: 59.52 Mpps
• MAC Address Table: 16K entries
• Jumbo Frame Support: 9 KB
• VLAN Support: 802.1Q tag-based, port-based, protocol-based, GVRP
• QoS: 802.1p CoS/DSCP, bandwidth control, storm control
• Security: ACL, port security, DoS defend, 802.1X, IP-MAC-port binding
• Management: Web GUI, CLI, SNMP, RMON, Omada SDN
• Power Supply: Internal AC 100-240V, 50/60Hz
• Operating Temperature: 0–50 °C
• Dimensions (W x D x H): 440 x 330 x 44 mm
• Weight: 4.2 kg

Tips

To maximize performance, connect high-bandwidth devices like Wi-Fi 6 access points or NAS units to the 2.5G ports, and use the 10G SFP+ slots for uplinks to a core switch or server. Enable the Omada SDN controller for centralized management and seamless roaming. Ensure proper ventilation in the rack to maintain optimal operating temperature.
