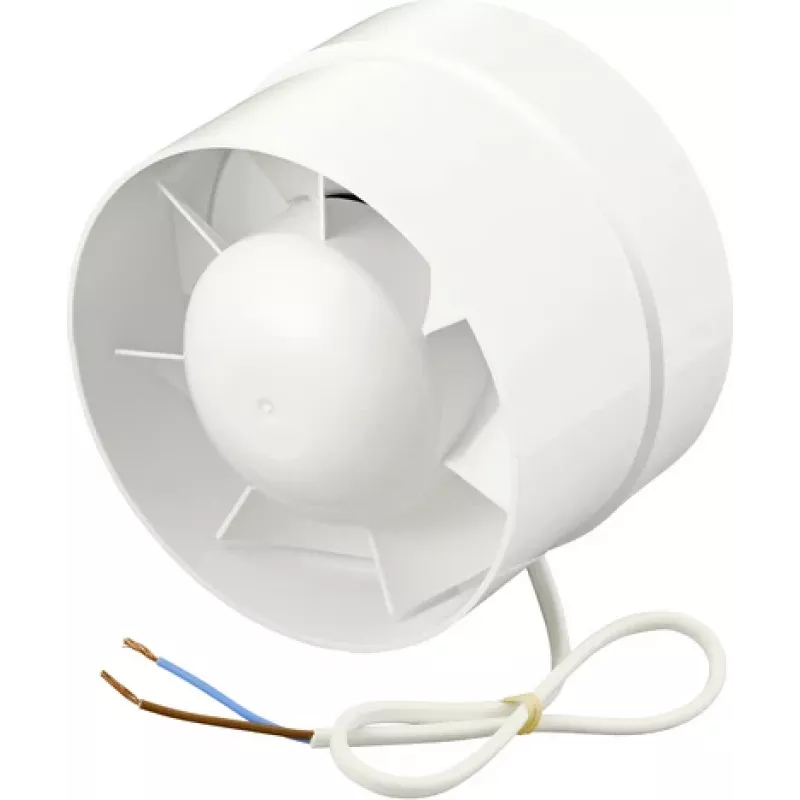

Sygonix SY-5233250 Inline potrubný ventilátor 230 V/AC 240 m³/h 125 mm biely

Inline duct fan for 125 mm ducting, delivering an airflow rate of 240 m³/h at 230 V/AC. Its axial design with ball bearings ensures reliable operation in ventilation systems.

Advantages

Compact ABS plastic housing for easy insertion into ductwork. IPX4 rating provides protection against splashing water. Low noise level of 35 dB.

Suitable for

• Ventilation in bathrooms and kitchens
• Extraction of stale air in residential and commercial spaces
• Duct systems with 125 mm diameter

Key specifications

• Airflow rate: 240 m³/h
• Operating voltage: 230 V/AC
• Power consumption: 20 W
• Duct diameter: 125 mm
• Noise level: 35 dB
• Speed: 2400 rpm
• Frequency: 50 Hz
• Current consumption: 0.1 A
• Bearing type: Ball bearing
• Housing material: ABS plastic
• Fan type: Axial fan
• Mounting type: Duct insertion
• Operating temperature range: -10 to +40 °C
• Protection class: IPX4
• Colour: White

Recommendations

For optimal performance, install in a straight section of ducting with minimal bends. Ensure the fan is accessible for maintenance.
