Sygonix SY-6440992 SYG-MCB 3P/B13/6KA istič 3-pólový 13A 415V 6kA

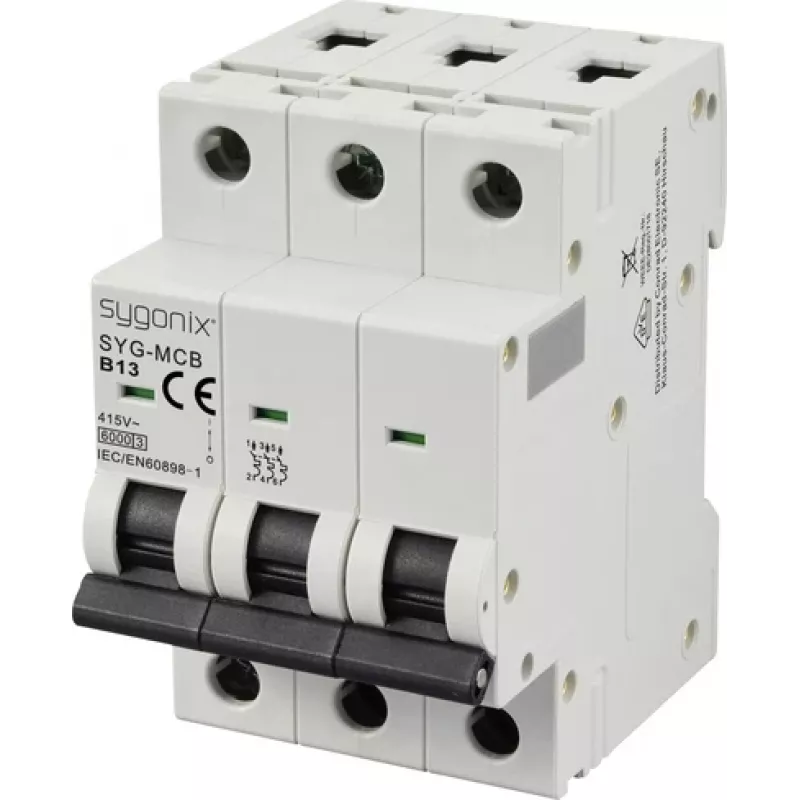

Protect three-phase circuits in industrial control panels and distribution boards with the Sygonix SY-6440992 miniature circuit breaker. This 3-pole MCB is rated for 13 A and 415 V AC, with a type B tripping characteristic and 6 kA breaking capacity, making it suitable for protecting cables and equipment against overload and short-circuit currents.

Key specifications

• Number of poles: 3
• Rated current: 13 A
• Tripping characteristic: B
• Rated voltage: 415 V AC
• Breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Module width: 3 modules

Why choose it

This MCB offers reliable protection for three-phase circuits, with a compact design that fits standard DIN rails. Its type B curve ensures fast tripping on moderate overloads, while the 6 kA breaking capacity handles common fault levels in commercial and industrial installations.

Ideal use cases

• Protecting three-phase motors and control circuits
• Distribution boards in commercial buildings
• Industrial machinery and panel boards

Good to know

The breaker complies with IEC/EN 60898-1 and has an IP20 protection degree, making it suitable for installation in enclosed distribution boards. Screw terminals provide secure wiring.
