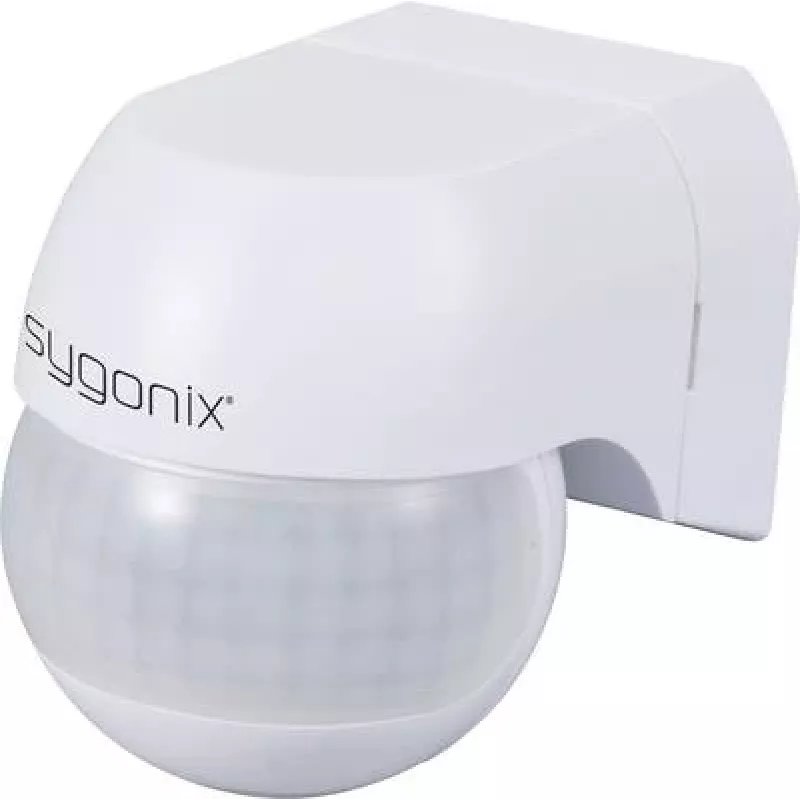

Sygonix SY-6733024 nástenný PIR pohybový senzor 360° 180° relé biely

Install this Sygonix PIR motion detector on a wall to automatically switch lighting in hallways, stairwells, garages or entrances. It detects movement across a 180° angle and up to 12 m away, switching connected loads via its built-in relay. The white polycarbonate housing suits indoor and sheltered outdoor locations.

Key specifications

• Detection angle: 180°
• Detection range: up to 12 m
• Mounting type: wall surface mount
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (incandescent): 1200 W
• Max. switching capacity (LED/fluorescent): 300 W
• IP rating: IP44
• Time delay setting: 10 seconds – 15 minutes (adjustable)
• Light sensitivity: 3 – 2000 lux (adjustable)
• Recommended installation height: 1.8 – 2.5 m
• Housing material: polycarbonate (PC)
• Colour: white
• Switching output: relay
• Standby power consumption: <0.5 W
• Operating temperature: -20 to +40 °C

Why choose it

The adjustable time delay and light sensitivity let you tailor activation to the environment. The relay output handles both incandescent and LED/fluorescent loads, and the IP44 rating provides protection against splashing water.

Ideal use cases

• Automatic lighting in corridors and stairwells
• Garage and entrance illumination
• Security lighting for residential or commercial premises

Good to know

Install at a height of 1.8 to 2.5 m for optimal coverage. The detector operates on standard 230 V AC mains and consumes less than 0.5 W in standby.
