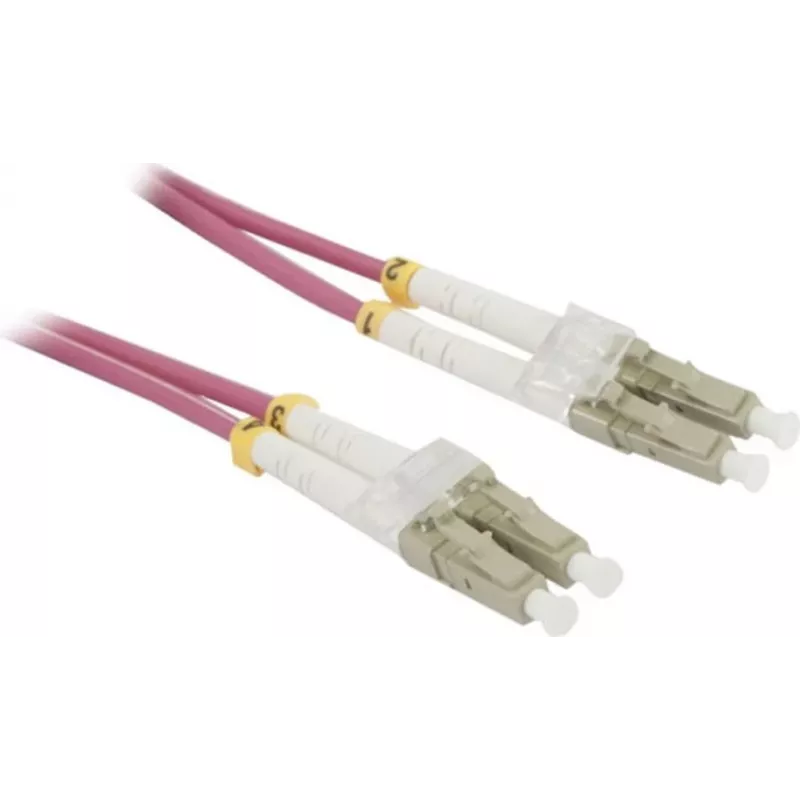

Synergy 21 15m OM4 LC-LC duplex optický patch kábel, fialový

The Synergy 21 15m OM4 LC-LC Duplex Fiber Optic Patch Cable is a high-performance, pre-terminated fiber optic cable designed for reliable, high-speed data transmission in enterprise networks, data centers, and telecommunications environments. With a length of 15 meters and OM4 multimode fiber, this cable supports data rates up to 100GbE, making it ideal for demanding applications.

Advantages

This cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation and reliable performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The duplex LC connectors are easy to install and provide a secure connection.

Suitable for

• Connecting network switches, routers, and servers in data centers
• High-speed backbone cabling for 10GbE, 40GbE, and 100GbE networks
• Fiber-to-the-desk (FTTD) applications
• Telecommunications and broadcast environments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multi-mode (MM) OM4
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable Length: 15 m
• Jacket Color: Violet
• Core/Cladding Diameter: 50/125 µm
• Number of Fibers: 2
• Cable Construction: Duplex
• Maximum Bandwidth (850nm): 4700 MHz-km
• Maximum Bandwidth (1300nm): 500 MHz-km
• Supported Data Rates: 1GbE, 10GbE, 40GbE, 100GbE
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: -20°C to 70°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces. Ideal for use with Synergy 21 networking equipment.
