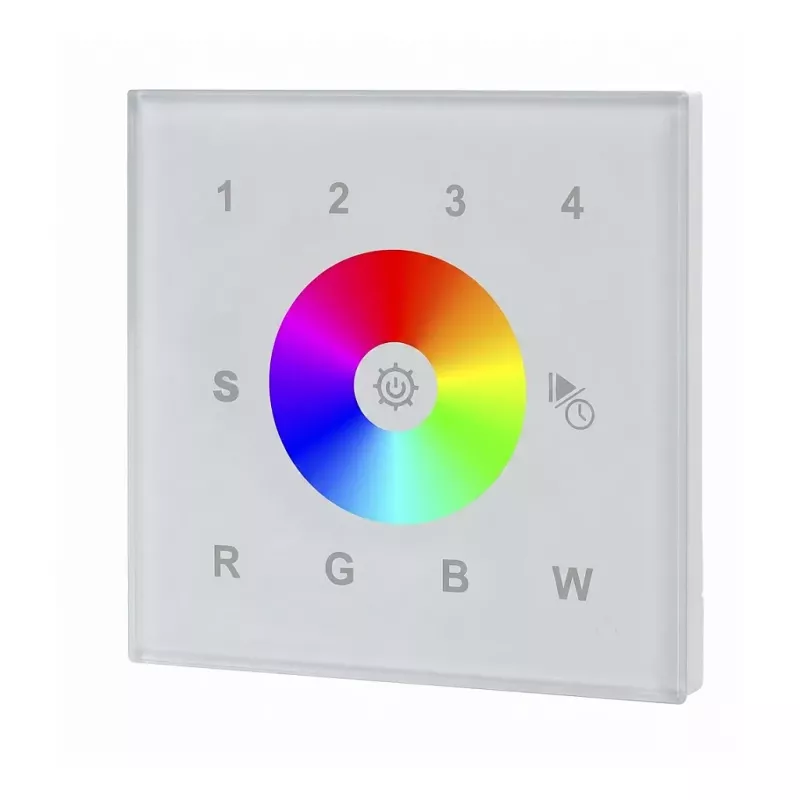

SYNERGY21 LED séria EOS 03 DMX512 RGB-W nástenný vypínač biela +WiFi

The SYNERGY21 LED Serie EOS 03 is a sophisticated DMX512 wall controller designed for professional RGB-W LED lighting systems. Combining capacitive touch control with WiFi connectivity, this wall switch offers intuitive operation via its glass touch panel or a smartphone app (iOS/Android). It supports up to 4 independent zones, each with 4 channels (R, G, B, W), enabling precise color selection, brightness adjustment (0-100%), saturation control, dynamic programs, and scene recall. The sleek white design with a glass front panel and plastic housing is flush-mounted (IP20) and operates on DC 12-24V input, consuming less than 1W. Ideal for residential, commercial, and hospitality environments, it is compatible with DMX512 decoders/drivers and certified CE and RoHS.

Advantages

This controller offers seamless integration of DMX512 and WiFi, allowing both local touch control and remote management via smartphone. The capacitive touch panel provides a modern, responsive interface, while the 4-zone capability enables independent control of multiple lighting areas. With 0-100% dimming and dynamic programs, it delivers versatile lighting scenes for any mood or occasion.

Suitable for

• Residential smart lighting systems
• Commercial spaces (offices, retail, restaurants)
• Hospitality venues (hotels, bars, lounges)
• Architectural accent lighting
• Stage and event lighting

Key specifications

• Product Type: DMX512 Wall Controller
• Controlled LED Type: RGB-W (Red, Green, Blue, White)
• Control Protocol: DMX512
• Connectivity: WiFi
• Control Zones: 4 Zones
• Input Voltage: DC 12-24V
• Output Signal: DMX512
• Control Method: Capacitive Touch Panel, Smartphone App (iOS/Android)
• Dimming Range: 0-100%
• Color: White
• Material: Glass front panel, Plastic housing
• Mounting Type: Flush-mounted (Unterputz)
• Operating Temperature: -20°C to +60°C
• Protection Class: IP20
• Functions: Color selection, brightness adjustment, saturation control, dynamic programs, scene recall
• Compatibility: DMX512 decoders/drivers
• Display: High-sensitivity glass touch panel
• Channels per Zone: 4 (R, G, B, W)
• Power Consumption: <1W
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with compatible DMX512 LED drivers and ensure proper flush-mount installation. Use the Synergy 21 app for advanced scene programming and remote control.
