SYNERGY21 optický patch kábel 10m LC-LC APC 9/125µm OS2 G.657.A2 simplex 2mm LSZH žltý

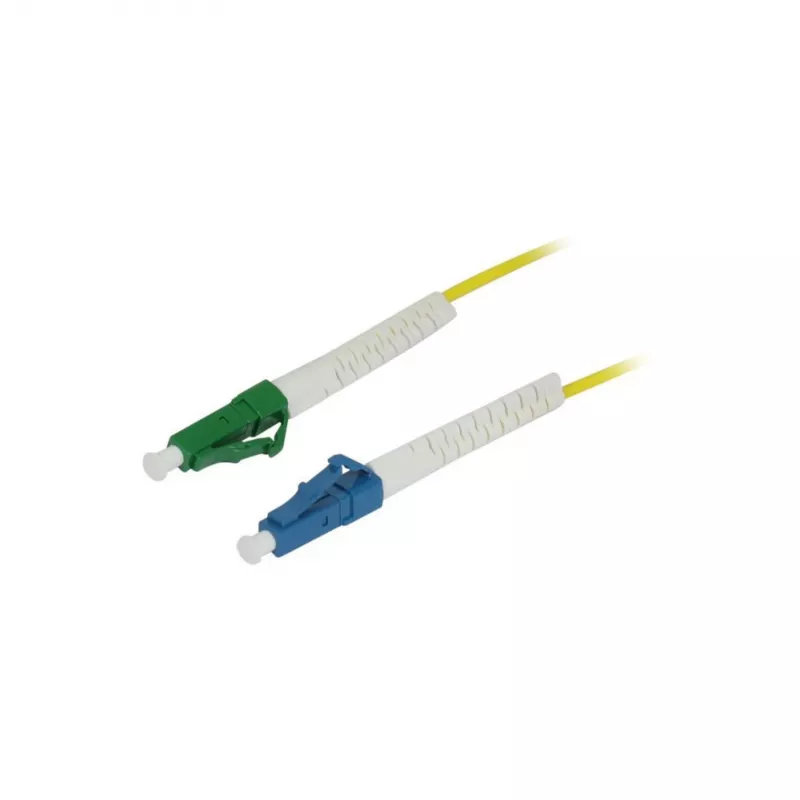

The SYNERGY21 S215727 is a high-quality single-mode fiber optic patch cable designed for reliable, high-speed data transmission in demanding network environments. With a length of 10 meters and LC/APC connectors on both ends, this simplex cable ensures low insertion loss and high return loss, making it ideal for FTTH, data centers, and LAN applications. The bend-insensitive G.657.A2 fiber and 2mm LSZH jacket provide flexibility and safety.

Advantages

This fiber optic patch cable offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The APC polish minimizes back reflection, ensuring signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it safe for indoor use. Its flexible design with enhanced bend radius allows easy installation in tight spaces.

Suitable for

• Data centers and server rooms
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Telecommunications and broadband networks
• Indoor fiber optic cabling

Key specifications

• Fiber Type: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Fiber Class: G.657.A2 (Bend-Insensitive)
• Connectors: LC/APC to LC/APC
• Polish: APC (Angled Physical Contact)
• Length: 10 m
• Number of Fibers: 1 (Simplex)
• Cable Diameter: 2 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Yellow
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/APC interfaces. Ideal for high-speed networks requiring low latency and high reliability.
