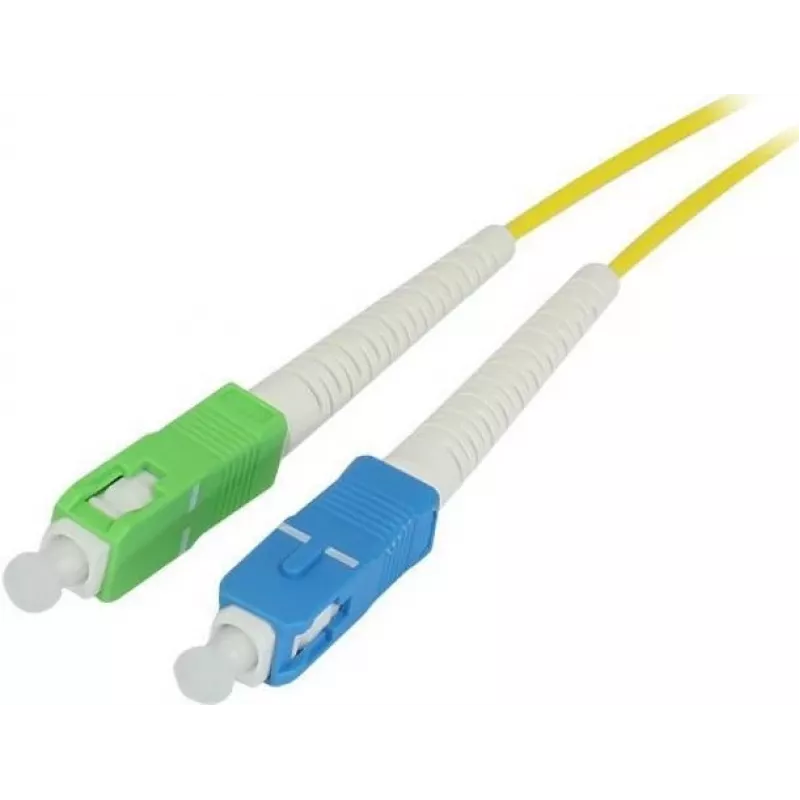

SYNERGY21 optický patch kábel 15m SC/APC na SC/APC singlemode OS2 G.657.A2 9/125µm 2mm ochranná manžeta proti ohybu

The SYNERGY21 S215738 fiber optic patch cable is a high-performance single-mode patch cord designed for reliable data transmission in demanding network environments. With a length of 15 meters and SC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, data centers, and telecommunications applications. The 9/125µm core/cladding diameter complies with OS2 standards, while the G.657.A2 bend-insensitive fiber allows for tight bends without signal degradation. The 2mm outer diameter and flexible bend protection boot provide durability and ease of installation in confined spaces.

Advantages

This patch cable offers exceptional signal integrity and minimal attenuation over long distances. The APC polish reduces back reflection, critical for high-speed networks. The bend-insensitive design ensures reliable performance even when routed around corners or through narrow conduits. The compact 2mm jacket saves space and simplifies cable management.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications infrastructure
• FTTH (Fiber to the Home) installations
• Local area networks (LAN) with single-mode fiber

Key specifications

• Fiber type: Single-Mode (OS2)
• Connectors: SC/APC to SC/APC
• Core/Cladding: 9/125 µm
• Fiber standard: ITU-T G.657.A2
• Cable length: 15 m
• Outer diameter: 2 mm
• Number of fibers: 1
• Bend protection: Flexible boot

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC/APC ports. Avoid exceeding the minimum bend radius of the G.657.A2 fiber to maintain signal quality.
