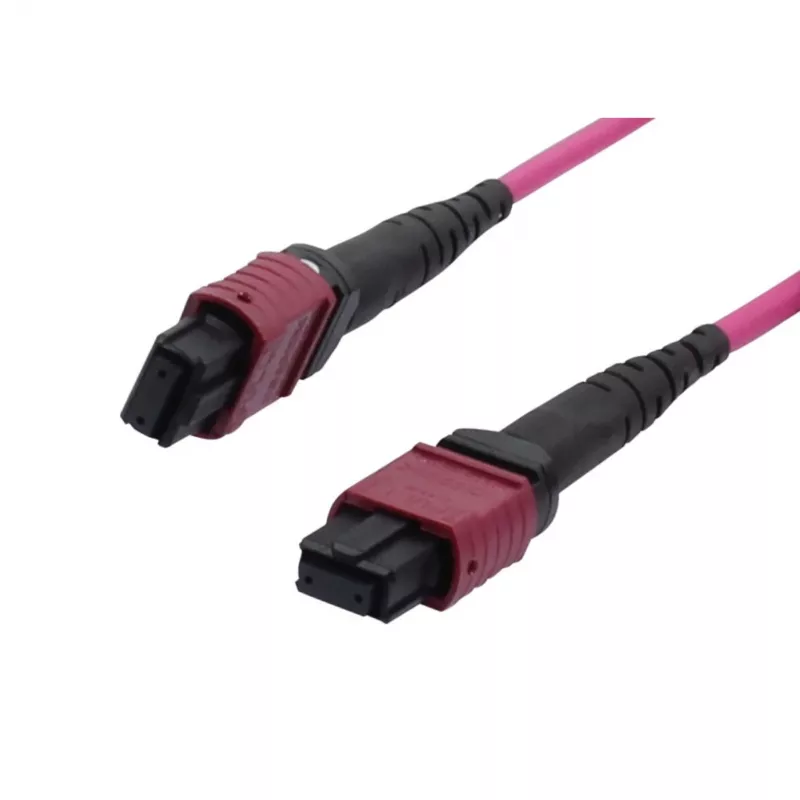

SYNERGY21 optický patch kábel OM4 Low Loss Elite 12 vlákien Type B Crossed MTP Female - Erika Violet - 0,5 m

The SYNERGY21 Fiber Optic Patch Cable OM4 Low Loss Elite is a high-performance 12-fiber MTP female to MTP female patch cable designed for demanding data center and high-speed network environments. With a length of 0.5 meters, this cable features Type B (crossed) polarity and ultra-low loss connectors, ensuring optimal signal integrity for 10GbE, 40GbE, 100GbE, and 400GbE applications. The Erika violet jacket is made from LSZH (Low Smoke Zero Halogen) material, providing safety and durability.

Advantages

Ultra-low insertion loss (<0.35 dB per connector pair) ensures minimal signal degradation. The OM4 multimode fiber supports high bandwidth over short distances, making it ideal for high-speed interconnects. LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• Data center backbone connections
• High-speed network interconnects (10/40/100/400GbE)
• Storage area networks (SAN)
• Telecommunications rooms

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector Type (End A): MTP Female
• Connector Type (End B): MTP Female
• Cable Length: 0.5 m
• Polarity: Type B (Crossed)
• Insertion Loss: Ultra Low Loss Elite (<0.35 dB per connector pair)
• Jacket Color: Erika Violet
• Jacket Material: LSZH
• Connector Ferrule Material: Zirconia Ceramic
• Connector Polishing: PC/UPC
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 7.5 mm
• Compliance: RoHS, REACH, TIA/EIA-568-C.3
• Cable Diameter: Approx. 3.0 mm
• Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1300nm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with MTP/MPO adapters and cassettes. Store in a clean, dry environment within the specified temperature range.
