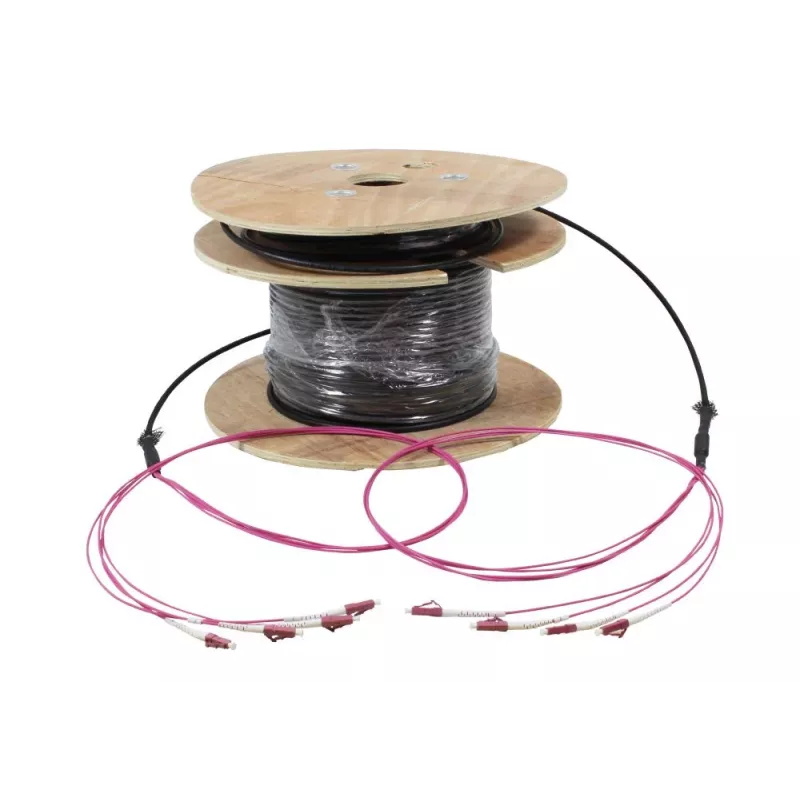

SYNERGY21 S217055V2 optický trunk kábel, OM4, 4 vlákna, LC na LC, 60 m, bezhalogénový, na bubne

With a bandwidth of 4700 MHz·km at 850 nm, this OM4 multimode trunk cable delivers high-speed data transmission for backbone and data center applications. It features 4 fibers with 50/125 µm core/cladding, terminated with LC connectors on both ends, and comes in a 60 m length on a drum.

Overview

The SYNERGY21 S217055V2 is a universal fiber optic trunk cable with U-DQ(ZN)BH construction, suitable for indoor and outdoor use. The halogen-free, flame-retardant outer sheath ensures safety in building installations. The aqua jacket identifies it as OM4 multimode fiber.

What stands out

• OM4 fiber supports 10 Gb/s Ethernet up to 550 m and 40/100 Gb/s up to 150 m.
• Halogen-free and flame-retardant sheath for enhanced fire safety.
• Pre-terminated with LC connectors for quick deployment.
• Supplied on a drum for easy pulling and storage.

Technical details

• Cable type: Fiber optic trunk cable
• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Number of fibers: 4
• Connectors: LC to LC
• Length: 60 m
• Construction code: U-DQ(ZN)BH
• Outer sheath: Halogen-free, flame retardant
• Application: Universal (indoor/outdoor)
• Packaging: On drum
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Jacket color: Aqua

Our verdict

A reliable OM4 trunk cable for high-density fiber installations, offering excellent bandwidth and safety features in a convenient drum packaging.
