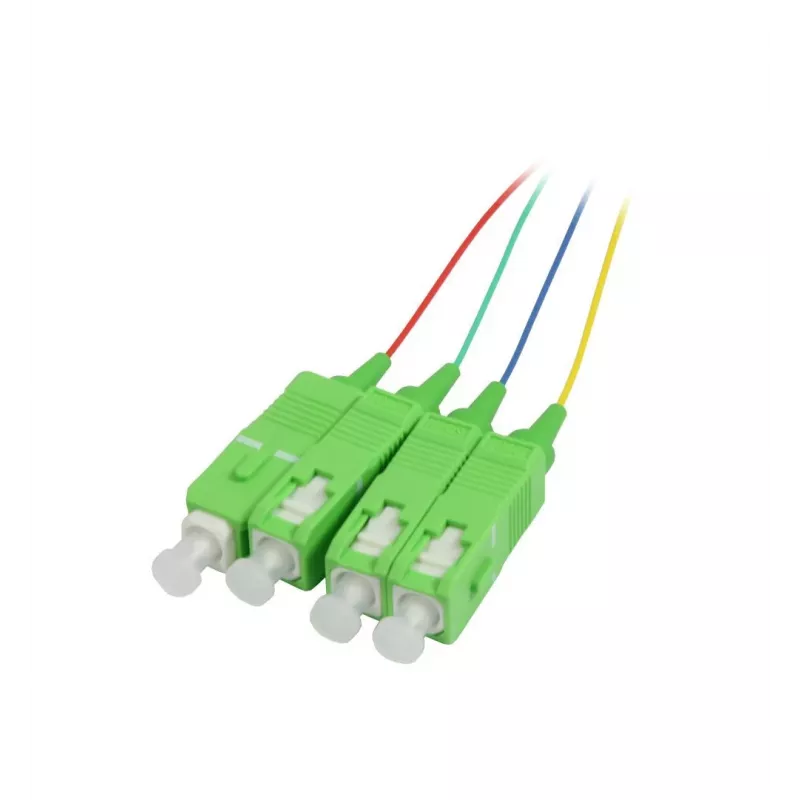

Synergy 21 LWL pigtail SC/APC 9/125µm 1,5m OS2 4-pack farebne kódovaný G.657.A2 (S215599V1)

The Synergy 21 LWL Pigtail SC/APC 9/125µm 1.5m OS2 4-Pack is a high-quality fiber optic pigtail designed for single-mode applications. Each pigtail features an SC/APC connector with a 9/125µm core/cladding and is compliant with OS2 standards. The G.657.A2 bend-insensitive fiber ensures reliable performance even in tight installations. This 4-pack includes color-coded pigtails for easy identification, making it ideal for telecommunications, data centers, FTTH, and LAN networks.

Advantages

Color-coded pigtails simplify cable management and reduce installation errors. The bend-insensitive G.657.A2 fiber allows for tighter bends without signal loss, perfect for high-density environments. Low insertion loss (<0.3 dB) and high return loss (>60 dB) ensure excellent signal integrity.

Suitable for

• Telecommunications networks
• Data centers
• FTTH (Fiber to the Home) installations
• Local area networks (LAN)

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Mode: Single-mode
• Fiber Standard: OS2
• Connector Type: SC/APC
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Cable Length: 1.5 m
• Fiber Class: G.657.A2 (Bend-Insensitive)
• Pack Quantity: 4 pigtails
• Color Coding: Yes (Color-coded)
• Connector Polish: APC (Angled Physical Contact)
• Typical Insertion Loss: <0.3 dB
• Typical Return Loss: >60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with compatible SC/APC adapters and ensure proper cleaning before installation. Ideal for high-speed data transmission in structured cabling systems.
