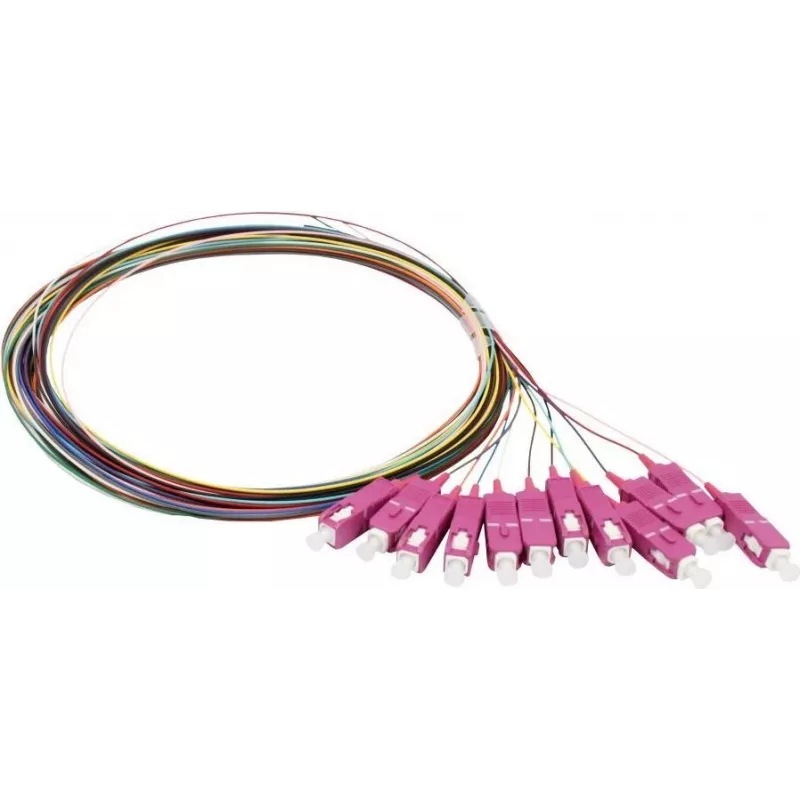

Synergy 21 S215524 optický pigtail SC OM4 2m balenie 12 ks farebné

The Synergy 21 S215524 is a high-quality fibre optic pigtail assembly designed for reliable and high-speed data transmission in modern network infrastructures. This 12-pack bundle includes 12 individual pigtails, each 2 meters in length, terminated with SC/UPC connectors on one end and bare fibres on the other. The pigtails are manufactured with OM4 multimode fibre (50/125 µm) and feature a duplex cable structure with LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces. Each pigtail is colour-coded for easy identification and organisation, with colours including Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Turquoise, Violet, White, and Yellow. Ideal for data centres, LAN, SAN, and high-speed networks.

Advantages

OM4 multimode fibre supports high bandwidth over longer distances compared to OM3. LSZH jacket ensures low smoke and zero halogen, making it safe for use in confined areas. Colour-coded pigtails simplify cable management and reduce installation errors. Low insertion loss (≤0.3 dB per connector pair) ensures minimal signal degradation.

Suitable for

• Data centres
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed data transmission up to 40 Gbps and beyond
• Fibre optic patching and termination in structured cabling

Key specifications

• Cable Type: Fibre Optic Pigtail
• Fibre Type: Multimode OM4
• Core/Cladding Diameter: 50/125 µm
• Length: 2 m
• Connector: SC/UPC
• Number of Fibres: 2 (duplex)
• Jacket Material: LSZH
• Jacket Colour: Black (cable), coloured boots
• Insertion Loss: ≤0.3 dB per connector pair
• Return Loss: ≥30 dB (Multimode UPC)
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Attenuation (850 nm): ≤3.0 dB/km
• Attenuation (1300 nm): ≤1.0 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, use with OM4-rated patch panels and transceivers. Ensure proper cleaning of connectors before installation. This product is part of a 12-pack; each pigtail is individually colour-coded for easy identification.
