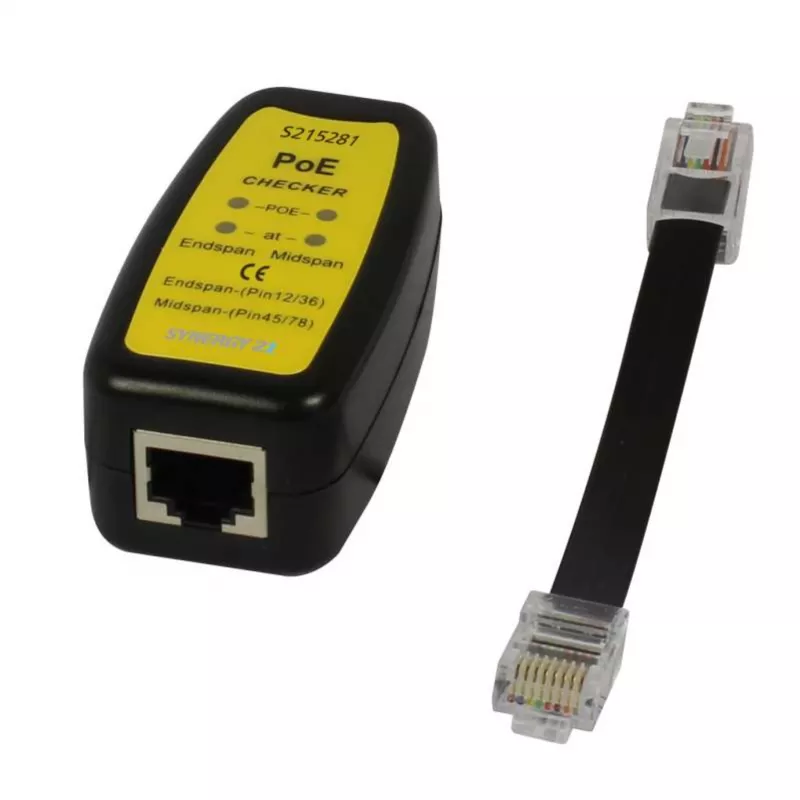

Synergy 21 TP RJ45 PoE tester at/af Endspan/Midspan štandard

The Synergy 21 TP RJ45 PoE Tester is a compact and reliable tool designed for network professionals to verify Power over Ethernet (PoE) availability and standards on RJ45 cabling. It supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, detecting power delivery from endspan (Mode A) and midspan (Mode B) sources. With clear multi-color LED indicators, it shows power presence, polarity, and mode, making it ideal for installation, troubleshooting, and maintenance of PoE networks.

Advantages

This PoE tester offers quick and accurate detection of PoE power, saving time during network deployments. Its compact design and LED indicators provide immediate visual feedback, eliminating the need for complex setups. The device is passive, drawing power from the source under test, so no batteries are required. It is compatible with all standard PoE switches, injectors, and powered devices, ensuring broad applicability.

Suitable for

• Network installers and technicians verifying PoE availability on new or existing cabling
• IT professionals troubleshooting PoE-powered devices such as IP cameras, VoIP phones, and wireless access points
• Maintenance teams checking PoE injectors and switches for proper operation

Key specifications

• Product Type: PoE Tester
• Connector: RJ45
• Supported PoE Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
• PoE Power Mode Detection: Endspan (Mode A), Midspan (Mode B)
• Power Pair Detection: Data pairs (Pins 1/2, 3/6) for Mode A; Spare pairs (Pins 4/5, 7/8) for Mode B
• Polarity Indication: Yes (Positive/Negative for each mode)
• Voltage Indication: Presence detection (48-56V typical)
• Power Source: Passive (powered by PoE source)
• Indicators: Multi-color LED lights
• Housing Material: ABS Plastic
• Certifications: CE, RoHS
• Application: PoE network installation, troubleshooting, maintenance
• Compatibility: All standard PoE switches, injectors, and powered devices
• Display Type: LED indicators (no LCD screen)
• Input Port: 1x RJ45

Recommendations

For best results, use this tester on active PoE sources. The device is designed for indoor use and should be handled with care to avoid damage. Always verify compatibility with your network equipment before use.
