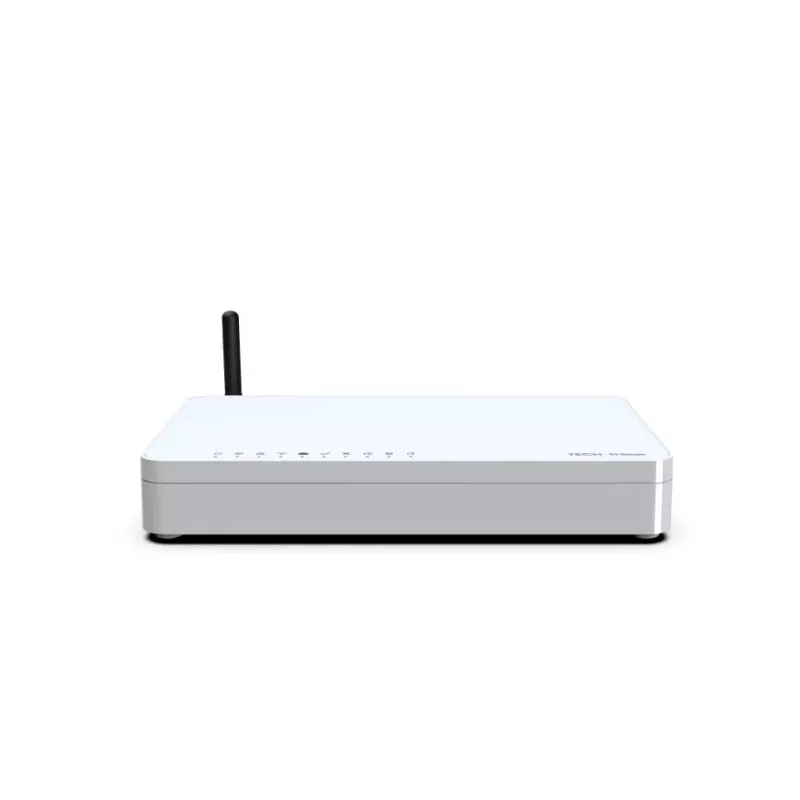

Tech Sterowniki Sinum EH-01 centrálna jednotka inteligentnej domácnosti, biela

The Tech Sterowniki Sinum EH-01 Smart Home Central Unit in white collects and processes information from external devices and actuator modules, allowing you to view and change their operating status from your home network or via CLOUD access. It enables the creation of automations, scenes and schedules based on connected devices and the data they collect. Communication between devices can be wired or wireless.

Key features

• Communication with Sinum devices and modules
• Collects and analyses data from external devices and modules
• Controls and changes the state of external devices and modules
• Local and remote access to the central unit via Ethernet or WiFi
• Supports schedules, automations and scenes for external devices and modules
• Collects and analyses statistics from connected devices and modules
• Status indication via LEDs on the housing
• 4 RS sockets for communication with TECH Sterowniki devices, including underfloor heating strips, installation controllers, recuperators, heat pumps
• 2 additional MODBUS inputs for controlling external devices
• 2 USB sockets and a micro SD card port for saving settings and retrieving device logs
• Operates in a local LAN network even without internet

Specifications

• Brand: TechniSat
• Product colour: White
• Model: EH-01
• Width: 190.7 mm
• Height: 30.2 mm
• Depth: 162.3 mm
• Power supply (constant voltage): 9-30 V
• Current consumption: 30 mA
• Operating temperature: 5° - 50 °C
• Communication: Ethernet, WiFi, 868 MHz, 4xTECH RS, 2x RS 485 MODBUS
