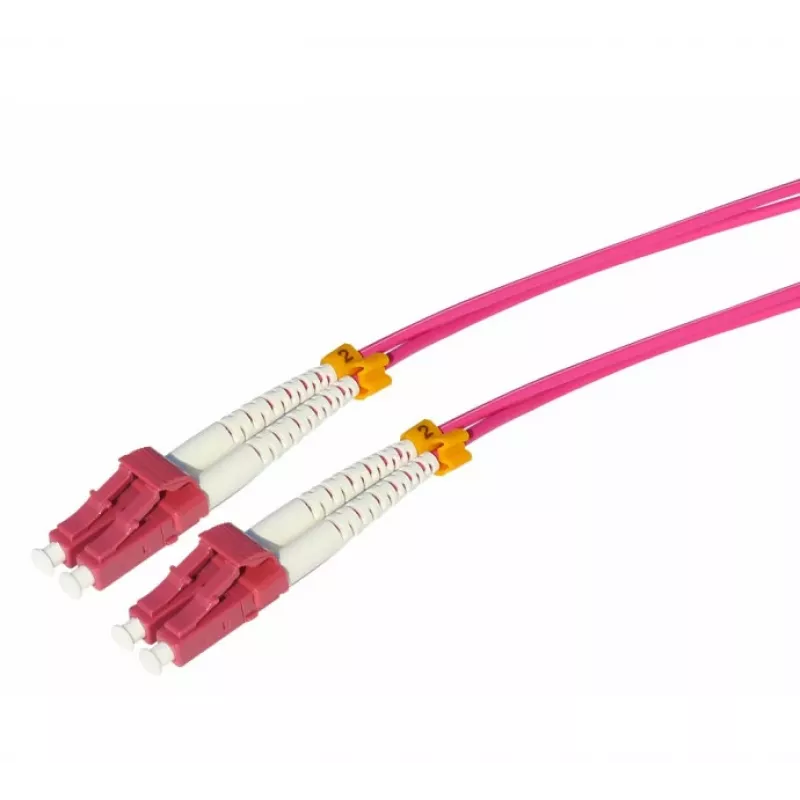

Tecline HD OM4 multimode LWL patch kábel, LC Duplex na LC Duplex, 50/125 µm, vresovofialová, 25 m 798LL25

Fiber optic patch cable for high-speed data networks, delivering 100 Gbps over 100 meters on OM4 multimode fiber. Pre-terminated with LC Duplex connectors on both ends, this 25-meter cable is ready for immediate deployment in data centers and enterprise LANs.

Advantages

OM4 fiber supports 100G Ethernet up to 100 meters, future-proofing your infrastructure. The LC Duplex connectors provide secure, low-loss connections, while the heather violet jacket allows easy identification of OM4 cabling.

Suitable for

• Data centers and server rooms
• Storage area networks (SANs)
• High-speed backbone links
• 10G/40G/100G Ethernet applications

Key specifications

• Fiber type: Multimode OM4, 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 25.0 m
• Jacket colour: Heather violet
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm

Recommendations

Use this cable for high-density patching in data centers, where OM4 performance and LC Duplex connectivity are required.
