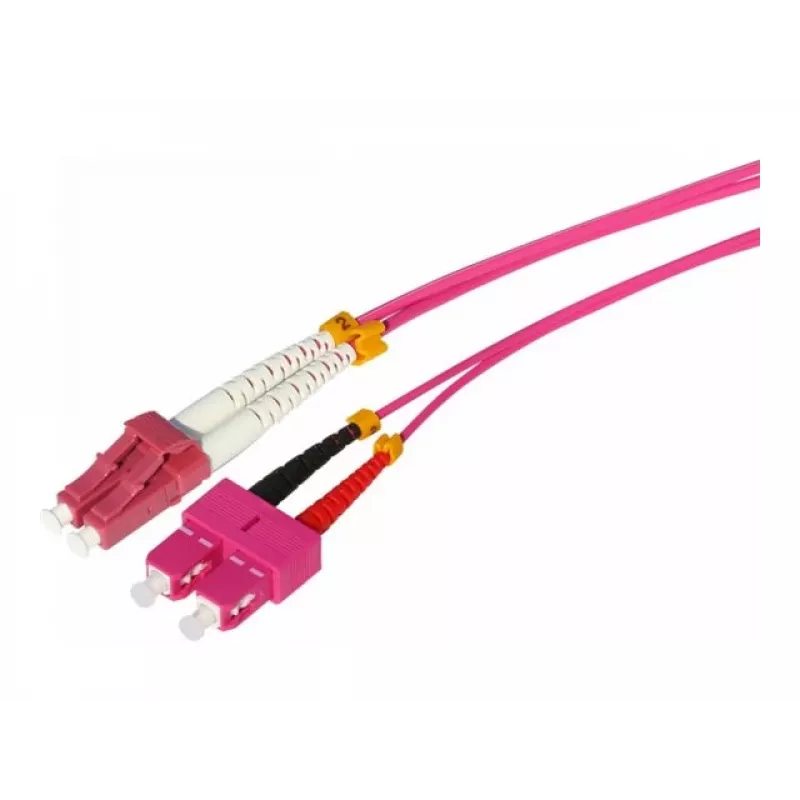

Tecline HD OM4 multimode LWL patch kábel, LC na SC Duplex, 50/125 µm, Erika fialová, 1,0 m 798LS01

High-density data centers and enterprise networks demand reliable, high-bandwidth fiber connections that minimize signal loss and maximize uptime. The Tecline HD OM4 Multimode Fiber Patch Cable delivers exactly that, with a 50/125 µm core and OM4 fiber class optimized for laser-based transmission. Its LC Duplex to SC Duplex connectors provide a secure, low-loss link between high-speed network equipment, patch panels, and distribution frames.

Who is it for

Network engineers, data center technicians, and IT professionals who need a dependable, high-performance multimode fiber patch cable for 10G, 40G, and 100G Ethernet applications. Ideal for backbone cabling, server-to-switch connections, and high-density patching environments.

Main features

• OM4 multimode fiber with 50/125 µm core/cladding diameter for extended reach at high data rates.
• LC Duplex to SC Duplex connectors for versatile connectivity.
• Erika violet jacket for easy identification and organization.
• LSZH (Low Smoke Zero Halogen) jacket material for enhanced fire safety.
• Duplex zipcord construction for easy separation and routing.
• Low insertion loss (≤ 0.3 dB typical) and high return loss (≥ 30 dB typical) for reliable signal integrity.

Specifications

• Fiber Type: Multimode
• Fiber Class: OM4
• Core/Cladding Diameter: 50/125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable Length: 1.0 m
• Jacket Color: Erika Violet
• Cable Construction: Duplex Zipcord
• Jacket Material: LSZH
• Modal Bandwidth (850 nm): 4700 MHz·km
• Modal Bandwidth (1300 nm): 500 MHz·km
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Attenuation (850 nm): ≤ 2.3 dB/km
• Attenuation (1300 nm): ≤ 0.6 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Installation): 30 mm
• Minimum Bend Radius (Long Term): 10 mm
• Standards Compliance: IEC 60793-2-10 Type A1a.3, TIA/EIA-568-C.3, ISO/IEC 11801

Tips

To maintain optimal performance, avoid exceeding the minimum bend radius during installation and use proper cable management to prevent stress on connectors. Clean connectors before each mating to prevent contamination and signal degradation.
