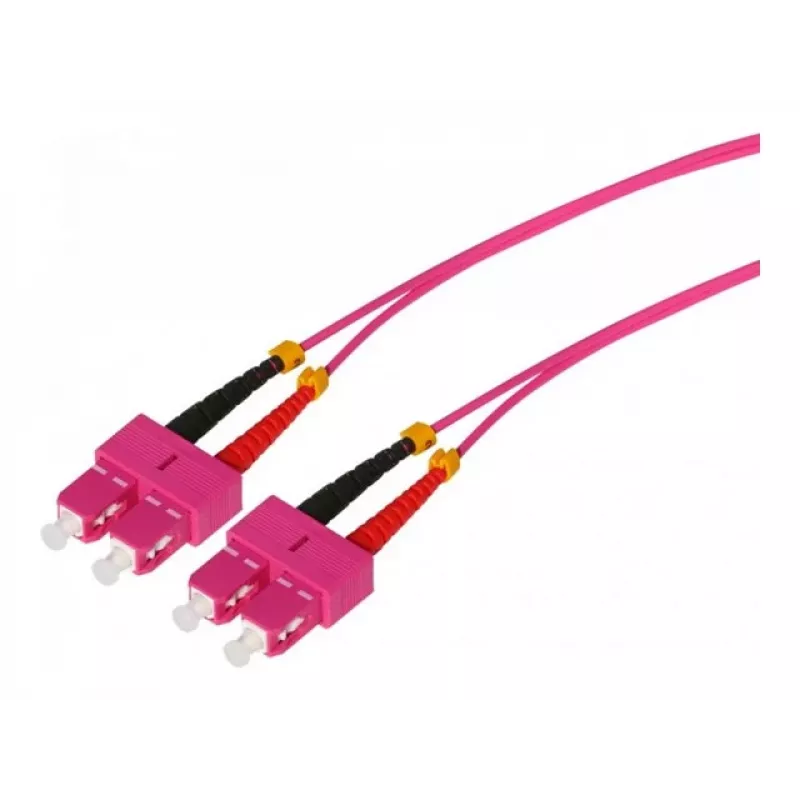

Tecline HD OM4 Multimode LWL patch kábel SC Duplex na SC Duplex, 50/125 µm, Heather Violet, 7,5 m 798SS07

High-speed fiber optic links in data centers and enterprise networks often suffer from signal loss and limited bandwidth when using outdated cabling. This Tecline HD patch cable eliminates those bottlenecks with OM4 multimode fiber, delivering the performance needed for 100 Gigabit Ethernet over short distances.

Who is it for

Network engineers and IT technicians who need a reliable, high-bandwidth connection between switches, servers, or storage systems. It is ideal for backbone links, server rooms, and high-density patching environments where space and performance are critical.

Main features

• OM4 multimode fiber with 50/125 µm core/cladding for extended reach at high data rates
• SC duplex connectors on both ends for secure, keyed connections
• Heather violet jacket for easy identification of OM4 cabling
• LSZH jacket material reduces toxic smoke and corrosive gases in case of fire
• Low insertion loss of less than 0.3 dB ensures minimal signal degradation
• Supports data rates up to 100 Gbps over short distances

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector A: SC Duplex
• Connector B: SC Duplex
• Cable length: 7.5 m
• Cable colour: Heather violet
• Number of fibers: 2
• Jacket material: LSZH
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Maximum data rate: 100 Gbps
• Insertion loss: < 0.3 dB
• Return loss: > 20 dB
• Operating temperature: -20°C to +70°C

Tips

Use this cable for 10G, 40G, or 100G Ethernet connections up to 150 meters at 10G, or shorter distances at higher speeds. Always inspect connectors for dust before installation and use dust caps when not in use.
