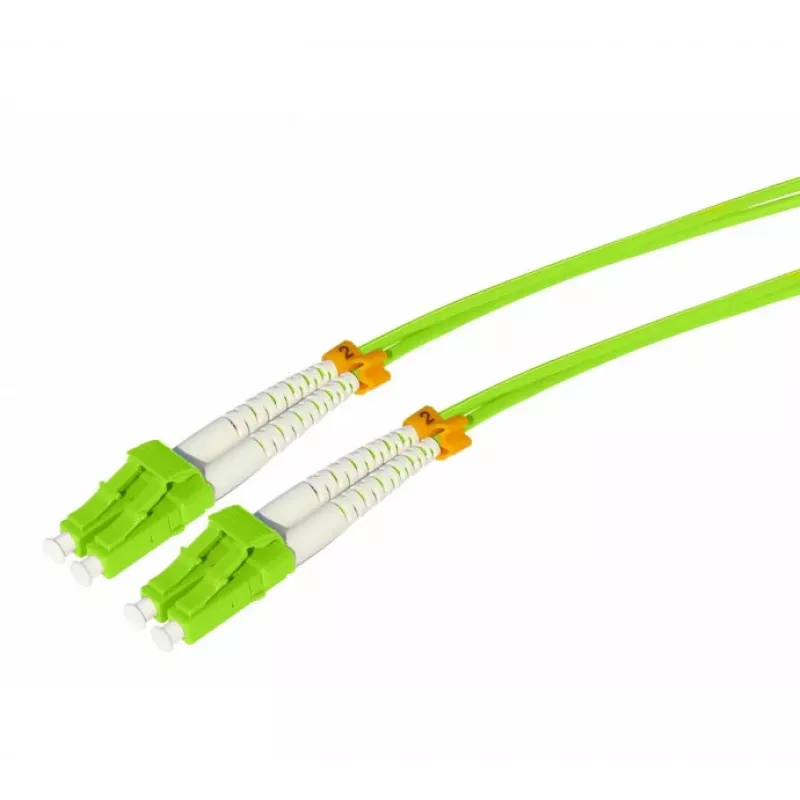

Tecline HD OM5 Multimode LWL patch kábel LC Duplex na LC Duplex, 50/125 µm, limetkovo zelená, 2,0 m 796LL02

Built for high-speed data centers and enterprise backbones, this Tecline HD patch cable pairs OM5 multimode fiber with lime green LSZH jacketing—so you get wideband multimode performance and instant port identification in dense racks. Unlike standard OM3/OM4 assemblies, the OM5 core supports short-wavelength division multiplexing across 850 nm and 953 nm, making it ready for 100G, 200G, and 400G Ethernet links over duplex LC infrastructure.

Highlights

• OM5 wideband multimode fiber (50/125 µm) for SWDM applications
• LC Duplex to LC Duplex connectors with UPC polish
• Lime green LSZH jacket for low smoke and halogen-free operation
• 2.0 m length ideal for patching within racks and adjacent cabinets
• Supports 10G/25G/40G/100G/200G/400G Ethernet protocols

In daily use

The duplex design keeps transmit and receive fibers together, simplifying polarity management in structured cabling. Maximum insertion loss of 0.3 dB per connector and minimum return loss of 30 dB maintain signal integrity across short-reach links. The LSZH jacket reduces toxic smoke and corrosive gas emissions in the event of fire, meeting the requirements of EN 50173-1 and ISO/IEC 11801 installations.

Full specifications

• Fiber type: Multimode OM5, 50/125 µm core/cladding
• Connectors: LC Duplex to LC Duplex, UPC polish
• Cable length: 2.0 m
• Cable colour: Lime green
• Number of fibers: 2
• Wavelength support: 850 nm, 953 nm
• Maximum bandwidth: 4700 MHz·km @ 850 nm, 2470 MHz·km @ 953 nm
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Supported protocols: 10G/25G/40G/100G/200G/400G Ethernet
• Duplex mode: Full-duplex
• Standards compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1
• Application environment: Data center, enterprise network, SAN

Final note

For high-density fiber patching where future-proofing matters, this OM5 cable delivers the bandwidth headroom and safety characteristics modern networks demand.
