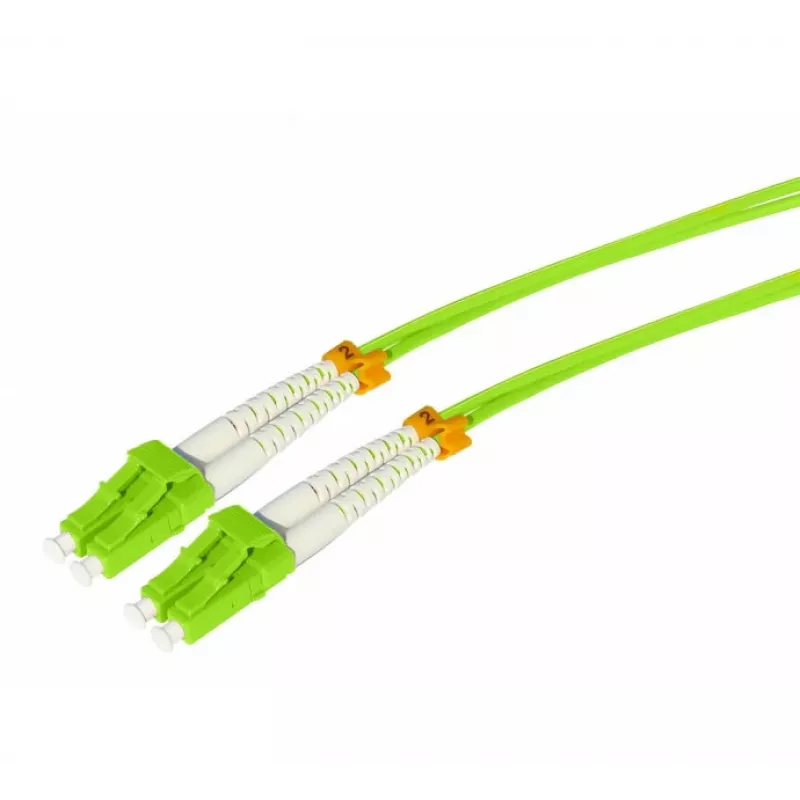

Tecline HD OM5 multimódový optický patch kábel, LC duplex na LC duplex, 50/125 µm, limetkovozelená, 1,0 m 796LL01

This Tecline HD patch cable stands out with OM5 wideband multimode fiber, supporting short-wavelength wavelength division multiplexing (SWDM) for higher data rates over existing multimode infrastructure. Its lime green jacket provides instant identification among standard OM3/OM4 cables.

Highlights

• OM5 fiber supports 100G, 200G, and 400G Ethernet over short distances
• LC duplex connectors with PC/UPC polish for low insertion loss
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• 1.0 m length ideal for patching in high-density data centers

In daily use

The 50/125 µm core/cladding diameter ensures compatibility with standard multimode transceivers. With a typical insertion loss below 0.3 dB and return loss above 30 dB, this cable maintains signal integrity in demanding network environments. The lime green color allows quick identification of OM5 links, reducing the risk of mismatched fiber types.

Full specifications

• Fiber type: OM5 multimode
• Core/cladding diameter: 50/125 µm
• Connector A: LC Duplex
• Connector B: LC Duplex
• Cable length: 1.0 m
• Jacket color: Lime green
• Jacket material: LSZH
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Supported wavelengths: 850 nm, 953 nm
• Effective modal bandwidth @ 850 nm: 4700 MHz·km
• Effective modal bandwidth @ 953 nm: 2470 MHz·km
• Operating temperature: -20°C to 70°C
• Standards compliance: TIA-492AAAE, IEC 60793-2-10 Type A1a.4

Final note

Choose this Tecline OM5 cable for future-ready multimode connectivity with a distinctive lime green jacket.
