Tecline HD Singlemode OS2 sklenené vlákno patch kábel, LC Duplex na LC Duplex, 0,5 m, žltá 799LL00

With a 9/125 µm singlemode OS2 fibre core, this Tecline HD patch cable delivers low insertion loss (≤ 0.3 dB) and high return loss (≥ 50 dB) for reliable high-speed optical links up to 100 Gigabit Ethernet.

Overview

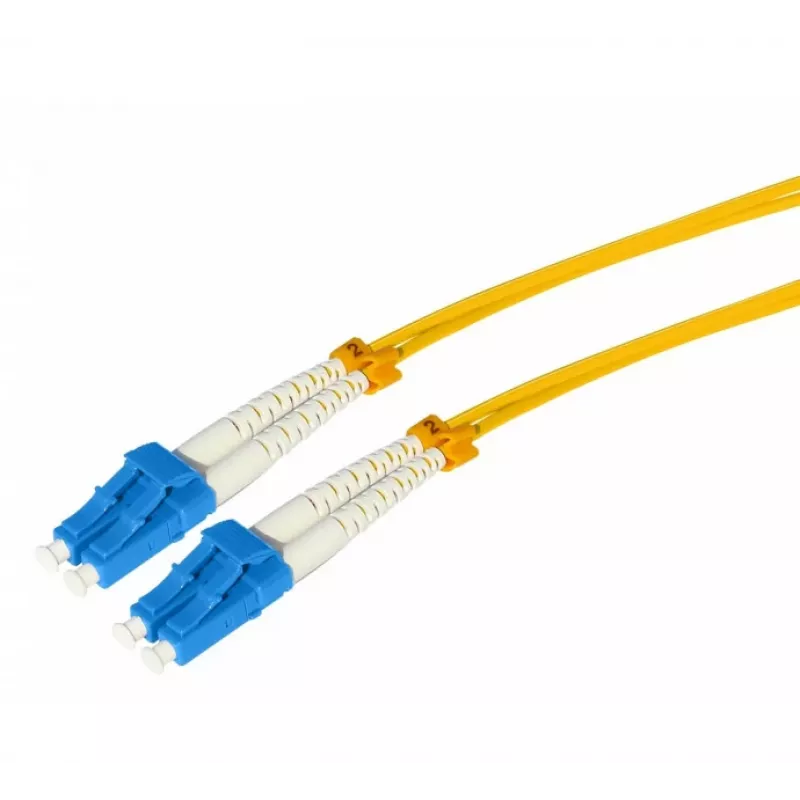

The Tecline 799LL00 is a duplex fibre optic patch cable terminated with LC Duplex connectors on both ends. Its yellow LSZH jacket and 0.5 m length make it ideal for patching in data centres, telecommunication rooms, and FTTx applications.

What stands out

• Singlemode OS2 fibre supports 1310 nm and 1550 nm wavelengths for long-distance transmission.
• LC Duplex connectors with UPC polish ensure low insertion loss and high return loss.
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire.
• Compact 0.5 m length reduces slack and improves cable management in high-density panels.

Technical details

• Fibre type: 9/125 µm singlemode OS2
• Connectors: LC Duplex to LC Duplex, UPC polish
• Length: 0.5 m
• Jacket colour: Yellow
• Jacket material: LSZH
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Supported wavelengths: 1310 nm, 1550 nm
• Compatibility: 10GbE, 40GbE, 100GbE
• Standards: IEC 60793, TIA/EIA-568-C.3, RoHS

Our verdict

A dependable singlemode patch cord for high-speed backbone connections, offering excellent optical performance in a short, manageable length.
