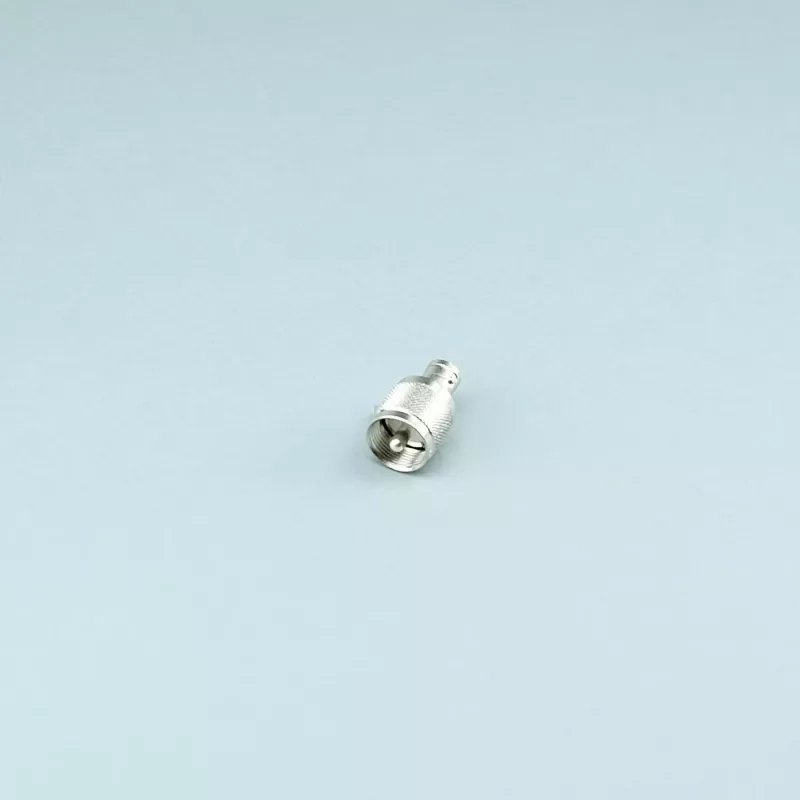

Telegärtner BNC konektor samica na UHF konektor samec koaxiálny adaptér J01008A0801

Connecting a BNC-equipped device to a UHF-terminated cable often forces you to replace connectors or build a custom pigtail. The Telegärtner J01008A0801 solves this with a single, precision-machined adapter that converts a BNC jack to a UHF plug in-line, preserving the 50 Ω impedance your RF signal chain expects.

Who is it for

RF technicians, amateur radio operators, and broadcast engineers who need a reliable transition between BNC and UHF interfaces without modifying existing cables or equipment.

Main features

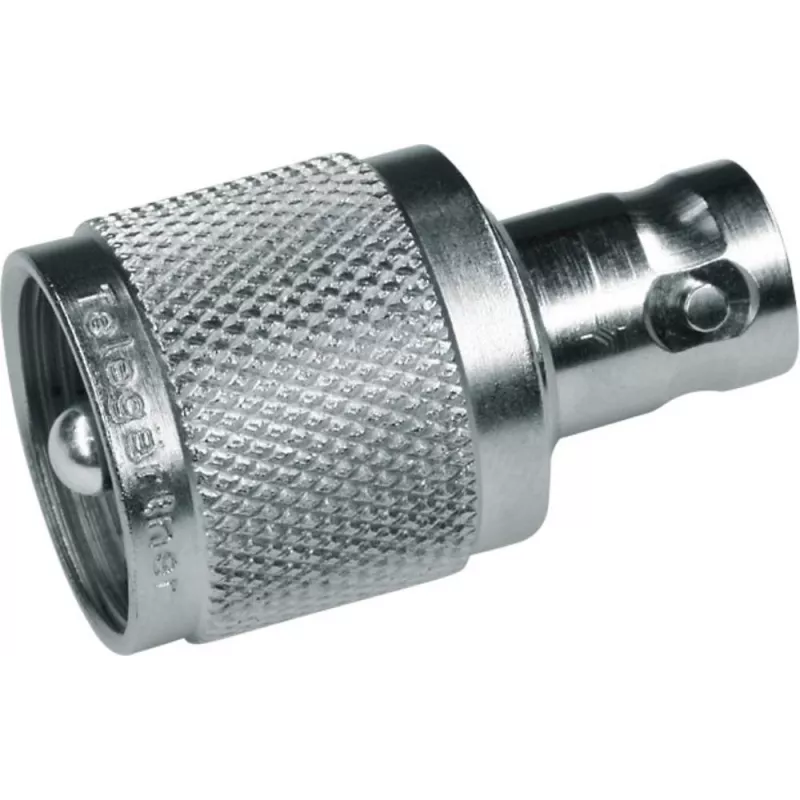

• BNC female (jack) to UHF male (plug) straight adapter
• 50 Ω impedance for consistent signal integrity
• Frequency range DC to 1 GHz with VSWR ≤ 1.3 at 1 GHz
• Nickel-plated brass body for durability and corrosion resistance
• Gold-plated BNC center contact and silver-plated CuBe UHF center contact
• PTFE insulator for low loss and high temperature stability
• Operating temperature -40 °C to +85 °C
• Dielectric withstanding voltage 1500 Veff
• Insulation resistance ≥ 5 GΩ

Specifications

• Connector 1: BNC female (jack)
• Connector 2: UHF male (plug)
• Impedance: 50 Ω
• Frequency range: DC - 1 GHz
• VSWR (max): 1.3 @ 1 GHz
• Body material: Brass, nickel-plated
• Center contact BNC: Brass, gold-plated
• Center contact UHF: CuBe, silver-plated
• Insulator material: PTFE
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Operating temperature: -40 °C to +85 °C

Tips

For best performance, ensure both mating connectors are clean and properly seated. The adapter is straight-bodied, so allow adequate clearance in tight installations. Use torque wrenches if available to avoid over-tightening the UHF coupling nut.
