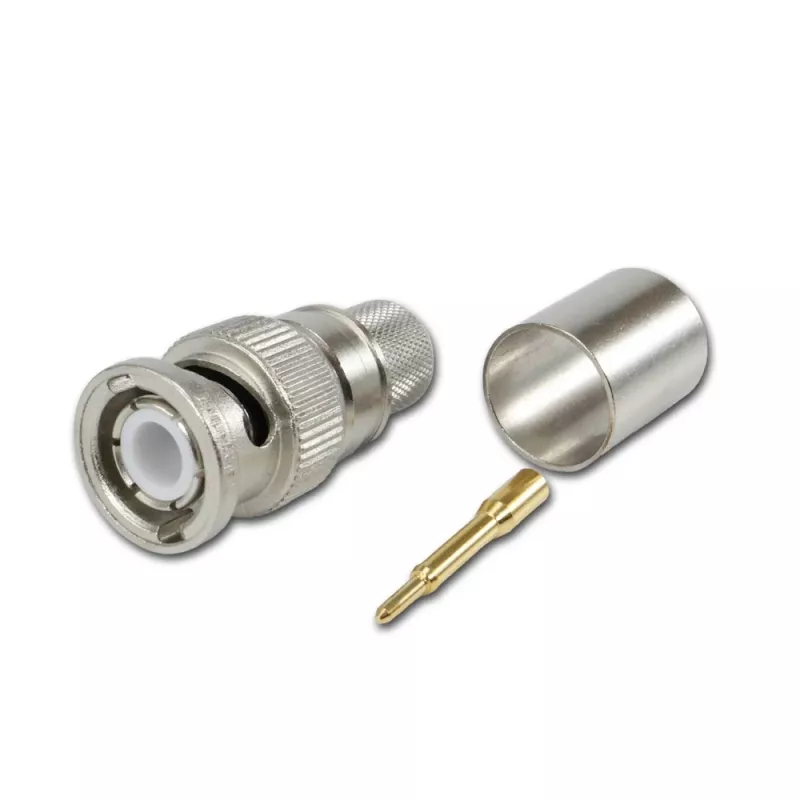

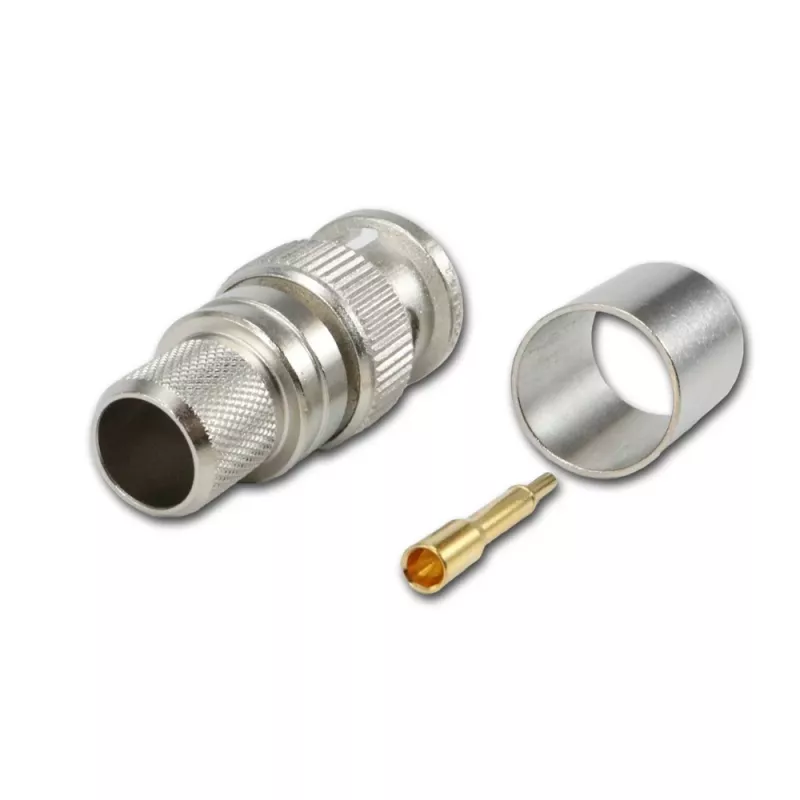

Telegärtner BNC krimpovací konektor samec pre RG214/U & RG393/U, 50 Ohm, 1 ks J01000A0060

RF technicians and installers working with RG214/U or RG393/U coaxial cable use this BNC plug to terminate cables with a reliable crimp connection. The 50 Ohm impedance matches standard RF systems, and the nickel-plated brass body with gold-plated center contact ensures durable signal transfer.

Key specifications

• Connector type: BNC male (plug)
• Impedance: 50 Ohm
• Compatible cables: RG214/U, RG393/U
• Termination: Crimp
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V RMS
• Body material: Brass, nickel plated
• Center contact: Brass, gold plated
• Insulator: PTFE
• Operating temperature: -55°C to +155°C

Why choose it

The crimp termination provides a secure, gas-tight connection that resists vibration and pull-out. PTFE insulation maintains stable impedance over a wide temperature range, making it suitable for demanding RF environments.

Ideal use cases

• Terminating RG214/U or RG393/U cables in RF test setups
• Building custom coaxial assemblies for communications equipment
• Replacing worn BNC connectors on existing cables

Good to know

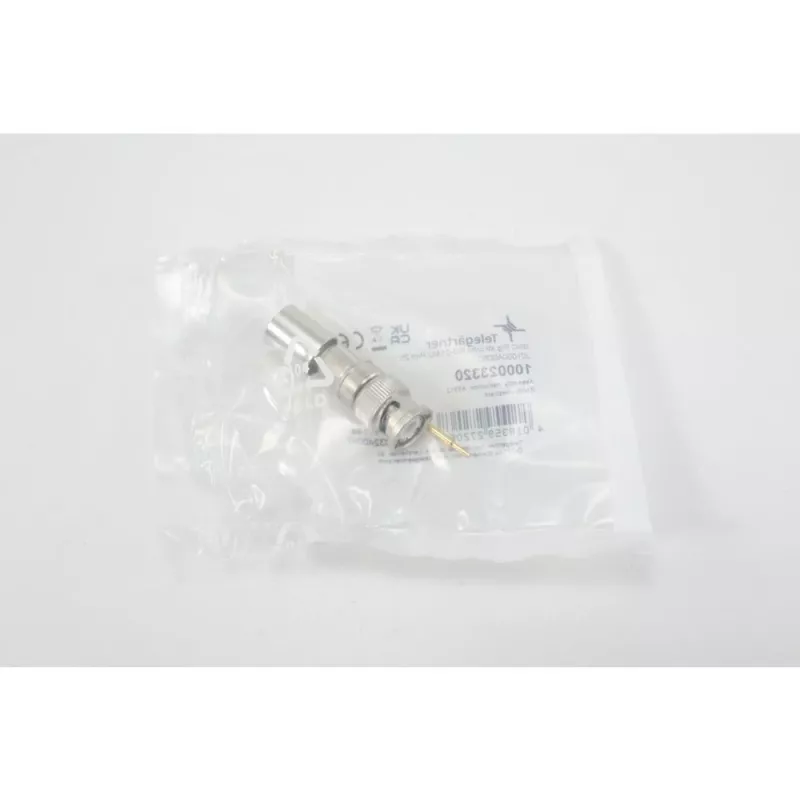

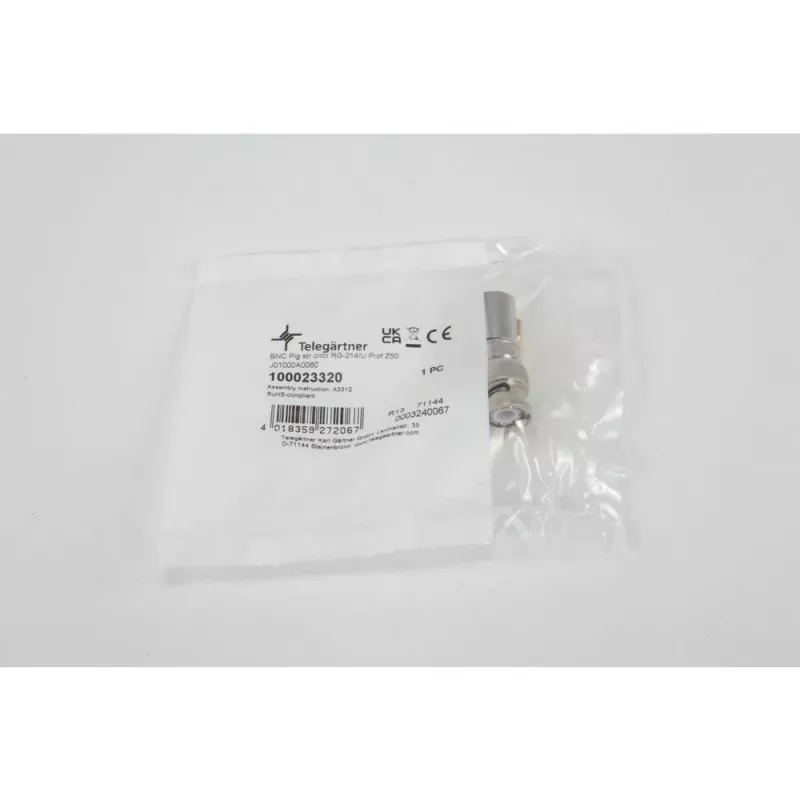

Sold as a single piece. Crimp tooling and dies for RG214/U or RG393/U are required for installation.
