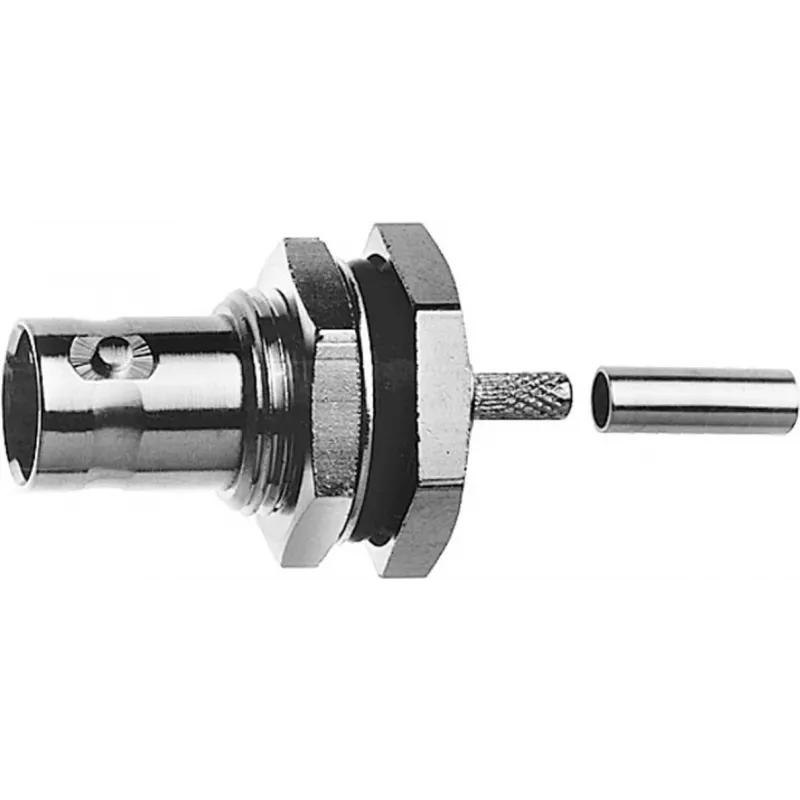

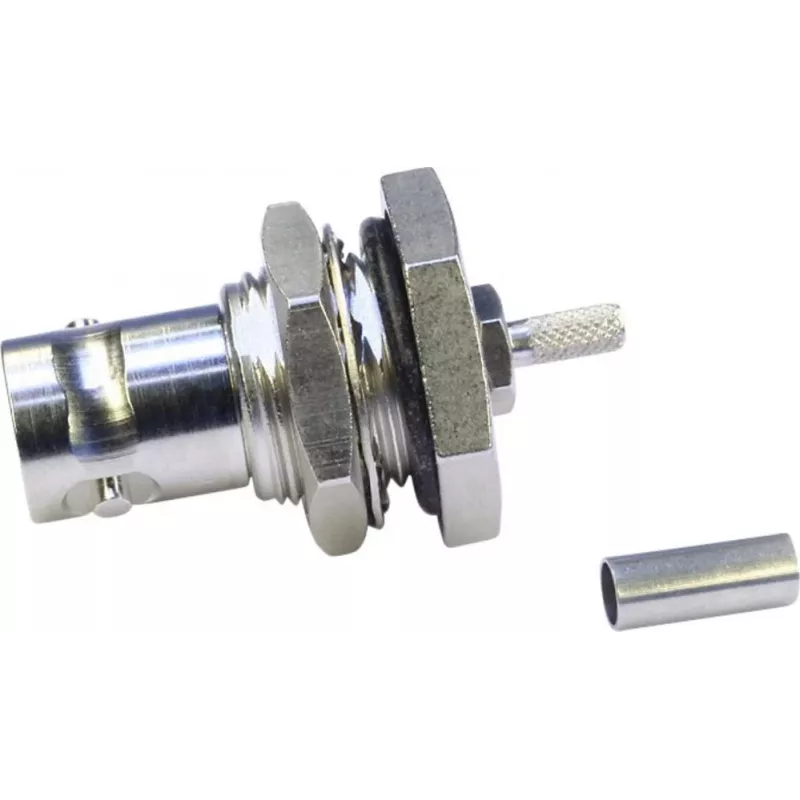

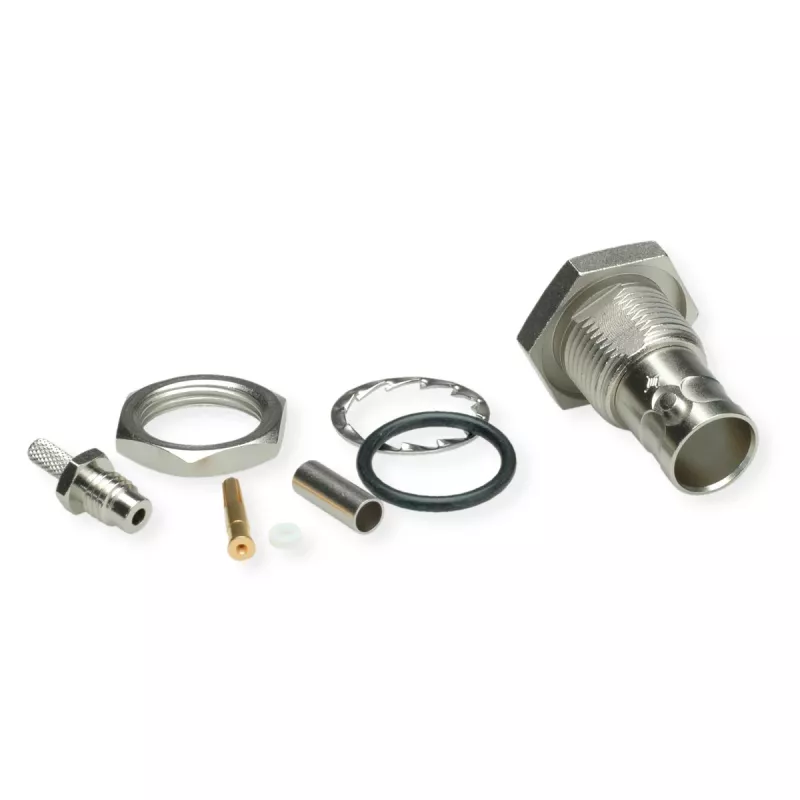

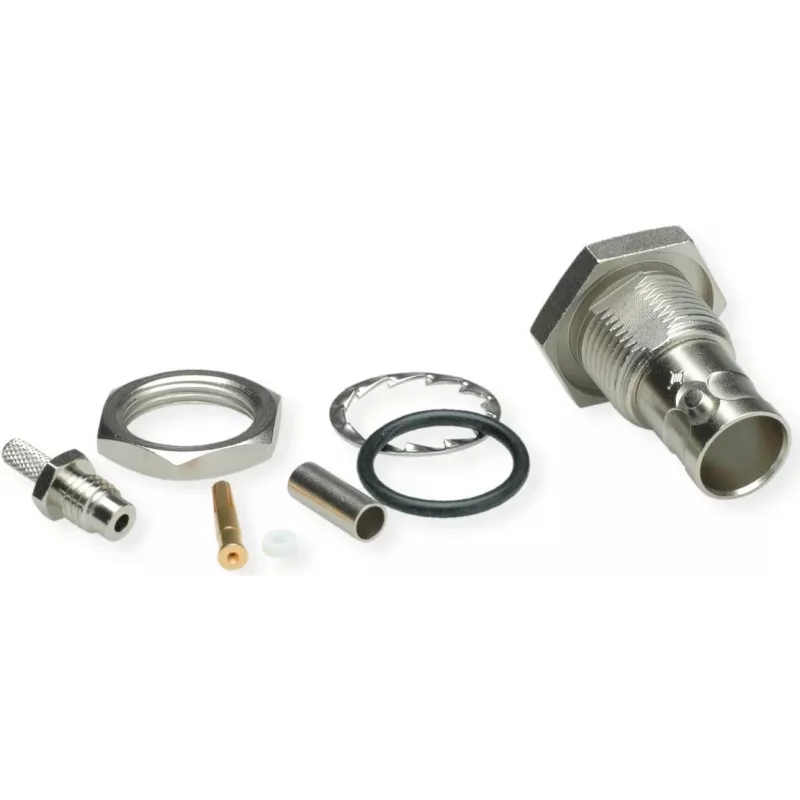

Telegärtner BNC zásuvka na zabudovanie crimp konektor 75 Ohm pre RG-179 B/U, G04

When terminating thin coaxial cables like RG-179 B/U in tight equipment panels, a reliable bulkhead connector is essential. This Telegärtner BNC jack provides a secure crimp connection and a panel-mount solution for 75-ohm RF applications.

Who is it for

Installers and technicians working on broadcast, video, or telecommunications equipment that requires a female BNC port on a chassis or panel.

Main features

• BNC jack (female) with bulkhead mounting
• 75 ohm impedance for video and RF signals
• Crimp termination for RG-179 B/U cable (G04 group)
• Gold-plated center contact and nickel-plated brass body
• PTFE dielectric for stable performance

Specifications

• Impedance: 75 Ohm
• Frequency range: DC to 3 GHz
• Return loss: >20 dB up to 1 GHz
• Voltage rating: 500 Vrms
• Insulation resistance: >5 GΩ
• Durability: 500 mating cycles
• Operating temperature: -40°C to +85°C

Tips

Use a proper crimp tool for RG-179 B/U and ensure the cable is stripped to the correct dimensions for a reliable connection.
