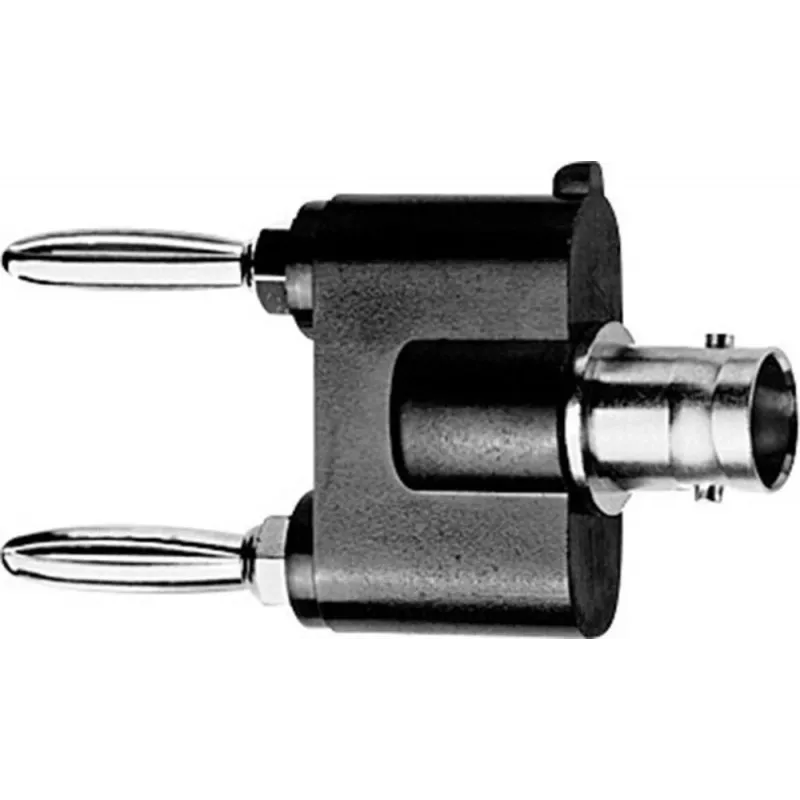

Telegärtner merací adaptér BNC konektor samica na 4 mm banánový konektor samec, čierny/strieborný J01008A0620

The Telegärtner J01008A0620 measuring adapter bridges laboratory equipment with BNC sockets and standard 4 mm banana jacks. Its dual banana plug arrangement accepts both shrouded and unshrouded leads, while the nickel-plated brass contacts maintain consistent signal integrity during bench measurements.

Highlights

• BNC female to dual 4 mm banana plugs
• Rated for 500 V CAT II and 10 A
• Nickel-plated brass contacts
• Polyamide insulation
• Black and silver finish

In daily use

Connect the BNC socket to an oscilloscope or function generator, then insert 4 mm banana leads into the plugs for quick, secure test point access. The adapter's compact body keeps connections stable on crowded workbenches, and the operating range of -25 °C to +70 °C suits both lab and field environments.

Full specifications

• Connector 1: BNC female
• Connector 2: 2 × 4 mm banana plug, male
• Maximum voltage: 500 V (CAT II)
• Maximum current: 10 A
• Contact material: Brass, nickel-plated
• Insulation material: Polyamide (PA)
• Operating temperature: -25 °C to +70 °C

Final note

A reliable adapter for integrating BNC instruments with banana-style test leads, built with quality materials for consistent performance.
